Basler L304kc User Manual

Operation and Features
3-12 BASLER L304kc
Draft
Let’s consider a single, small area on an object passing the camera and let’s call it point A. Figure
3-10 illustrates that as the object passes the camera, point A will fall into the line of view of the
green line, of the red line, and of the blue line at three different times. This means that the green
information for point A, the red information for point A, and the blue information for point A will be
captured during three different exposures. So in order to get full RGB information for point A, we
must combine information from three different exposures. The need to combine information from
three different exposures to get full color information for a particular point on the object is known
as spatial correction.

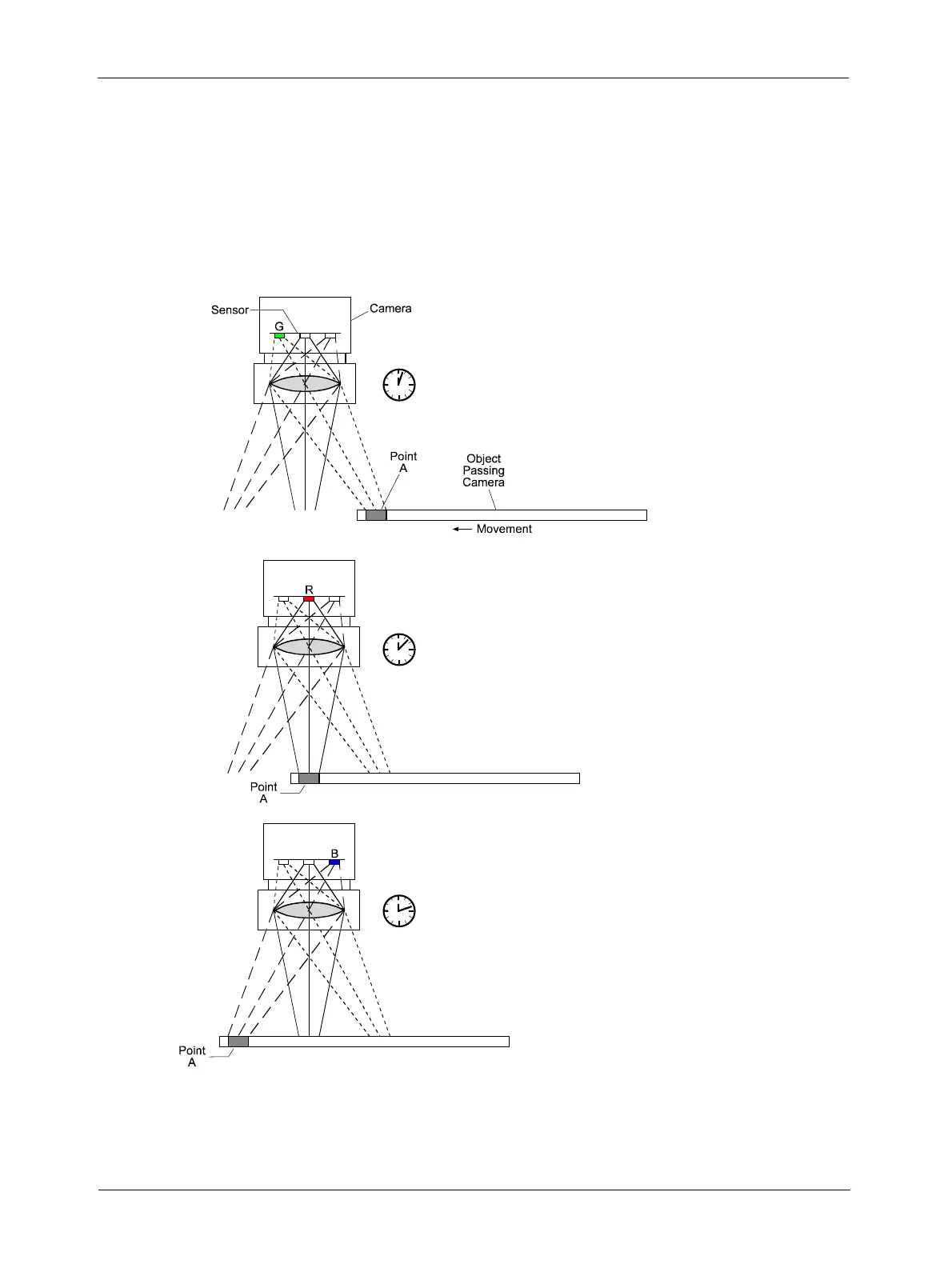

Figure 3-10: A Single Point Captured on Three Different Exposures
