Operation and Features
BASLER L304
kc 3-53
Draft

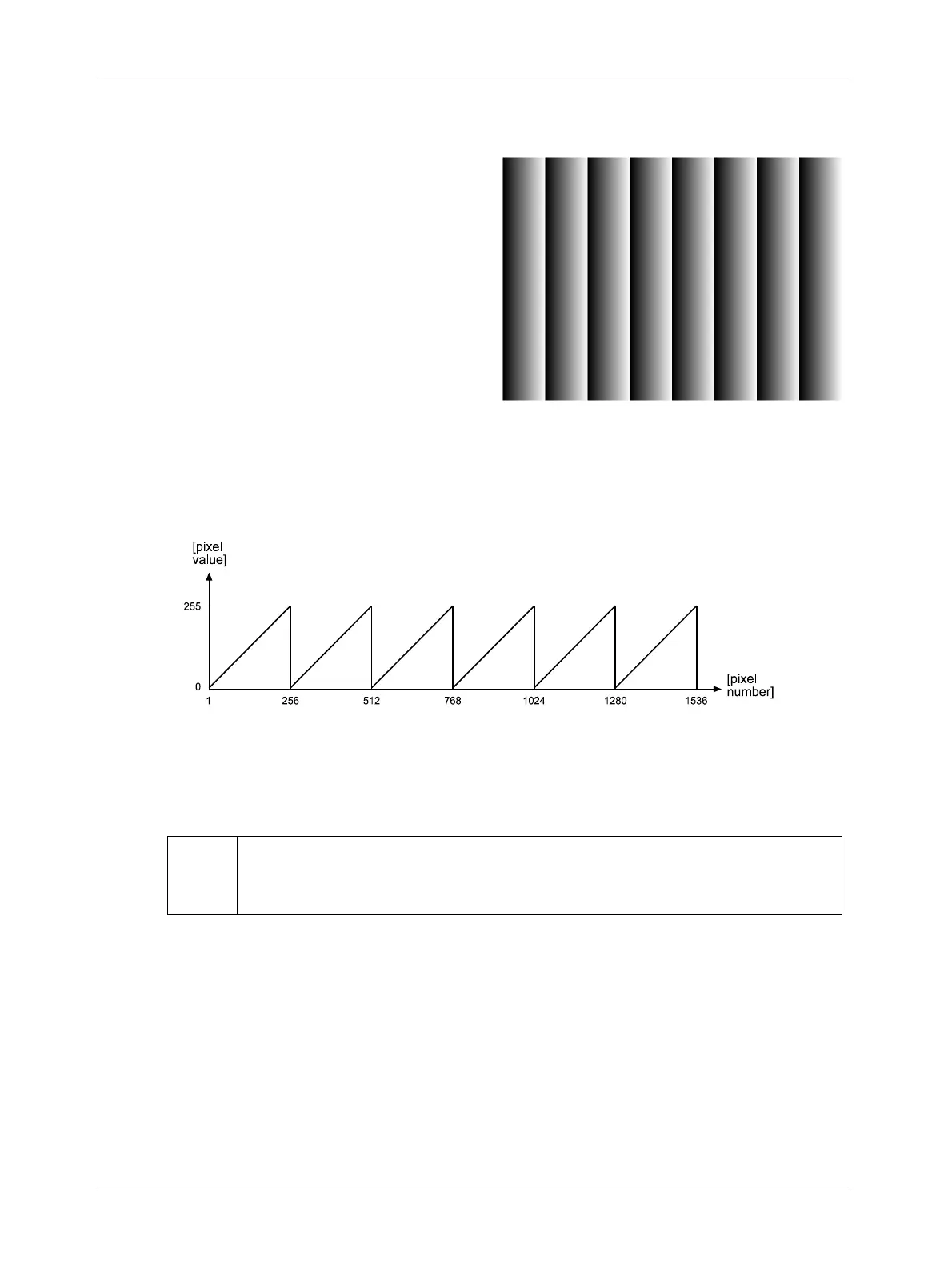

3.11.3 Test Image One (Fixed Gray Gradient)
Test image one is formed with a vertical gra-
dient that ranges from 0 to 255 and repeats
every 256 pixels as shown in Figure 3-29.
The first pixel in each line has a red value of
0, a green value of 0 and a blue value of 0.
The second pixel has a red value of 1, a
green value of 1 and a blue value of 1. The
third pixel has a red value of 2, a green
value of 2 and a blue value of 2, and so on.
Test image one is useful for checking the in-
tegrity of the data transmitted by the cam-
era. If you capture lines and examine the
pixel values in the captured lines, the values
should be exactly as described above.
Figure 3-29: Formation of Test Image One
L
The description of the pixel values in test image one is only valid when the camera
is set for 8 bit output. If the camera is set for 10 bit output, the gradients range from
0 to 1023 and repeat every 1024 pixels.
Figure 3-28: Test Image One
