Sine cosine
en-
coder evaluation
Hiperface
®
The Sine cosine encoder evaluation is provided with a Hiperface
®
-interface.
The encoders, which meet the following technical specifications, can be used:
Voltage supply 10 V
DC
Signal level Hiperface
®
- specification of the process data channel
(~1 V
SS
; REFSIN/REFCOS 2.5V)
Current input Max. 250 mA

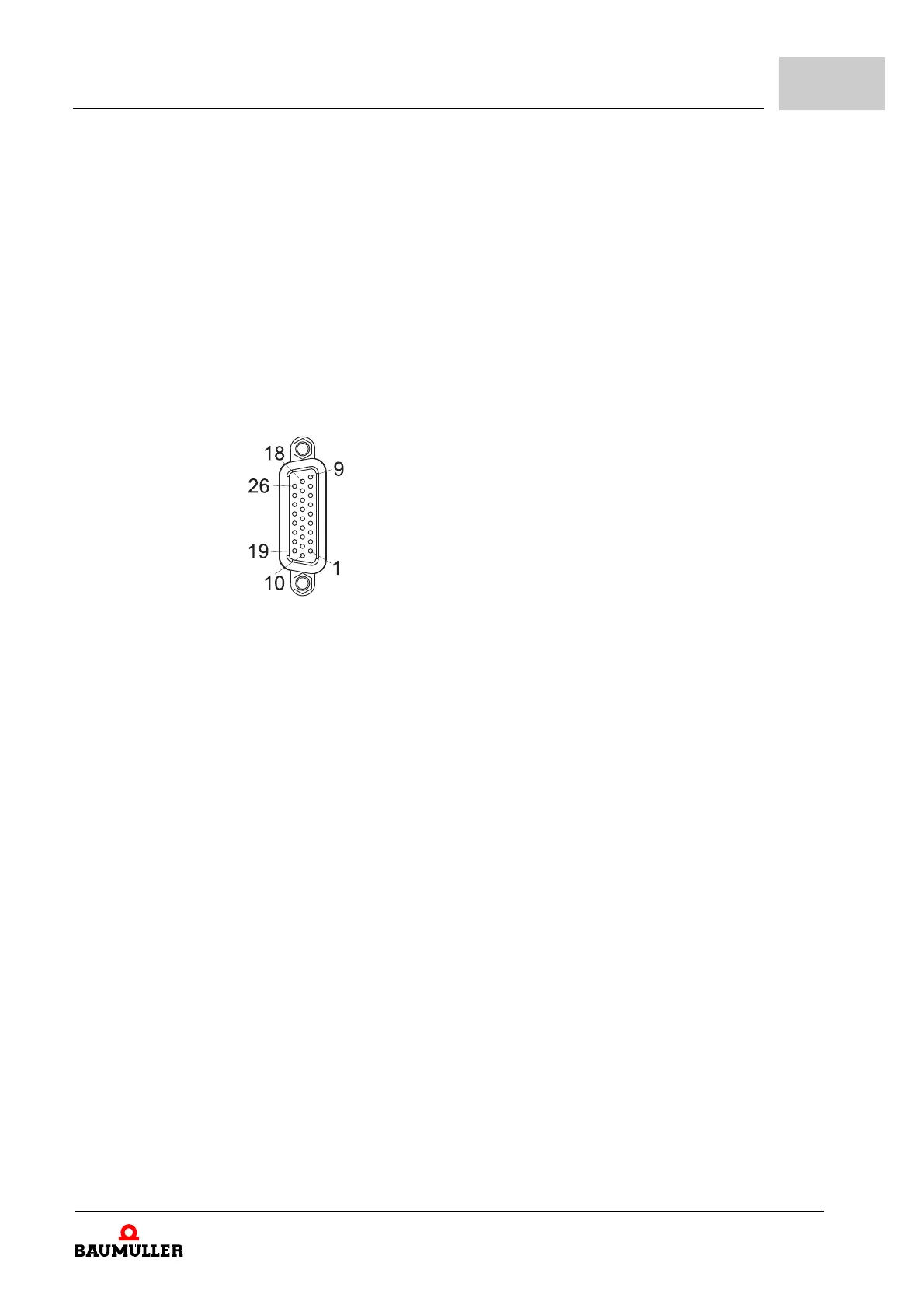

Sub-D-connector
26-pole
1 GND encoder supply
2 +10 V encoder supply
3 Reserved *
4 COS +
5 COS -
6 SIN +
7 SIN -
8 Reserved *
9 Reserved *
10 Reserved *
11 Reserved *
12 Reserved *
13 Reserved *
14 Reserved *
15 Reserved *
16 Reserved *
17 Temperature +
18 Temperature -
19 RS485 Data +
20 RS485 Data -
21 Reserved *
22 Reserved *
23 Reserved *
24 Reserved *
25 Reserved *
26 Reserved *
* do not occupy
