Installation
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10
211
of 314
7
Encoder evalua-
tion with 
EnDat
®
2.2
The encoders, which meet the following technical specifications, can be used:
Voltage supply 5 V
DC
controlled
Signal level ~1 V
SS
Current input Max. 250 mA

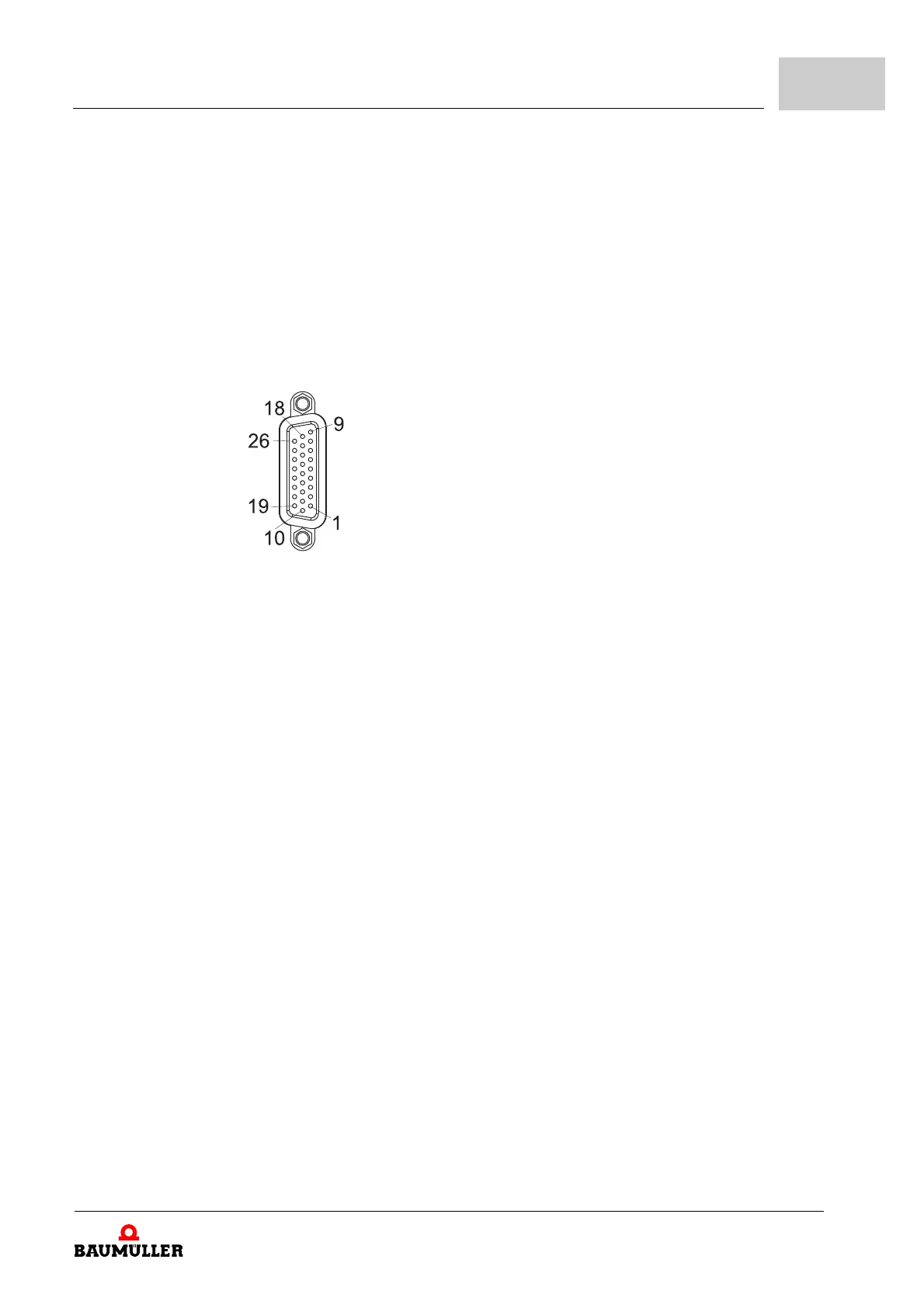

D-sub-connector
26-pin
1 GND encoder supply
2 +5 V encoder supply
3 Clock+
4 Reserved *
5 Reserved *
6 Reserved *
7 Reserved *
8 Reserved *
9 Reserved *
10 Reserved *
11 Sense GND
12 Sense Vcc
13 Clock-
14 Reserved *
15 Reserved *
16 Reserved *
17 Reserved *
18 Reserved *
19 Data +
20 Data -
21 Reserved *
22 Reserved *
23 Reserved *
24 Reserved *
25 Reserved *
26 Reserved *
* do not occupy
