Baumuller b maXX 5500 - Page 213

Installation
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10
213
of 314
7
Encoder evalua-
tion with
Hiperface DSL
®
The encoders, which meet the following technical specifications, can be used:
Signal level Hiperface DSL
®
Current input Max. 250 mA

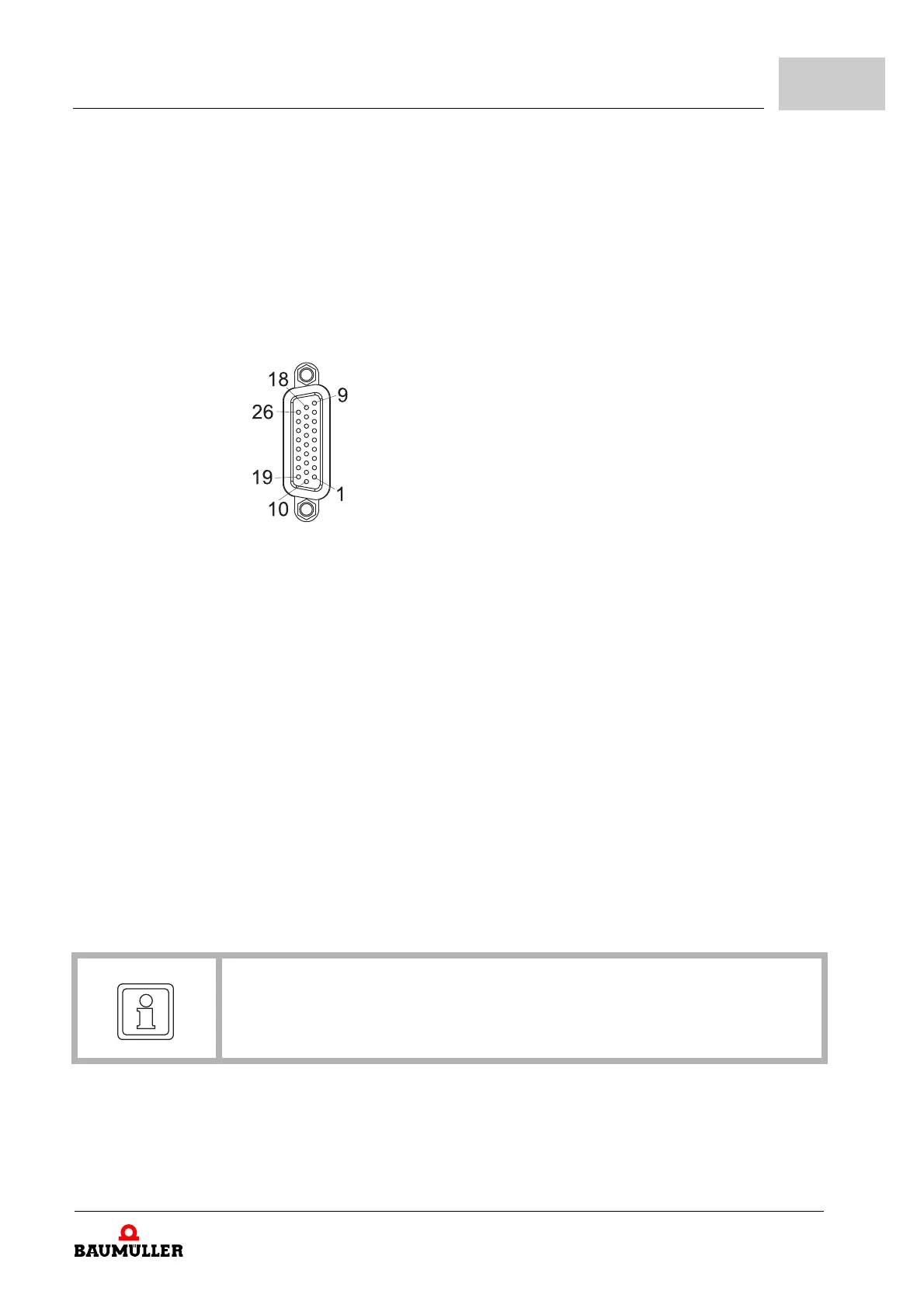

D-sub-connector
26-pin
1 GND encoder supply
2 10 V encoder supply
3 Reserved *
4 Reserved *
5 Reserved *
6 Reserved *
7 Reserved *
8 Reserved *
9 Reserved *
10 Reserved *
11 Reserved *
12 Reserved *
13 Reserved *
14 Reserved *
15 Reserved *
16 Reserved *
17 Reserved *
18 Reserved *
19 DSL-
20 DSL+
21 Reserved *
22 Reserved *
21 Reserved *
22 Reserved *
23 Reserved *
24 Reserved *
25 Reserved *
26 Reserved *
* do not occupy
NOTE!
The use of the standard accessory connector included in the accessory kit 
HIPERFACE DSL
®
(part No. 460219) is required.
