2.6 Wall Bracket (Optional Accessories)
The optional wall holder bracket is used as
Charging station (only with rechargable battery operation).
The LB 134 turns on automatically when the PSU is con-
nected to the wall bracket and to mains. The charging pro-
cess takes place only when the unit is (still) turned on and
when Accu is set as Cell type in the menu Parame-
ter/Power Supply!
Stationary application. The wall bracket is designed such
that the monitor is about 3 cm from the wall. Measurements
can be carried out in the battery or rechargeable battery
mode. We recommend working with the device with re-
chargeable batteries and the PSU connected (see charging
station).
Scope of delivery The delivery comprises the wall bracket and one set of dowels
and screws 4 mm in diameter. These dowels and screws
should be adequate for most walls. Other dowels/screws may
have to be used depending on the type of wall. The spacing of
the drilled holes for fixing the wall bracket is 85 mm.
Wall bracket (with mounting holes 5 mm in diameter)
Charging contacts PSU connector

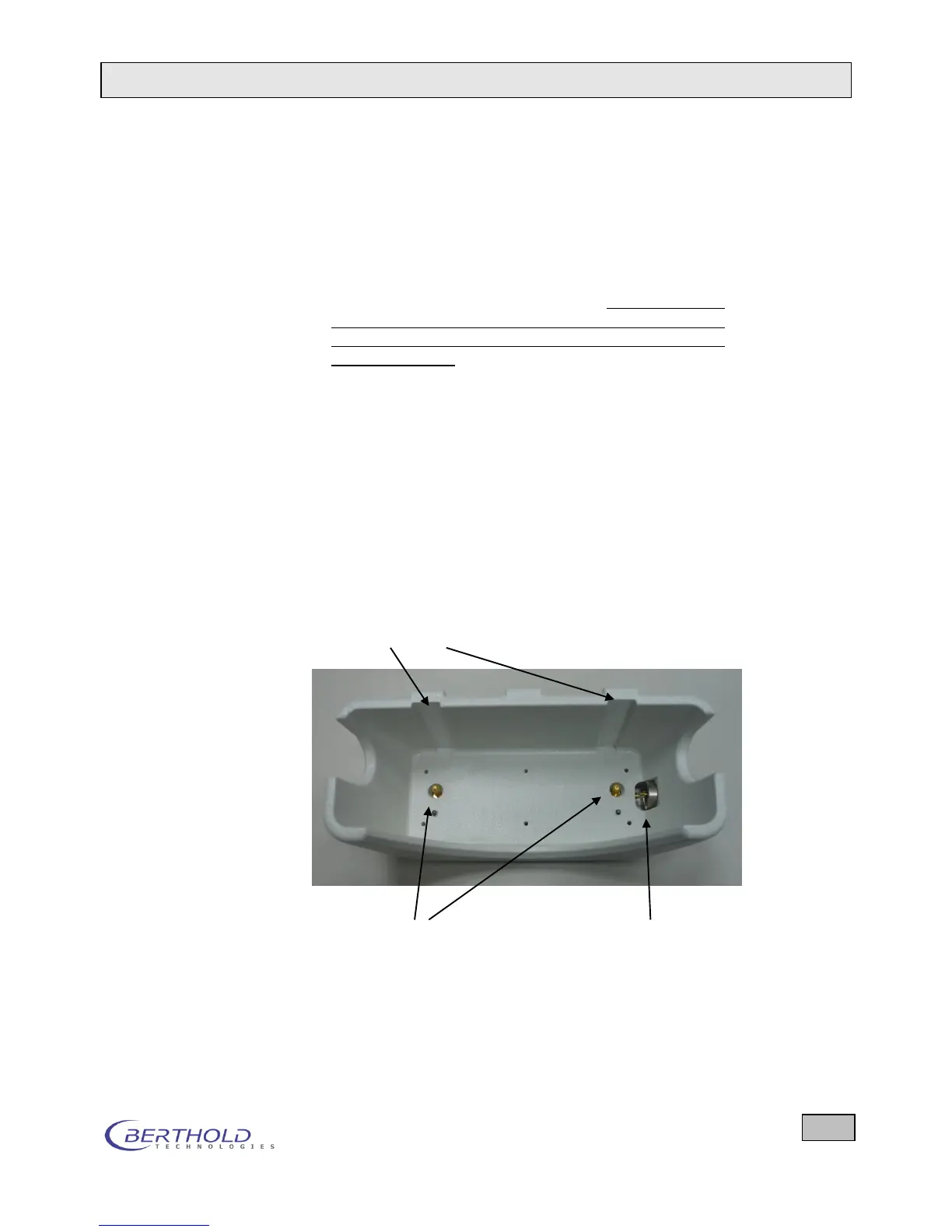

Figure 2.8: Wall bracket
