6.9 Display Mode
You can select one of three possible display modes for a con-
nected alpha beta contamination probe.

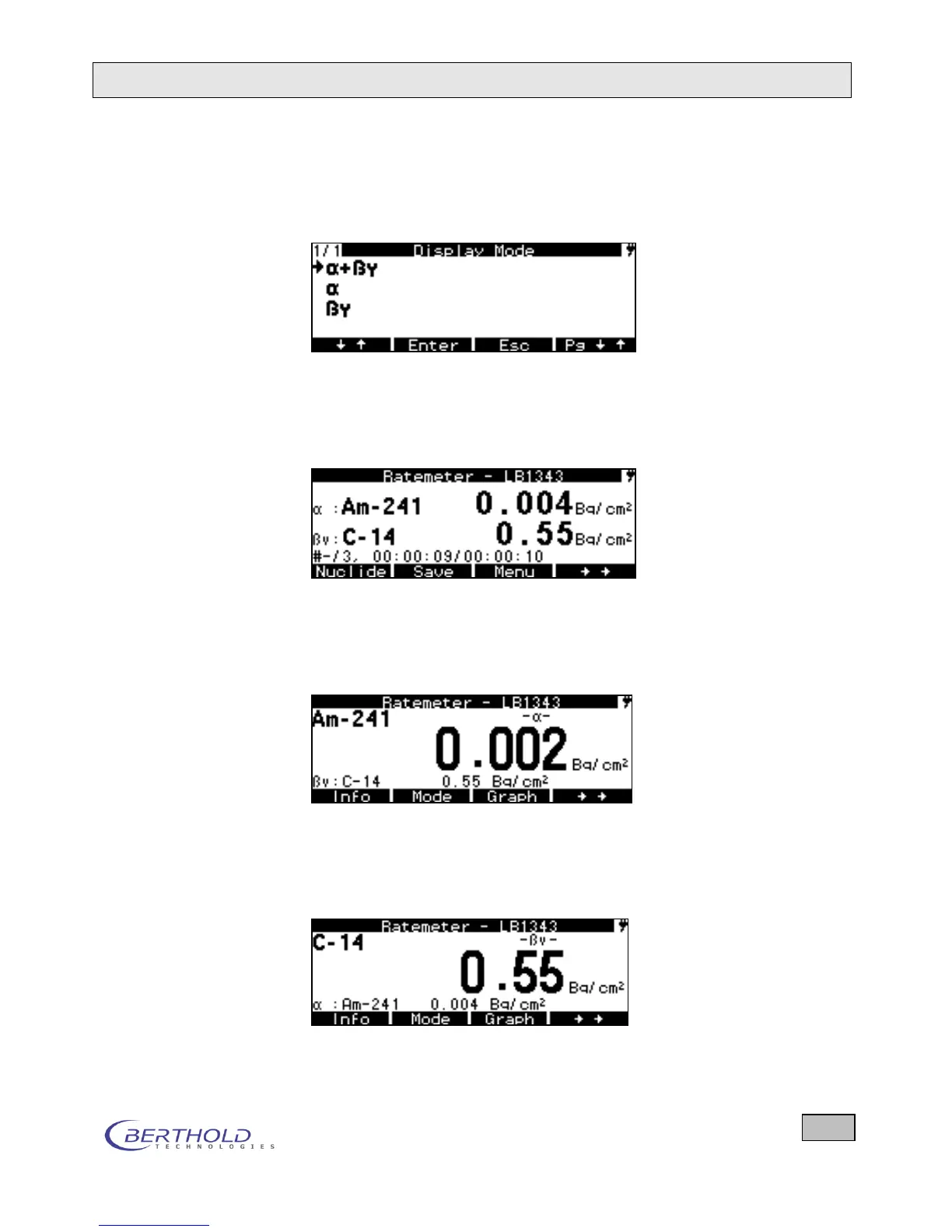

Figure 6.16: Selection options in the display mode
In the first case, the alpha and beta channel are shown the
same size.
Figure 6.17: Display mode α + β
In the second case, the alpha channel result is displayed large
and the result of the beta channel will appear in the info line.
Figure 6.18: Display mode α
In the third case, the beta channel result is displayed large and
the result of the alpha channel will appear in the info line.
Figure 6.19: Display mode β
