2. System Description
2.1 Enclosure with Electronics Module
The splash-proof enclosure contains the measurement and
control electronics, the internal dose rate probe LB 1346, the
software and the control elements of the monitor (see Figure
2.1).

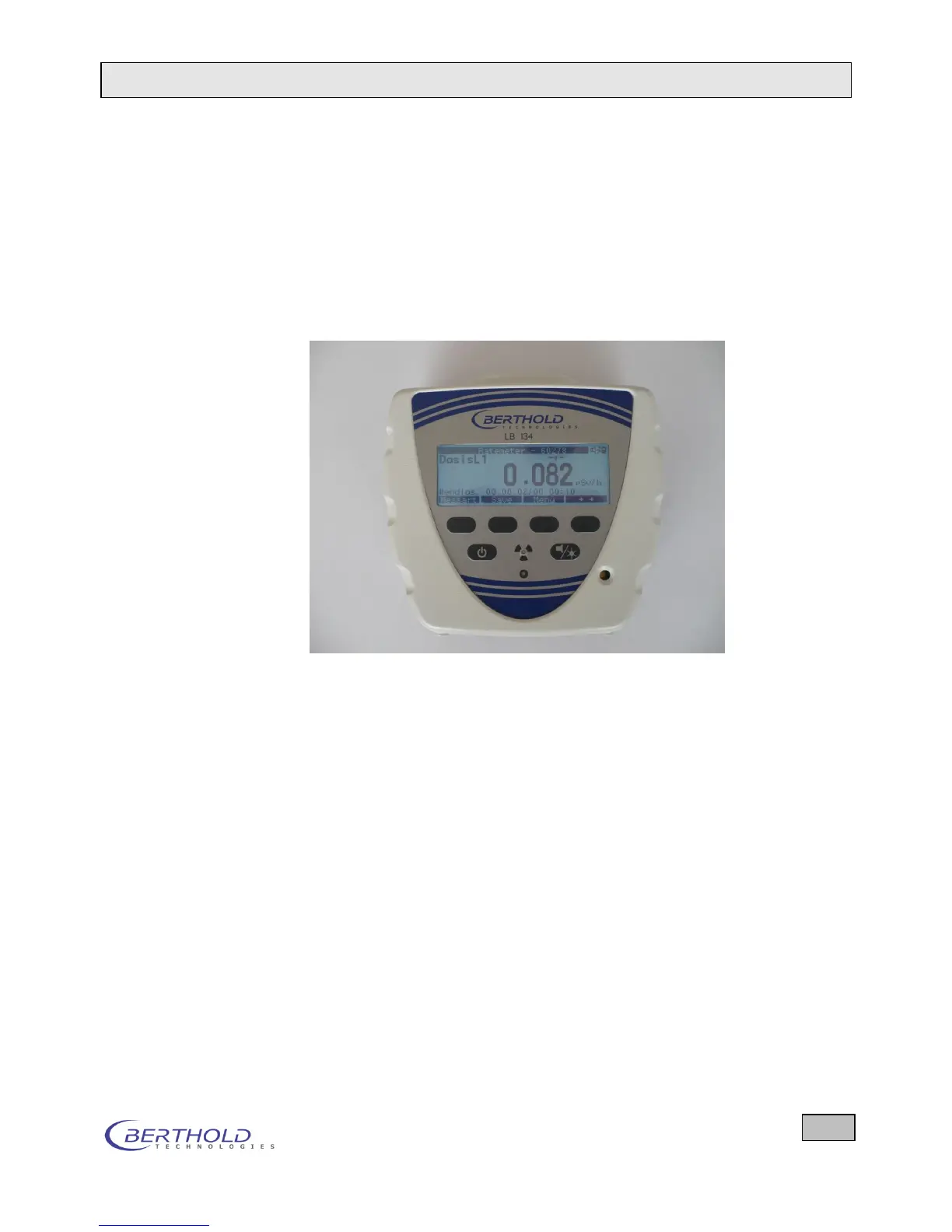

Figure 2.1: Basic unit LB 134
Electronics The complete electronics with integrated dose rate probe
LB 1346 (including software and high-voltage generation) is lo-
cated inside the case. The connections for external components
are on the left and right. At the bottom, there are two contacts to
charge the batteries when the unit is placed in the wall bracket.
The internal dose rate probe LB 1346 is mounted on top behind
a bulge in the case.
