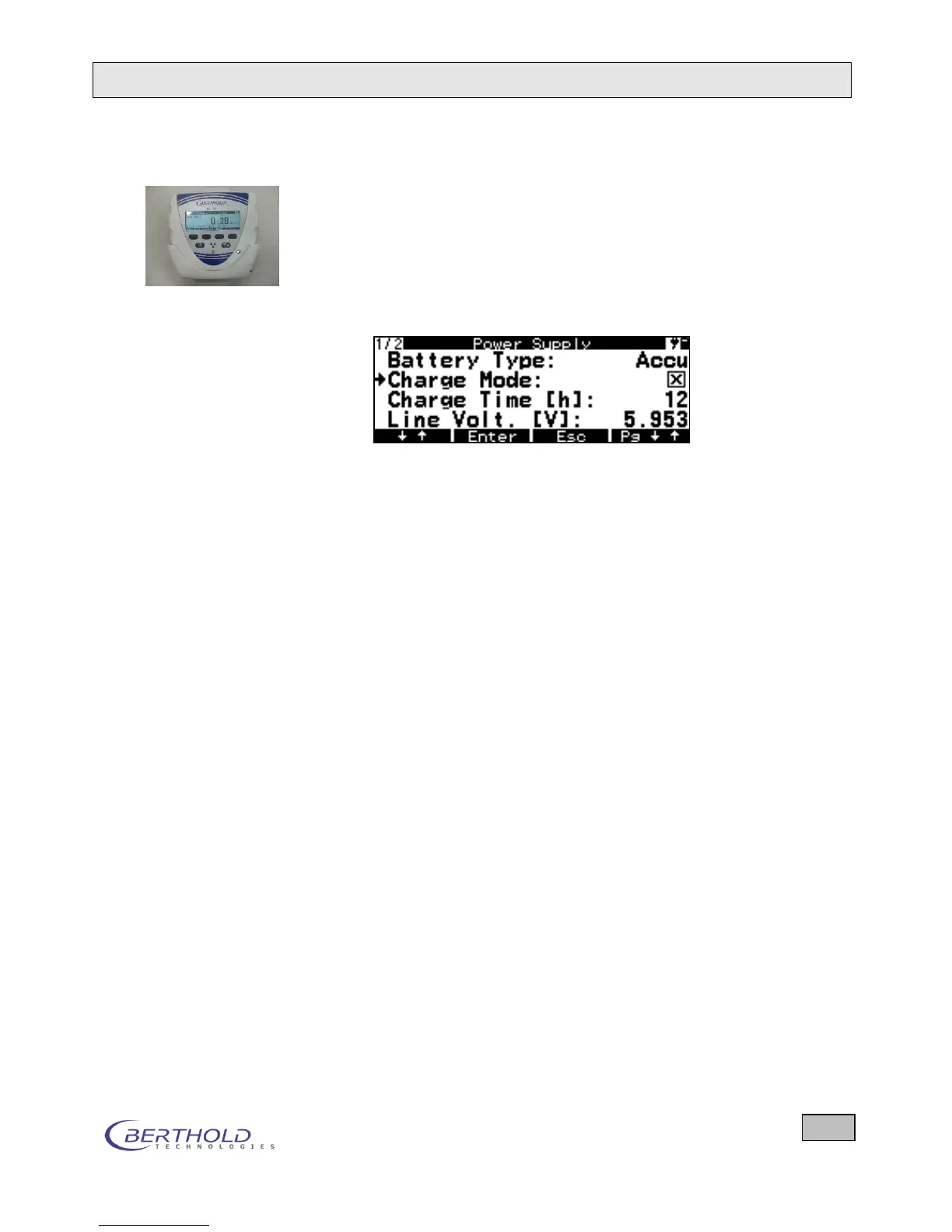

3.4 Installation of Wall Bracket for Stationary Operation
For stationary operation, mount the wall bracket on
the wall using the supplied screws and wall plugs (at
about chest height).
Connect the PSU to the wall bracket and to mains.
We recommend using rechargeable batteries for this
application; select Accu in the Power Supply menu.
Set the Charge Mode to On (X).
Place the LB 134 in the wall bracket. The unit turns on
automatically.
If you are working with an external probe, this probe
must also be mounted on the wall in the vicinity of the
device and connected to the device with a coiled ca-
ble. For RS485 networking, connect the shielded
twisted pair data cable to the device using a 6-pin
Fischer connector. The last device and the first device
or data center at the ends of the bus cable must be
terminated with 120 ohms (either in the plug or a wir-
ing box).
Now you are ready to perform stationary measurements – pro-
vided the appropriate device settings have been done.
