BIO RAD CFX96 User Manual

Stand-Alone Operation
58
2. Enter a protocol name if you have already not done so, or edit the name previously
created in the Protocol window. Use arrow keys to select a destination folder (Figure 49).

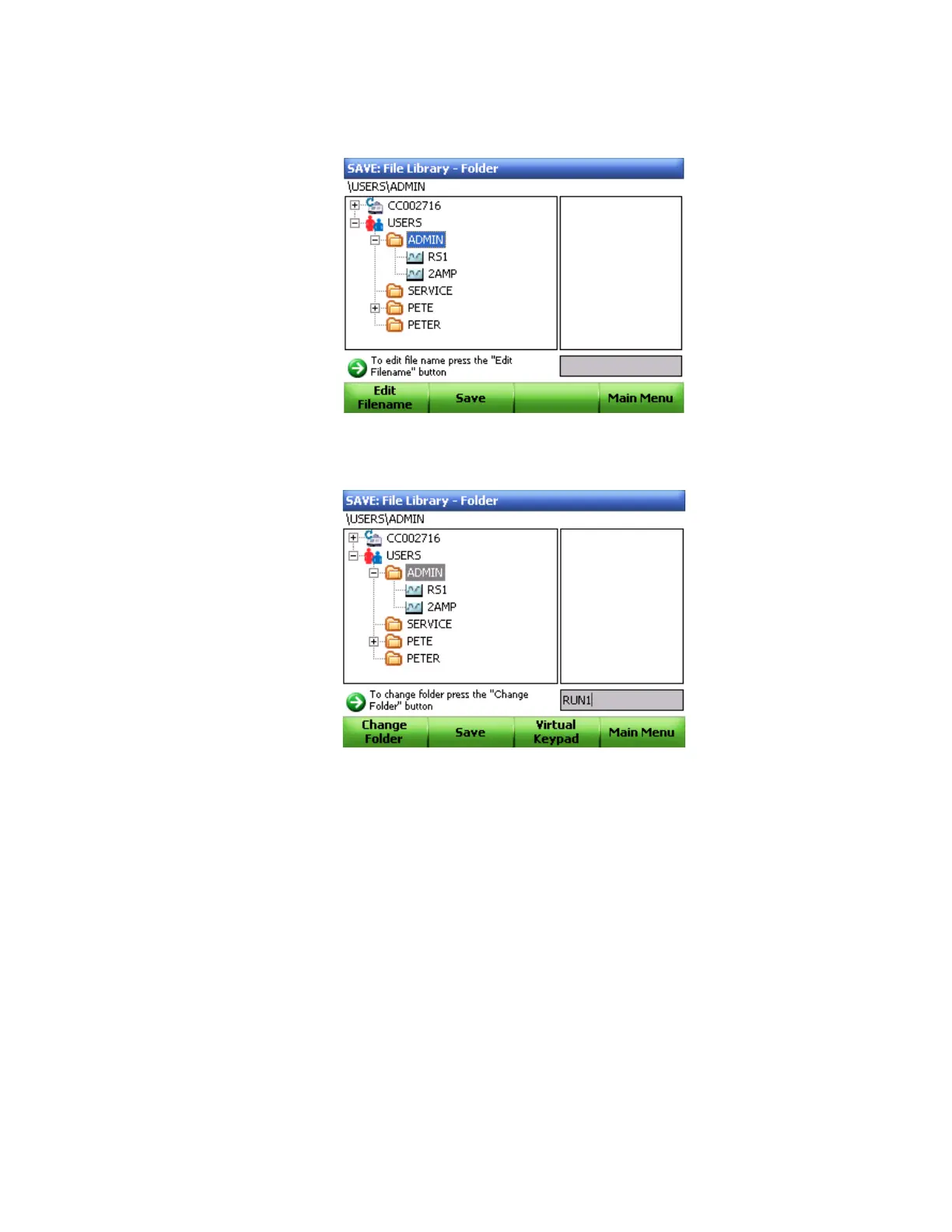

Figure 49. Saving a protocol.
3. Click Edit Filename (F1) and type a new name in the box (Figure 50).
Figure 50. Entering a protocol name.
4. Click Save (F2) (Figure 50).

BIO RAD CFX96 Specifications

General

Temperature Uniformity	±0.4 °C
Software	CFX Maestro Software
Detection Method	Real-time PCR (qPCR)
Sample Capacity	96-well plate
Excitation Source	LED
Ramp Rate	Up to 5°C/sec
Heating Rate	5°C/sec
Sensitivity	Single copy detection
Power Requirements	100-240 V, 50/60 Hz
Temperature Range	0–100 °C
