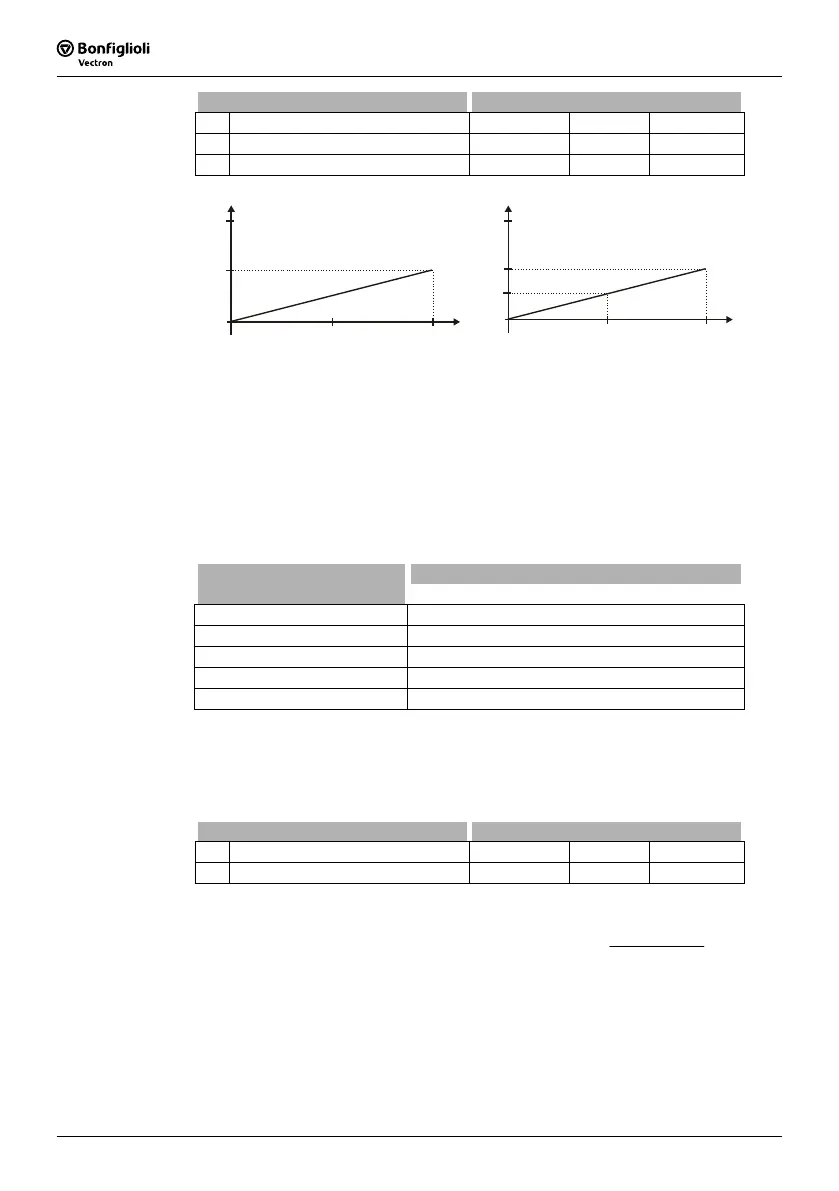

Parameter Settings
No. Description Min. Max. Fact. sett.
551 Voltage 100% 0.0 V 22.0 V 10.0 V
552 Voltage 0% 0.0 V 22.0 V 0.0 V
Actual abs. value
Analog Operation 553: Analog Operation 553 with signs:
0V
+10V
+24V
50%
0%
100%
0V
+5V
+24V
0%
-100%
100%
+10V
With the parameters
Voltage 100% 551 and Voltage 0% 552, the voltage range at
100% and 0% of the output parameter is set. If the output value exceeds the refer-
ence value, the output voltage also exceeds the value of the parameter
Voltage 100%
551 up to the maximum value of 24V.
14.2.2 Frequency Output MFO1F
The multifunctional output MFO1 can be used as a frequency output if the corre-
sponding
Operation Mode 550 is selected. The 24V output signal is assigned to the
abs. value of the speed or frequency via the parameter
Repetition Freq. Operation
555. The selection of the operation modes depends on the expansion modules in-
stalled as an option.
Repetition Freq. Operation
555
Function
0 - Off Repetition frequency operation MFO1 switched off.
1 - Actual Frequency
Abs. value of the
Actual Frequency 241.
2 - Stator Frequency
Abs. value of the
Stator Frequency 210.
3 - Frequency Speed Sensor 1
Abs. value of the
Encoder 1 Frequency 217.
5 - Repetition Frequency Input
Abs. value of the
Repetition Frequency Input 252.
14.2.2.1 Scaling
The repetition frequency mode for the multifunction output corresponds to the emula-
tion of an incremental sensor. The parameter
Division Marks 556 must be param-
eterized according to the frequency to be output.
Parameter Settings
No. Description Min. Max. Fact. sett.
556 Division marks 30 8192 1024
The frequency limit of f
max
=150 kHz must not be exceeded in the calculation of the
parameter
Division marks 556, i.e. the requirement
S
max
∗ abs. frequency value ∗ 150 kHz must be met.
valueFrequency
Hz 150000
S
max
=
To Next Page
