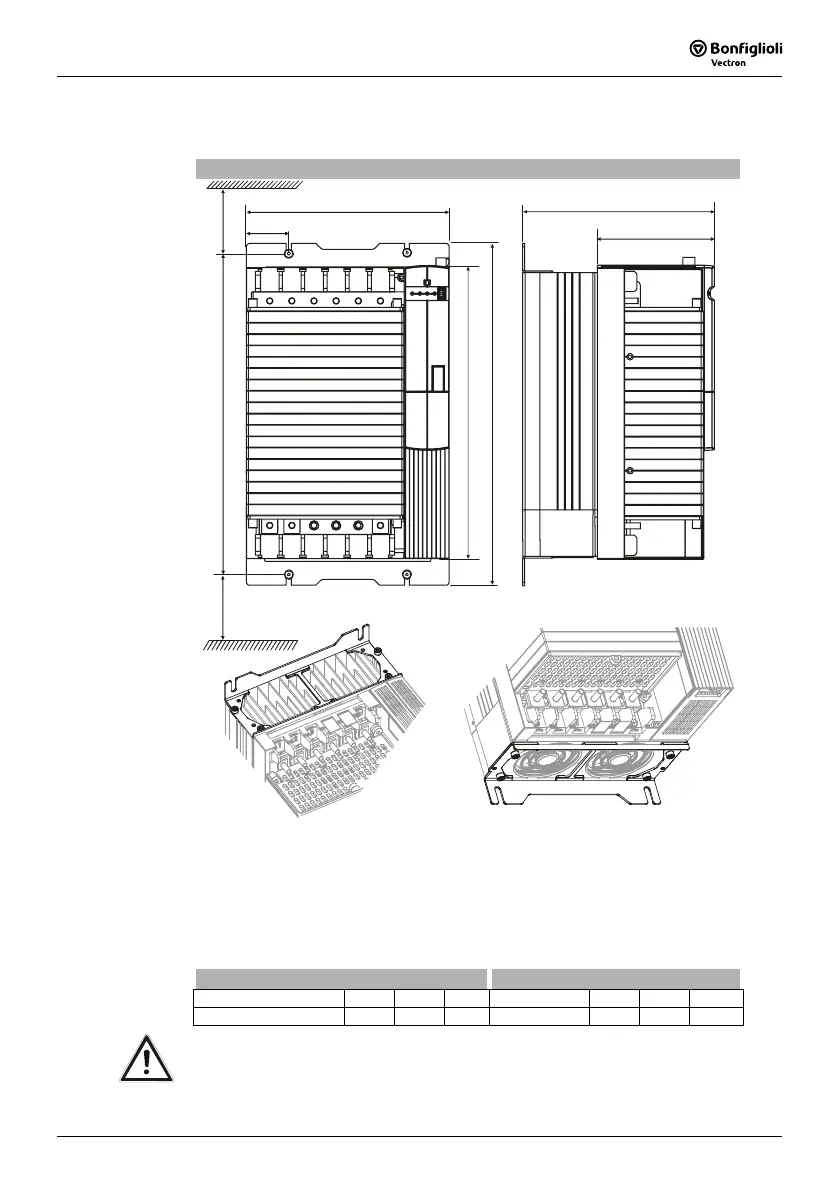

4.4 ACT 401 (37.0 up to 65.0 kW)
The frequency inverter is mounted in a vertical position on the assembly panel by
means of the standard fittings. The following illustration shows the standard fitting.
Standard installation
fixing braket top
(fixing with screws )
M5x20
fixing braket bottom
(fixing with screws )
M5x20
a
a1
a2
x
x 100 mm
b
b1
x
c
c1
Assembly is done by screwing the two fixing brackets to the heat sink of the fre-
quency inverter and the assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four
thread-cutting screws. The dimensions of the device and the installation dimensions
are those of the standard device without optional components and are given in milli-
meters.
Dimensions in mm Installation dimensions in mm
Frequency inverter
a b c a1 a2 b1 c1
37.0 kW ... 65.0 kW
400 275 260 425 .. 445 470 20 160
Caution! Mount the devices with sufficient clearance to other components so that
the cooling air can circulate freely. Avoid soiling by grease and air pollu-
tion by dust, aggressive gases, etc.
