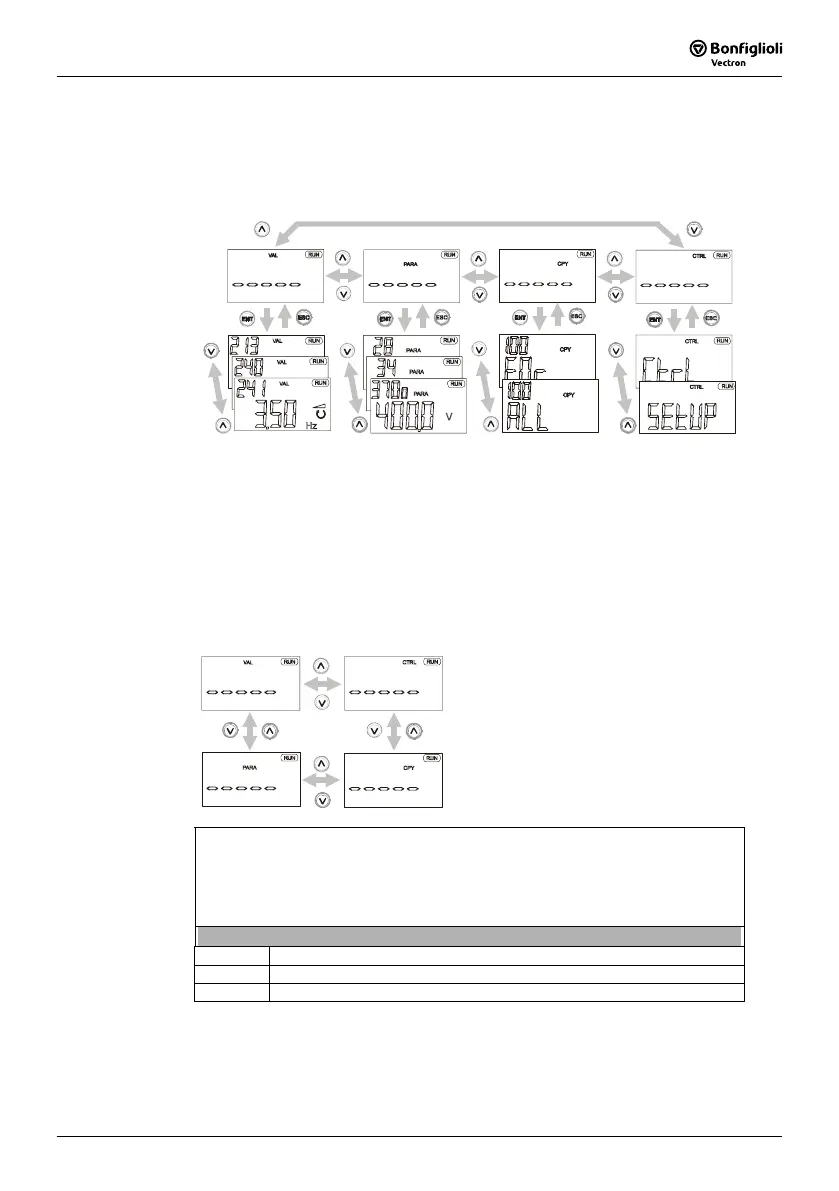

6.1 Menu Structure
The menu structure of the control unit is arranged as shown in the following illustra-
tion. In the optionally available PC user software VPlus, the functions and parameters
are structured in various levels depending on their function. The software contains the
full set of information and enables a flexible use of the parameter setting and control
options.
6.2 Main Menu
The various parameters and information of the frequency inverter can be displayed by
means of the control unit. The different functions and parameters are grouped to-
gether in four menu branches. From any point in the menu structure you can return
to the main menu by pressing the ESC key either continuously or repeatedly.
Note: In the following description of the key functions, a plus (+) between the
key symbols indicates that the keys have to be pressed at the same time.
A comma (,) between the key symbols indicates that the keys have to be
pressed one after the other.
Menu branch VAL
Display of actual values
Menu branch PARA
Display and edit parameters
Menu branch CPY
Copy parameters
Menu branch CTRL
Select control and test functions
Use the arrow keys to select the required menu branch. The selected menu branch is
displayed (flashing).
Select the menu branch by pressing the ENT key. The first parameter or the first func-
tion in the selected menu branch will be displayed.
Press the ESC key to return to the main menu of the control unit.
Keys
▲ ▼
Navigate through the menu structure and select a menu branch.
ENT Open the selected menu branch.
ESC Cancel the current menu branch and return to the main menu.
