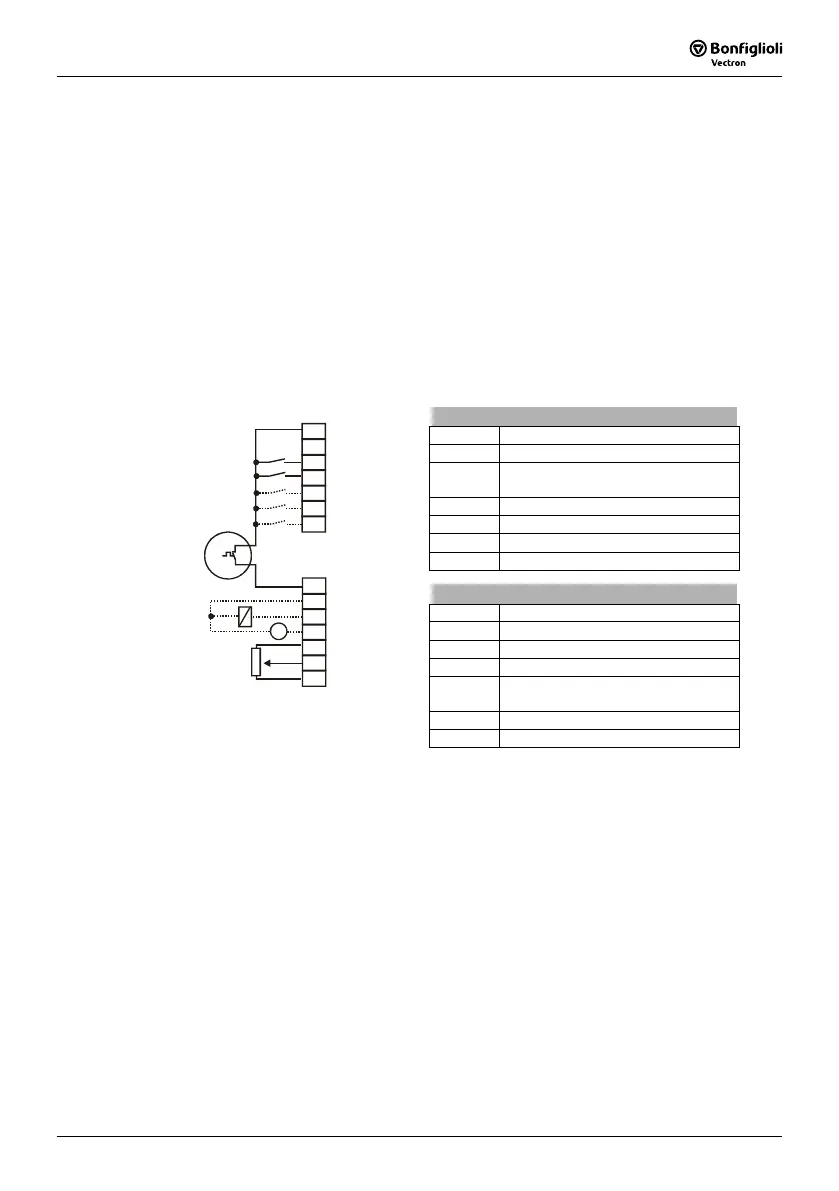

5.6.2 Control Terminals – Terminal Diagram
The control hardware and the software of the frequency inverter are freely configur-
able to a great extent. Certain functions can be assigned to the control terminals, and
the internal logic of the software modules can be freely selected.
Thanks to the modular design, the frequency inverter can be adapted to a great
range of different driving tasks.
The demands made of the control hardware and software are well known in the case
of standard driving tasks. This control terminal logic and internal function assign-
ments of the software modules are available in standard configurations. These as-
signments can be selected via parameter
Configuration 30. For information on other
configurations, please contact us.
5.6.2.1 Configuration 110 – Sensorless Control
Configuration 110 contains the functions for variable-speed control of a 3-phase ma-
chine in a wide range of standard applications. The motor speed is set according to
the selected ratio of the reference frequency to the necessary voltage.
Control terminal X210A
X210A.1 Supply voltage +20 V
X210A.2 Ground 20 V
X210A.3 Controller release / error acknowl-
edgment
X210A.4 Start of clockwise operation
X210A.5 Start of anticlockwise operation
X210A.6 Data set change-over 1
X210A.7 Data set change-over 2
Control terminal X210B
X210B.1 Motor thermal contact
X210B.2 Ground 20 V
X210B.3 Operating message
X210B.4 Analog signal of actual frequency
X210B.5 Supply voltage +10 V
Reference value potentiometer
X210B.6 Reference speed 0 ...+10 V
GND 20 V
S1OUT
MFO1A
+10 V/ 4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
X210B.7 Ground 10 V
