Operating Instructions ACTIVE06/07 61
06/07 Operating Instructions ACTIVE 61

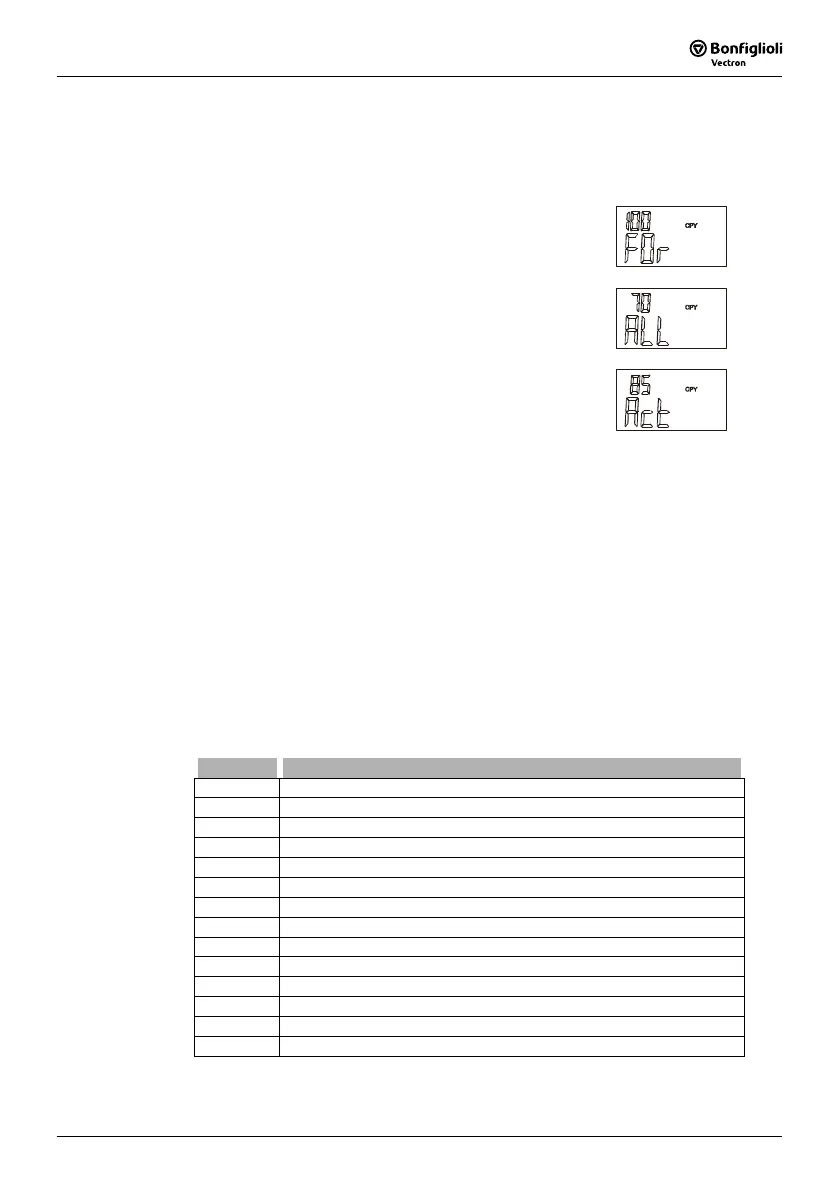

6.5.2 Menu Structure
The copy menu CPY contains three main functions. Use the arrow keys to select the
required function. Select the source and the destination for the process. The memory
space available in the non-volatile memory of the control unit is displayed on the
three-digit seven-segment display as a percentage value.
Function – FOr
Use the function FOr to format and delete the memory in the
control unit. This may be necessary if a new control unit is
used for the first time.
Function – ALL
All readable and writable parameter values are transferred.
• Confirm this selection by pressing the ENT key and con-
tinue by selecting the source.
Function – Act
Only the active parameter values of the frequency inverter are
copied to the control unit. The number of active parameter
values depends on the current selected configuration of the
frequency inverter.
When data are copied from the control unit to the frequency
inverter, all parameter values stored are transferred, like in the
case of the ALL function.
• Confirm the selection Act by pressing the ENT key and
continue by selecting the source.
6.5.3 Selecting the Source
The parameters of the ALL and Act sub-functions in the CPY menu branch can be
parameterized to meet the requirements of the specific application.
The available memory space of the control unit is shown on the seven-segment
display.
• Use the arrow keys to select the data source (Src.) for the copy operation (up-
load). You can use either the data sets of the frequency inverter (Src. x) or the
files of the control unit (Src. Fy) as the data source.
• Confirm the selected data source by pressing the ENT key and continue by select-
ing the destination.
Display Description
Src. 0 The data of the four data records of the frequency inverter are copied.
Src. 1 The data of data record 1 of the frequency inverter are copied.
Src. 2 The data of data record 2 of the frequency inverter are copied.
Src. 3 The data of data record 3 of the frequency inverter are copied.
Src. 4 The data of data record 4 of the frequency inverter are copied.
Src. E An empty data record for deletion of a file in the control unit.
Src. F1 File 1 is transferred from the memory of the control unit.
1)
Src. F2 File 2 is transferred from the memory of the control unit.
1)
Src. F3 File 3 is transferred from the memory of the control unit.
1)
Src. F4 File 4 is transferred from the memory of the control unit.
1)
Src. F5 File 5 is transferred from the memory of the control unit.
1)
Src. F6 File 6 is transferred from the memory of the control unit.
1)
Src. F7 File 7 is transferred from the memory of the control unit.
1)
Src. F8 File 8 is transferred from the memory of the control unit.
1)
1)
Empty files which are not filled with data yet cannot be used as signal sources. The
control unit memory is managed dynamically (see Chapter “Copy Menu (CPY)”)
