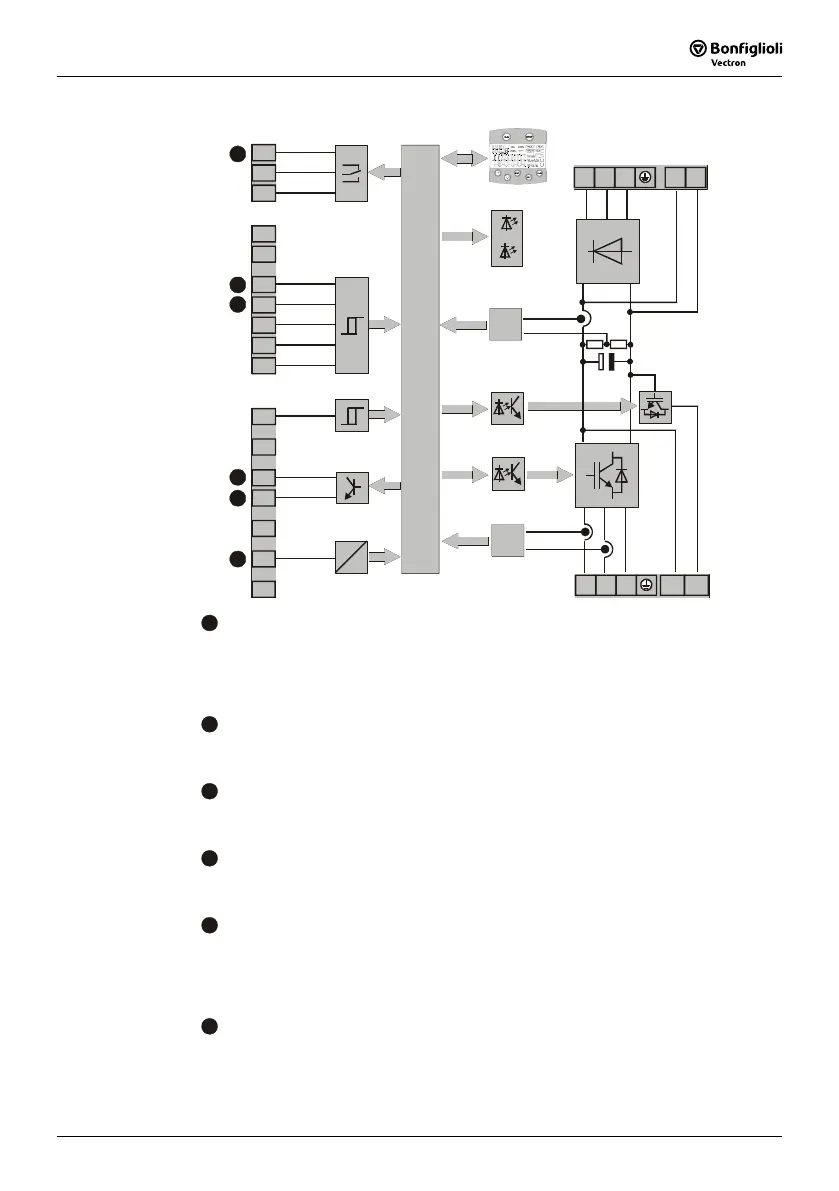

5.2 Block diagram
+10 V / 4 mA
MFI1
GND 10 V
6
X210A
+20 V / 180 mA
GND 20 V
S4IND
X210B
5
6
7
1
2
3
S3OUT
X
10
A
D
5
S3IND
4
S2IND
2
S1IND
7
S5IND
3
1
1
S6IND
GND 20 V
2
4
MFO1
S1OUT
3
CPU
+
-
L2 L3L1
X1
V
W
U
Rb1
X2
+
-
Rb2
I
U, I
A
B
C
D
E
F
A
Relay connection S3OUT
Change-over contact, min. 50 000 switching operations,
response time approx. 40 ms, maximum contact load:
− make contact AC 5 A / 240 V, DC 5 A (ohmic) / 24 V DC
− break contact AC 3 A / 240 V, DC 1 A (ohmic) / 24 V DC
B
Digital input S1IND
Digital signal, controller enable signal, response time approx. 16 ms (on), 10 μs (off),
U
max
= DC 30 V, 10 mA at DC 24 V, PLC compatible
C
Digital input S2IND ... S6IND
Digital signal: response time approx. 16 ms, U
max
= DC 30 V, 10 mA at DC 24 V, PLC
compatible, frequency signal: DC 0...30 V, 10 mA at DC 24 V, f
max
= 150 kHz
D
Digital output S1OUT
Digital signal, DC 24 V, I
max
= 40 mA,
PLC compatible, overload and short-circuit proof
E
Multi-function output MFO1
Analog signal: DC 24 V, I
max
= 40 mA, pulse-width modulated, f
PWM
= 116 Hz
Digital signal: DC 24 V, I
max
= 40 mA,
frequency signal: DC 0...24 V, I
max
= 40 mA, f
max
= 150 kHz,
PLC compatible, overload and short-circuit proof
F
Multi-function input MFI1
Analog signal: resolution 12 Bit, DC 0...10 V (Ri = 70 kΩ), 0...20 mA (Ri = 500 Ω),
digital signal: response time approx. 16 ms, U
max
= DC 30 V, 4 mA at DC 24 V,
PLC compatible
