20 Operational and Error Diagnosis
Operation of the frequency inverter and the connected load are monitored continu-
ously. Various functions document the operational behavior and facilitate the opera-
tional and error diagnosis.

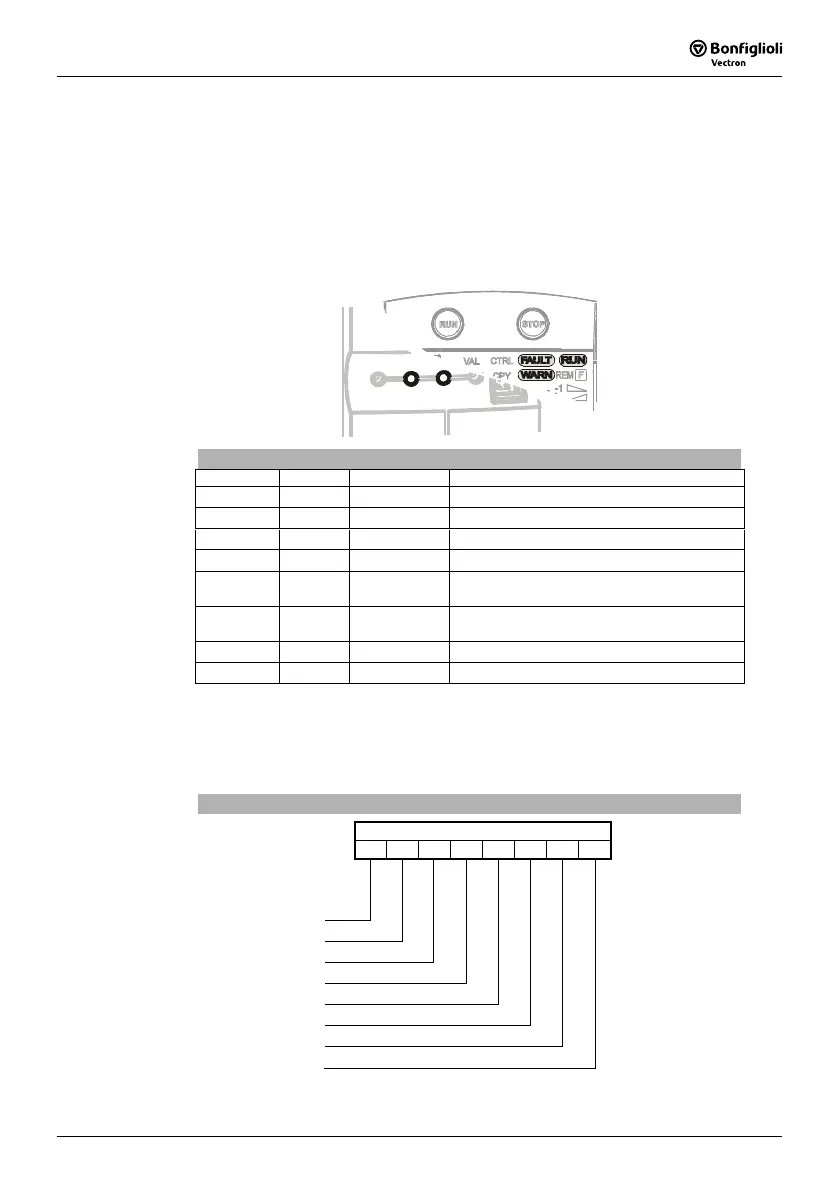

20.1 Status Display
The green and red light-emitting diodes give information about the operating point of
the frequency inverter. If the control unit is connected, the status messages are addi-
tionally displayed by the display elements RUN, WARN and FAULT.
Status Display
green LED red LED Display Description
off off - No supply voltage.
on on - Initialization and self-test.
flashes off RUN flashes Ready for operation, no output signal.
on off RUN Operating message.
on flashes
RUN flashes +
WARN flashes
Operational message, current
Warning 269.
flashes flashes
RUN flashes +
WARN flashes
Ready for operation, current
Warning 269.
off flashes FAULT flashes
Last Error 310 of frequency inverter.
off on FAULT
Last Error 310, acknowledge fault.
20.2 Status of Digital Signals
The status display of the digital input and output signals enables checking of the vari-
ous control signals and their assignment to the corresponding software functions, in
particular during commissioning.
Coding of the status of the digital signals
Assignment: Bit
7 6 5 4 3 2 1 0
Control signal 8
Control signal 7
Control signal 6
Control signal 5
Control signal 4
Control signal 3
Control signal 2
Control signal 1
