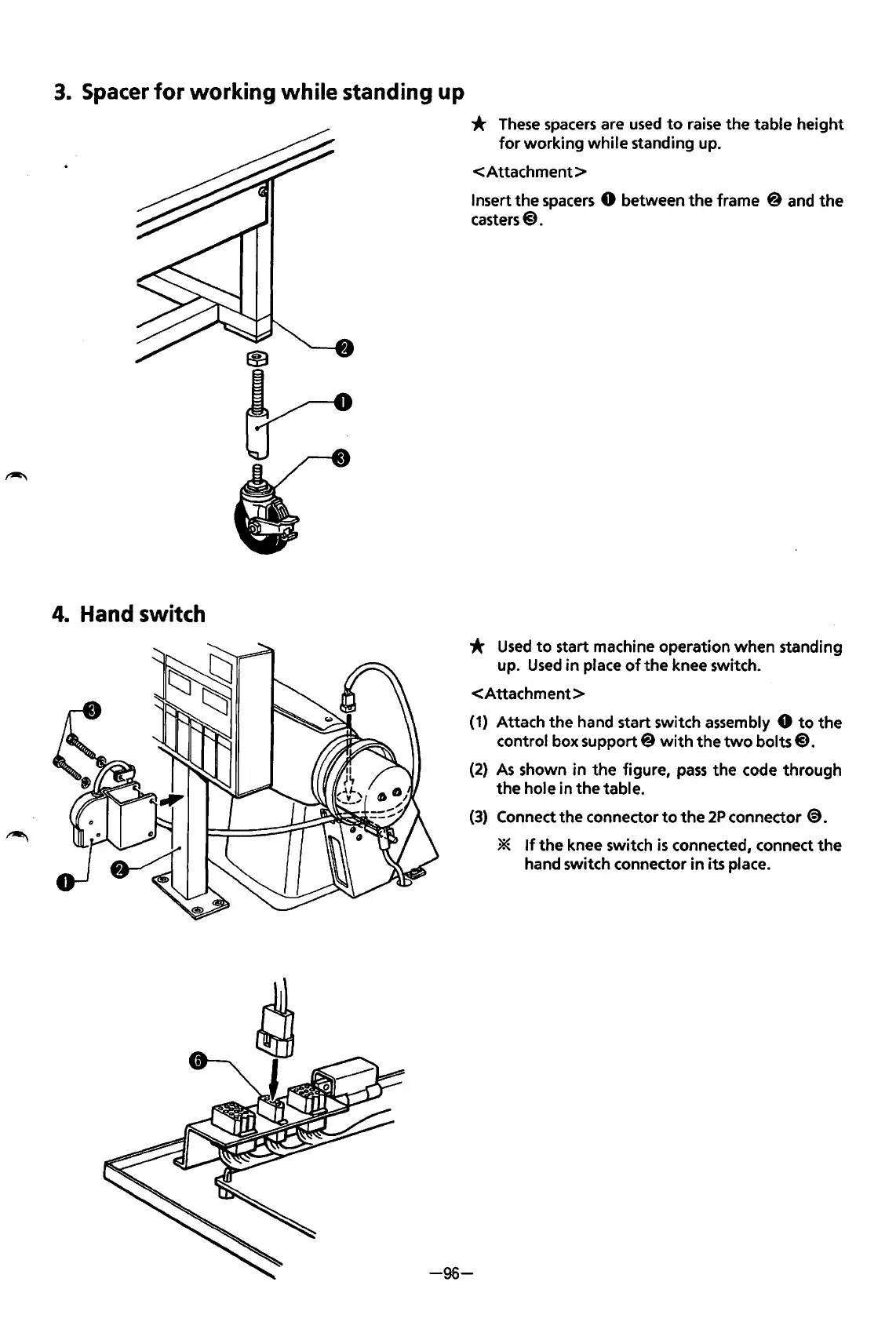

3. Spacer for working while standing up
4. Hand switch
* These spacers are used to raise the table height
for working
while standing up.
<Attachment>
Insert the spacers 0 between the frame @ and the
casters@.
* Used to start machine operation when standing
up.
Used in place of the knee switch.
<Attachment>
(1) Attach the hand start switch assembly 0 to the
control box support 8 with the two bolts@).
(2) As shown in the figure, pass the code through
the hole in the table.
(3) Connect the connector to the 2P connector @).
* If the knee switch is connected, connect the
hand switch connector in its place.
