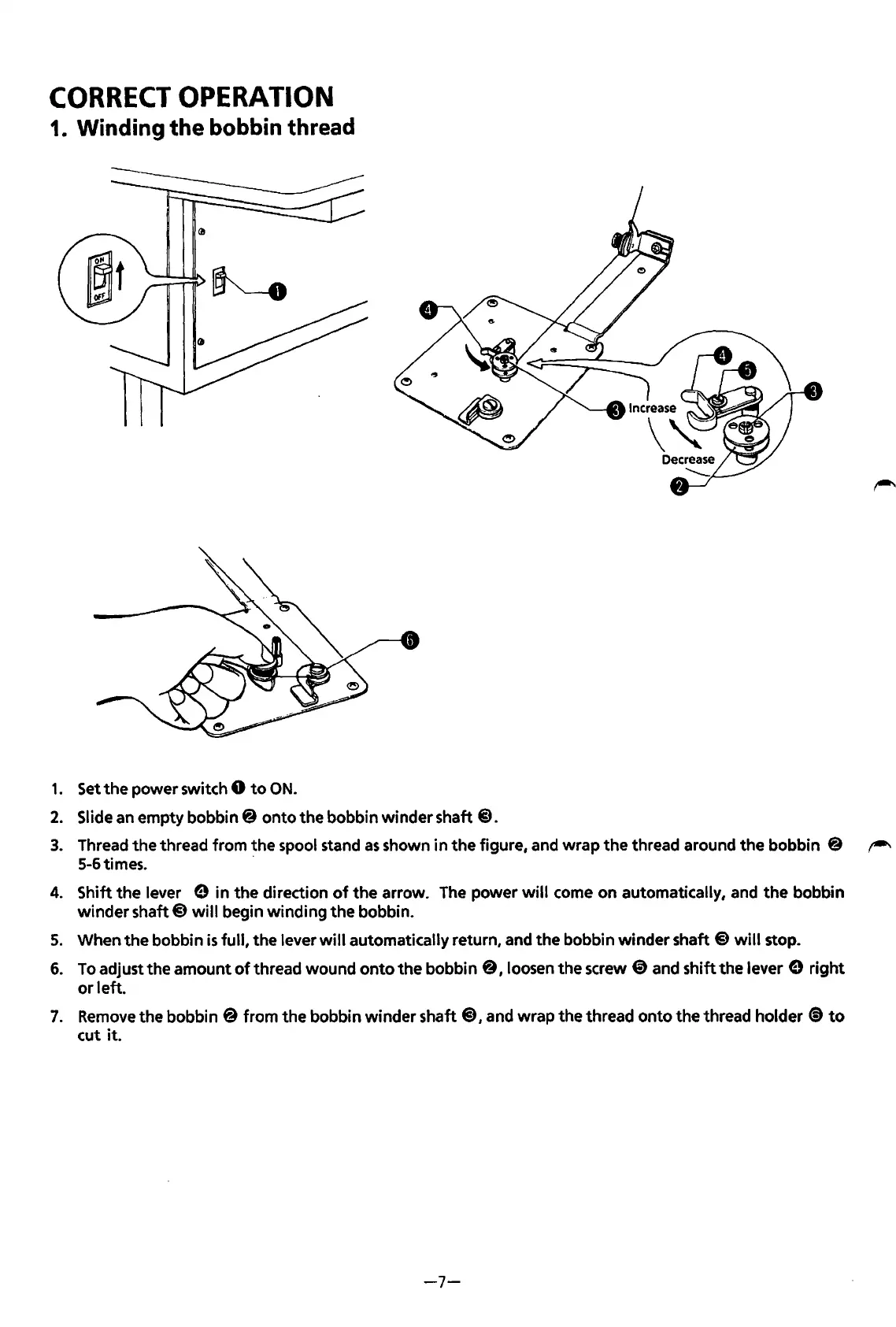

CORRECT OPERATION
1. Winding the bobbin thread
1. Set the power switch 0 to ON.
2. Slide an empty bobbin@ onto the bobbin winder shaft @.
3. Thread the thread from the spool stand as shown in the figure, and wrap the thread around the bobbin 8 r-"
5-6times. ·
4. Shift the lever e in the direction of the arrow. The power will come on automatically, and the bobbin
winder
shaft@) will begin winding the bobbin.
5. When the bobbin is full, the lever will automatically return, and the bobbin winder shaft @) will stop.
6. To adjust the amount of thread wound onto the bobbin 8, loosen the screw @> and shift the lever e right
or left.
7. Remove the bobbin @ from the bobbin winder shaft @), and wrap the thread onto the thread holder ~ to
cut it.
-7-
