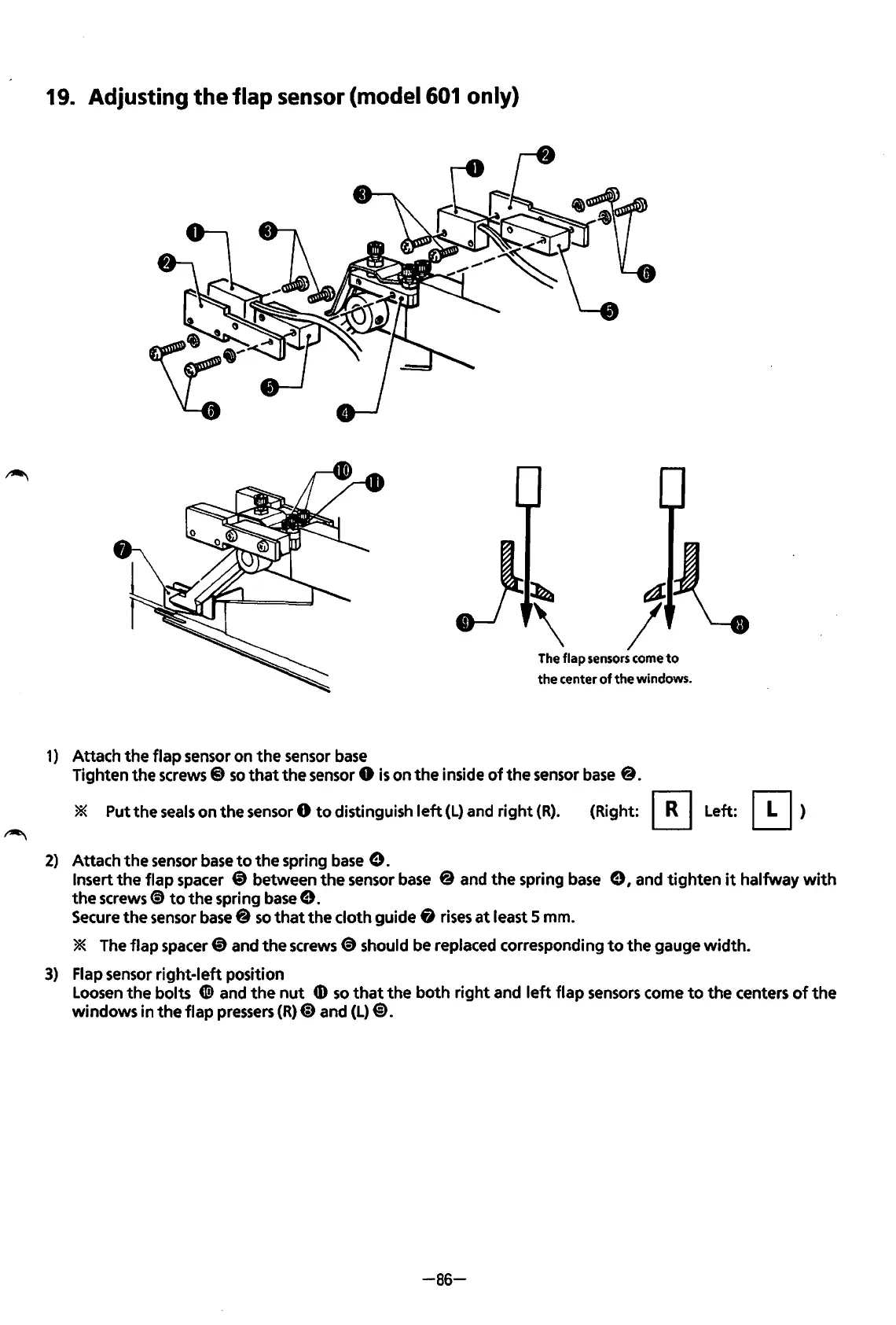

19. Adjusting
the
flap sensor (model601 only)
1)
Attach
the
flap
sensor
on
the
sensor base
J\
!~
The
flap
sensors
come
to
the center
of
the windows.
Tighten
the
screws@)
so
that
the
sensor 0
is
on
the
inside
of
the
sensor
base
@.
* Putthe
seals
on the
sensor
0
to
distinguish
left
(L)
and right
(R).
(Right: 0 Left:
~
)
2)
Attach
the
sensor base
to
the
spring base G.
Insert
the
flap
spacer 8 between
the
sensor base @ and
the
spring
base
G,
and
tighten
it
halfway
with
the
screws@}
to
the
spring base
e.
Secure
the
sensor base@
so
that
the
cloth guide 8 rises
at
least 5 mm.
* The
flap
spacer 8 and
the
screws 8 should be replaced corresponding
to
the
gauge
width.
3)
Flap sensor
right-left
position
Loosen
the
bolts
CID
and
the
nut
CD
so
that
the
both
right
and
left
flap
sensors come
to
the
centers
of
the
windows
in
the
flap
pressers
(R)@)
and (L)@).
-86-
