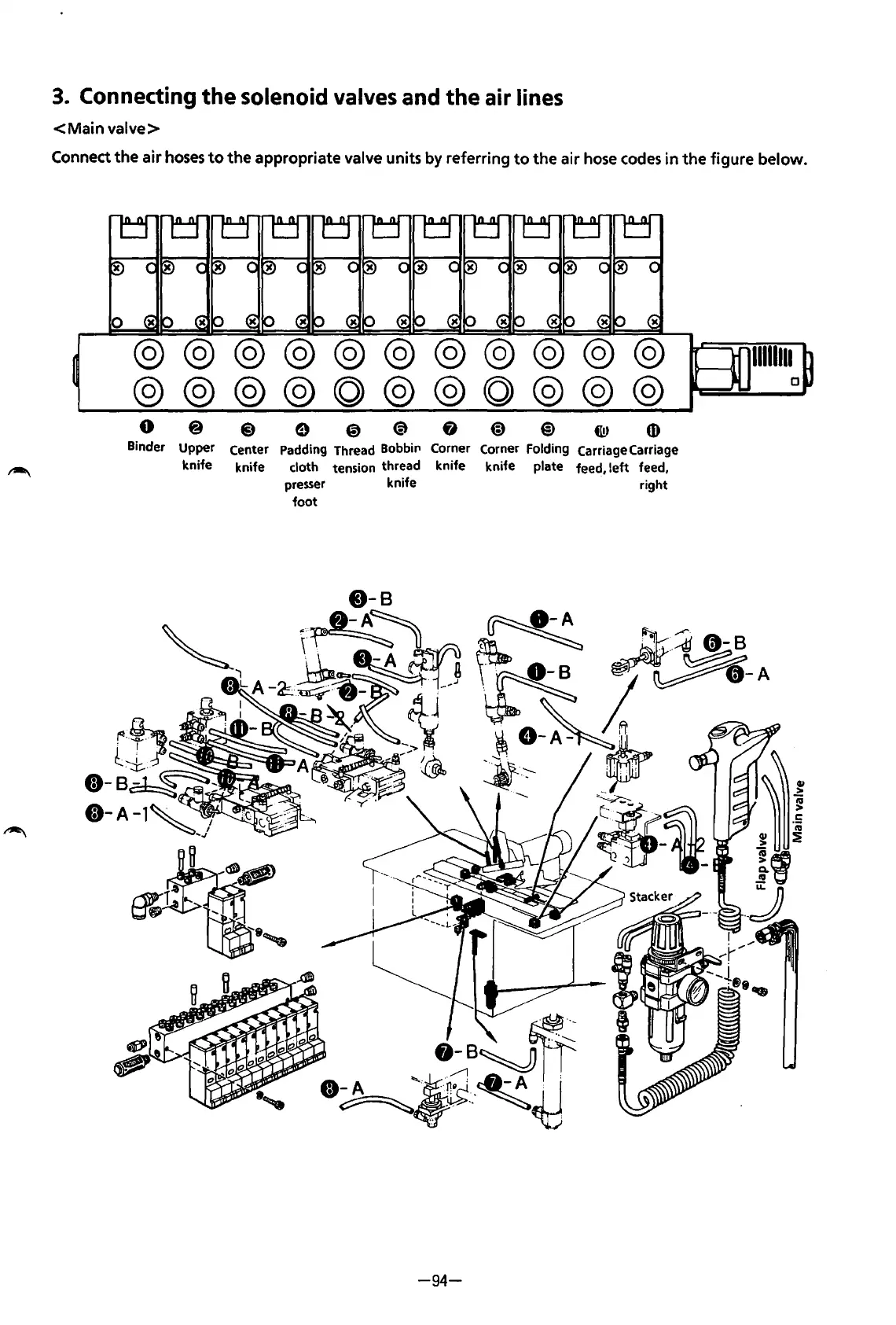

3. Connecting the solenoid valves and the air lines
<Main valve>
Connect the air hoses to the appropriate valve units by referring to the air hose codes in the figure below.
@@@@@@@@@@@
@@@@©@@©@@@
0 @
Binder Upper Center Padding Thread Bobbil" Corner Corner Folding Carriage Carriage
knife knife cloth tension thread knife knife plate feed, left feed,
presser knife right
foot
-94-
