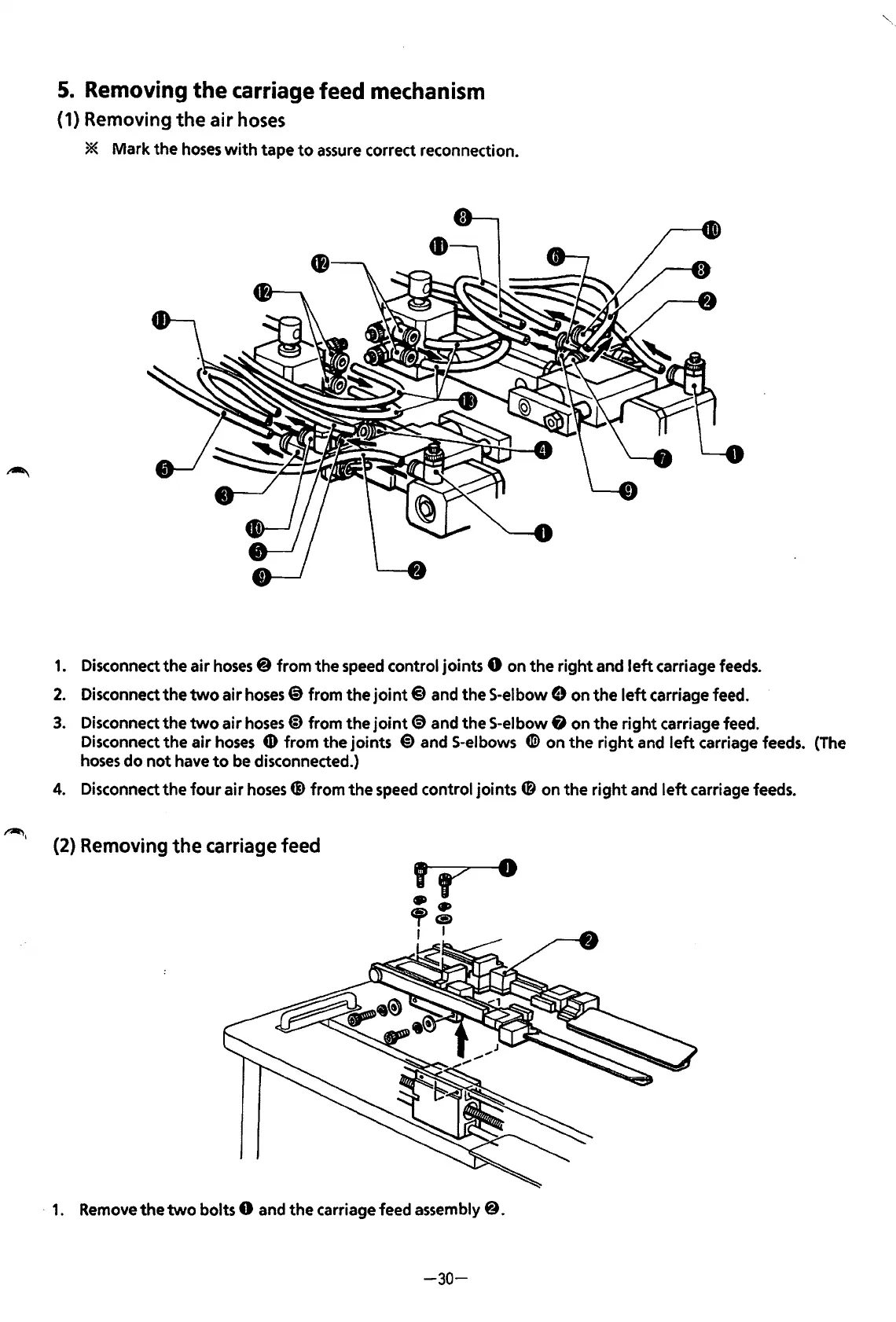

5.
Removing
the carriage feed
mechanism
(1) Removing
the
air
hoses
*
Mark
the
hoses
with
tape
to
assure
correct reconnection.
1.
Disconnect
the
air
hoses@
from
the
speed control joints 0 on
the
right
and
left
carriage feeds.
2.
Disconnect
the
two
air
hoses@)
from
the
joint@
and
the
S-elbow 8 on
the
left
carriage feed.
3.
Disconnect
the
two
air
hoses@)
from
the
joint~
and
the
S-elbow & on
the
right
carriage feed.
Disconnect
the
air
hoses
4D
from
the
joints
€)
and S-elbows 0 on
the
right
and
left
carriage feeds. (The
hoses
do
not
have
to
be disconnected.)
4.
Disconnect
the
four
air
hoses
Q)
from
the
speed control joints 0 on the
right
and
left
carriage feeds.
(2) Removing
the
carriage feed
·
1.
Remove
the
two
bolts 0 and
the
carriage feed assembly
8.
-30-
