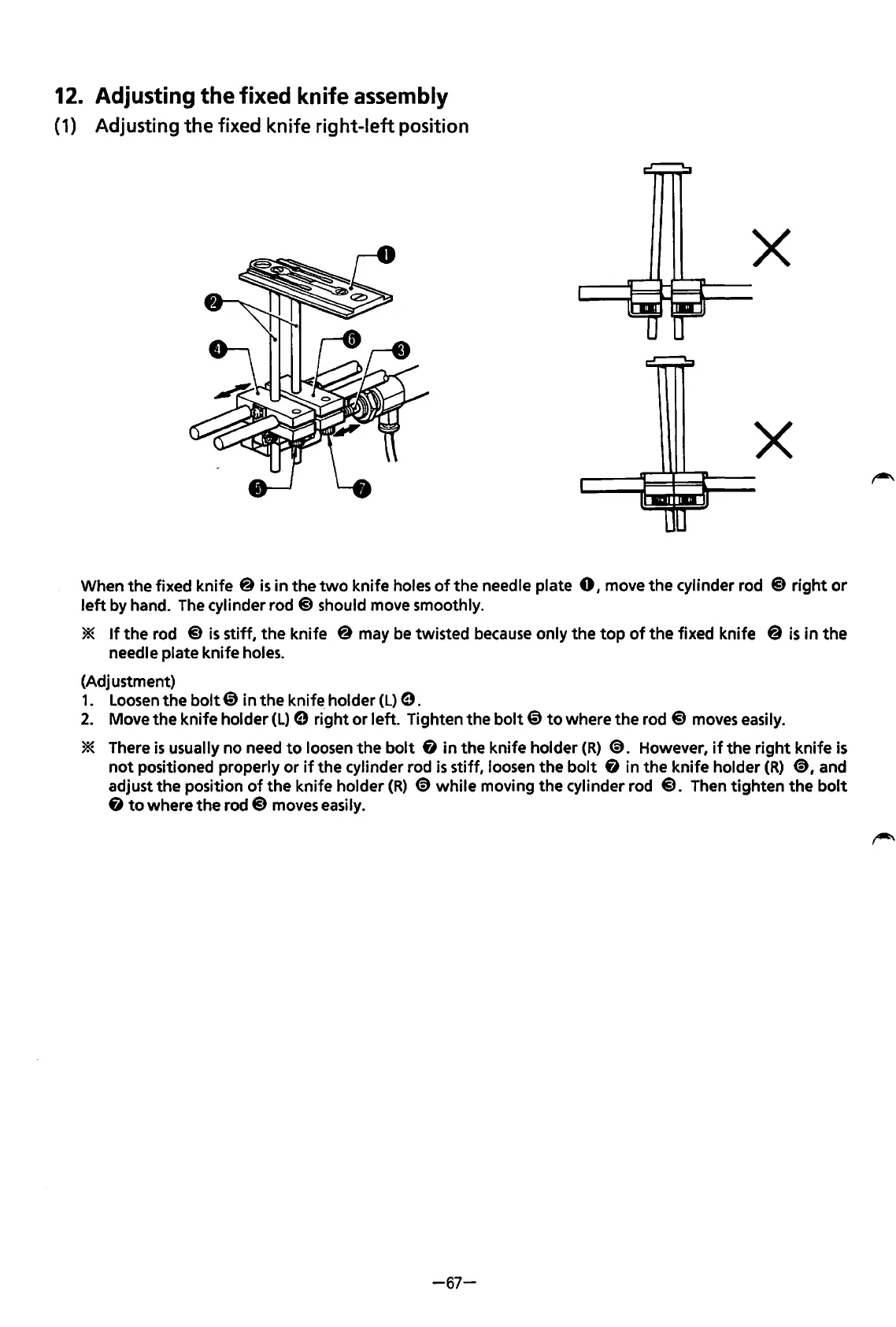

12. Adjusting the fixed knife assembly
(1) Adjusting the fixed knife right-left position
X
X
When the fixed knife @ is in the two knife holes of the needle plate 0, move the cylinder rod @ right or
left by hand. The cylinder rod @ should move smoothly.
* If the rod @) is stiff, the knife @ may be twisted because only the top of the fixed knife @ is in the
needle plate knife holes.
(Adjustment)
1. Loosen the bolt@ in the knife holder (L) 9.
2. Move the knife holder (L) e ri.ght or left. Tighten the bolt@ to where the rod @ moves easily.
* There is usually no need to loosen the bolt 6 in the knife holder (R) @. However, if the right knife is
not positioned properly or if the cylinder rod is stiff, loosen the bolt 6 in the knife holder (R) @, and
adjust
the position of the knife holder (R) @while moving the cylinder rod @. Then tighten the bolt
6 to where the rod@ moves easily.
