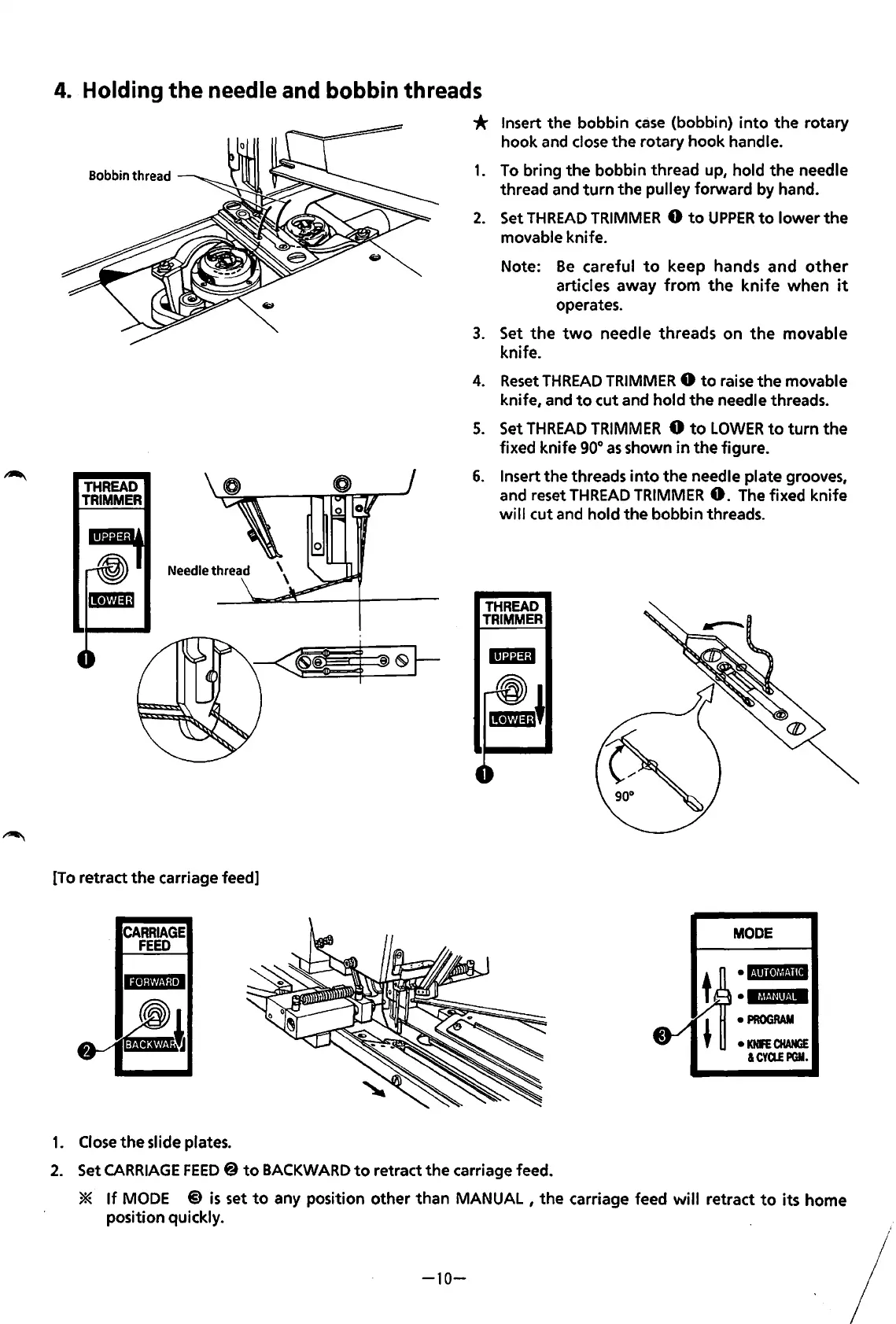

4. Holding
the
needle and bobbin threads
* Insert the bobbin
case
(bobbin)
into
the rotary
hook
and
close
the rotary hook handle.
Bobbin thread
1.
To
bring the bobbin thread up, hold
the
needle
THREAD
TRIMMER
[To
retract the carriage feed]
CARRIAGE
FEED
1.
Close
the
slide plates.
thread and
turn
the pulley forward by hand.
2.
Set
THREAD
TRIMMER
0
to
UPPER
to
lower the
movable knife.
Note:
Be
careful
to
keep hands and
other
articles away
from
the
knife
when
it
operates.
3.
Set
the
two
needle threads on
the
movable
knife.
4.
Reset
THREAD
TRIMMER
0
to
raise
the
movable
knife,
and
to
cut and hold
the
needle threads.
5.
Set
THREAD
TRIMMER
0
to
LOWER
to
turn
the
fixed knife
90°
as
shown in the figure.
6.
Insert the threads
into
the needle plate grooves,
and reset
THREAD
TRIMMER
0.
The
fixed knife
wi
II
cut
and
hold the bobbin threads.
THREAD
TRIMMER
MODE
•l·iiiitiij.Jil
• 16t.!ilit4M
•
PROGRAM
•
KNfE
CHANGE
&CYa.EPGM.
2.
Set
CARRIAGE
FEED
8
to
BACKWARD
to
retract
the
carriage feed.
*
If
MODE
@)
is
set
to
any position other than
MANUAL,
the carriage feed will retract
to
its home
position quickly.
-10-
