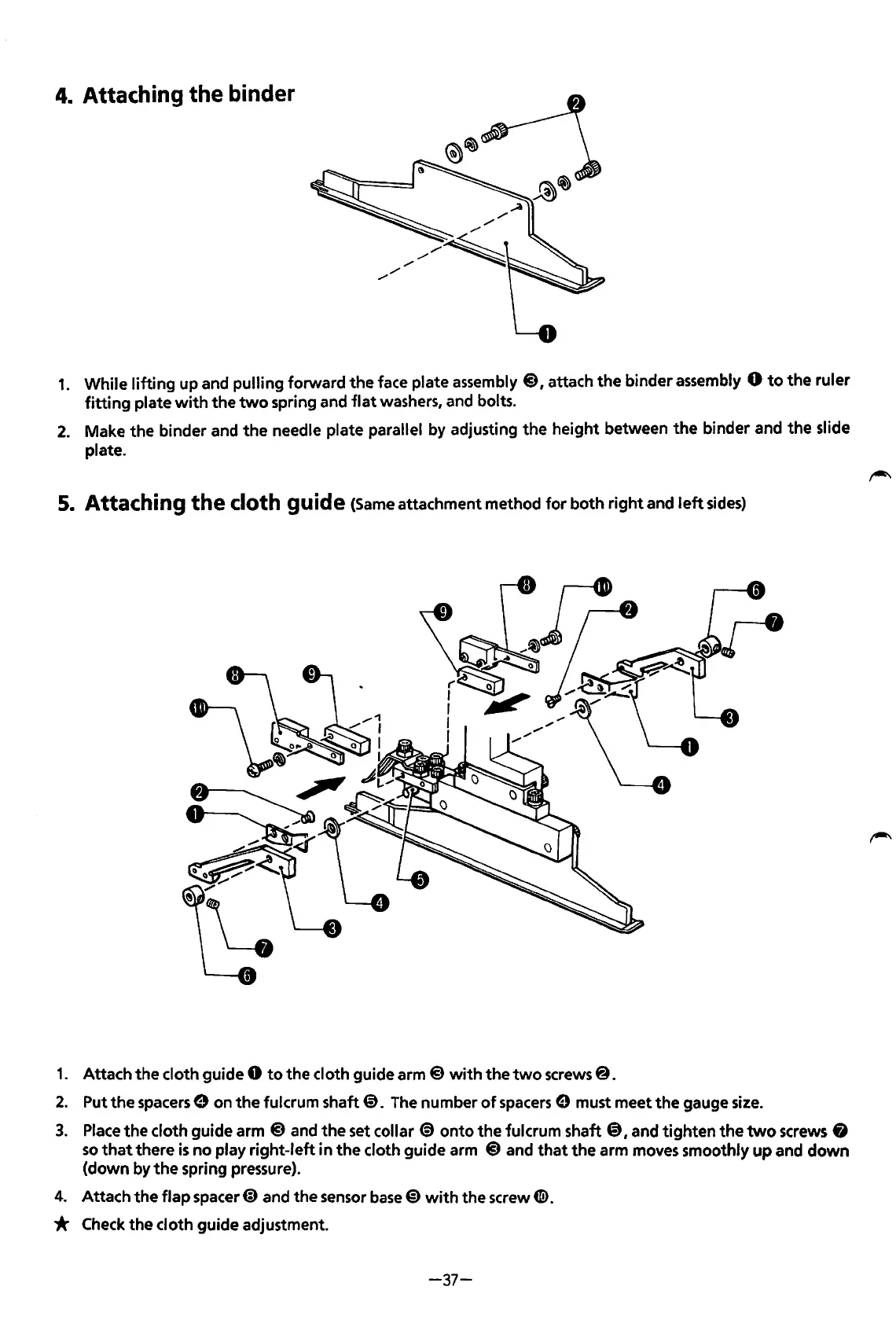

4. Attaching
the
binder
1.
While
lifting
up and pulling forward
the
face plate assembly @),attach
the
binder assembly 0
to
the
ruler
fitting
plate
with
the
two
spring and
flat
washers, and bolts.
2.
Make
the
binder and
the
needle plate parallel by adjusting
the
height between
the
binder and
the
slide
plate.
5.
Attaching
the
cloth guide
(Same
attachment method
for
both
right
and
left
sides)
1.
Attach
the
cloth guide 0
to
the
cloth guide
arm@
with
the
two
screws
8.
2.
Put
the
spacers
9 on
the
fulcrum
shaft@.
The number
of
spacers
9 must meet
the
gauge size.
3.
Place
the
cloth guide arm
@)
and
the
set collar @
onto
the
fulcrum shaft
@),
and
tighten
the
two
screws 8
so
that
there
is
no
play
right-left
in
the
cloth guide arm
@)
and
that
the
arm moves smoothly
up
and
down
(down by
the
spring pressure).
4. Attach
the
flap
spacer@)
and the sensor
base
€>
with
the screw
CID.
* Check the cloth guide adjustment.
-37-
