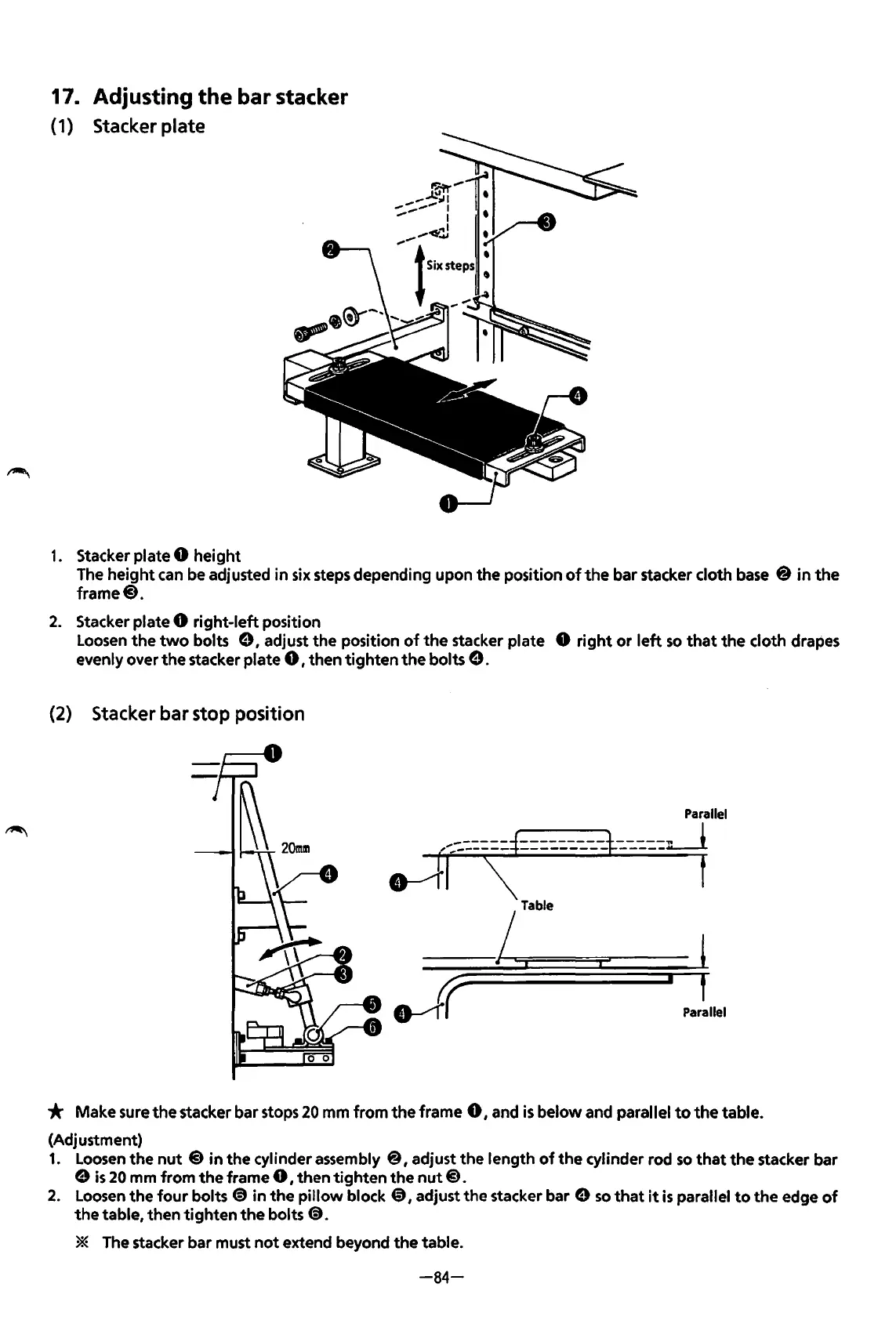

17.
Adjusting
the
bar stacker
(1)
Stacker plate
1.
Stacker plate 0 height
The
height
can
be adjusted in
six
steps depending upon
the
position
of
the
bar stacker cloth
base
@
in
the
frame@.
2.
Stacker plate 0
right-left
position
Loosen
the
two
bolts
9,
adjust
the
position
of
the
stacker plate 0
right
or
left
so
that
the
cloth drapes
evenly over
the
stacker plate
0,
then
tighten
the
bolts
e.
(2)
Stacker bar stop position
Parallel
,,--~---------1-----~
.-+r
______
---------
-----
1
I Table
~
I
I
I
f
Parallel
* Make sure
the
stacker bar stops
20
mm from
the
frame 0 I and
is
below and parallel
to
the
table.
(Adjustment)
1.
Loosen
the
nut
@
in
the cylinder assembly @
1
adjust the length
of
the
cylinder rod
so
that
the
stacker bar
e
is
20
mm from
the
frame 01 then
tighten
the
nut
(9
•
2.
Loosen
the
four
bolts (!)
in
the
pillow
block
@,
adjust
the
stacker bar 9
so
that
it
is
parallel
to
the
edge
of
the
table, then
tighten
the
bolts
(E).
* The stacker bar must
not
extend beyond
the
table.
-84-
