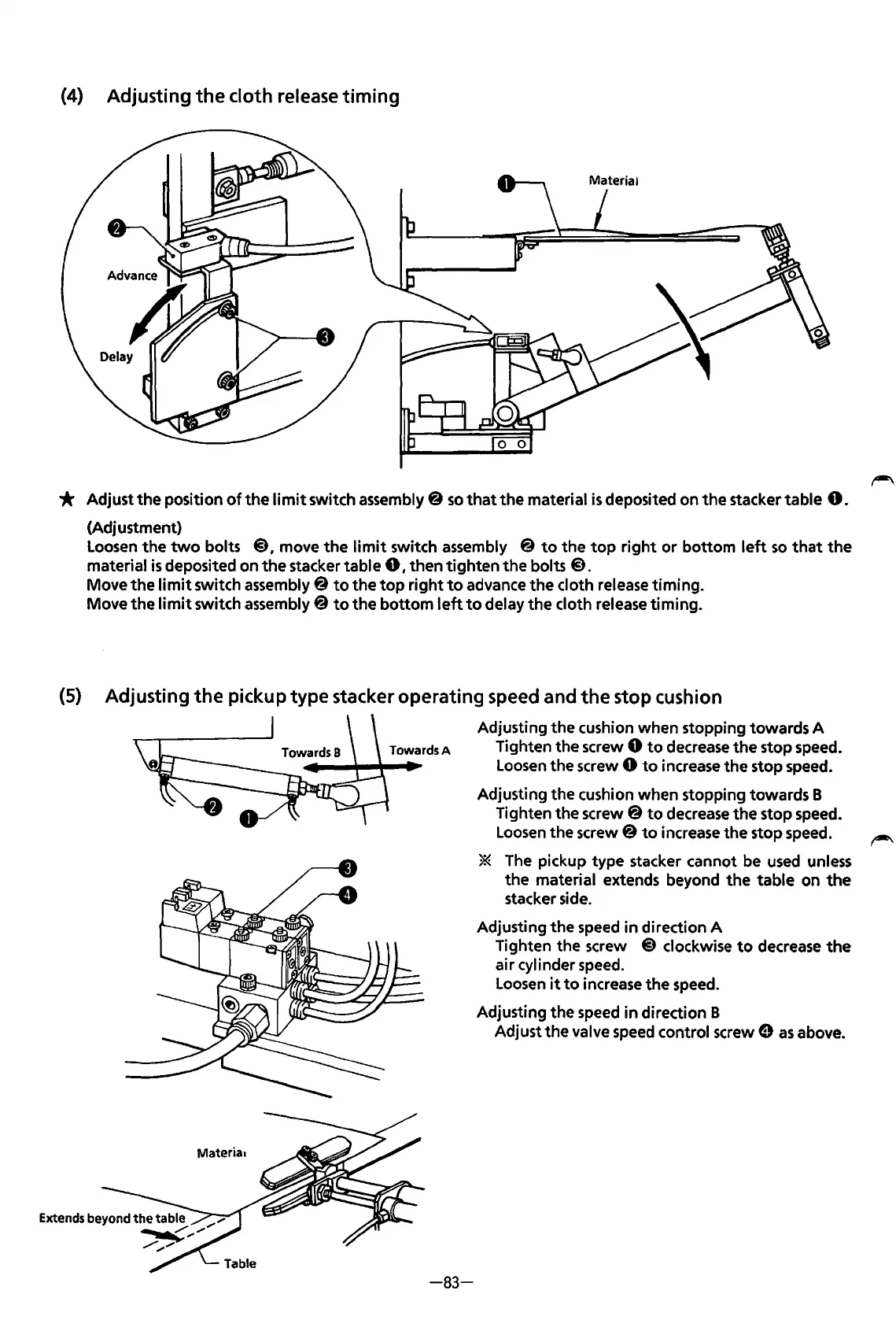

(4)
Adjusting
the
cloth release
timing
* Adjust
the
position
of
the
limit switch assembly@ so
that
the
material
is
deposited
on
the
stacker
table
8.
(Adjustment)
loosen
the
two
bolts @
1
move
the
limit switch assembly @
to
the
top
right or bottom left so
that
the
material
is
deposited on
the
stacker table 8
1
then
tighten
the
bolts
@.
Move
the
limit switch assembly 8
to
the
top
right
to
advance
the
cloth release timing.
Move
the
limit switch assembly@
to
the
bottom left
to
delay
the
cloth release timing.
(5)
Adjusting
the
pickup type stacker operating speed and
the
stop cushion
Adjusting
the
cushion when stopping towards A
Towards A Tighten
the
screw 8
to
decrease
the
stop speed.
•-•-.
.....
~
loosen
the
screw 8
to
increase
the
stop speed.
-83-
Adjusting
the
cushion when stopping towards 8
Tighten
the
screw @
to
decrease
the
stop speed.
Loosen
the
screw@
to
increase
the
stop speed.
* The pickup type stacker cannot be used unless
the
material extends beyond
the
table
on
the
stacker side.
Adjusting
the
speed in direction A
Tighten
the
screw @ clockwise
to
decrease
the
air cylinder speed.
loosen it
to
increase
the
speed.
Adjusting
the
speed
in
direction 8
Adjust
the
valve speed control screw e as above.
