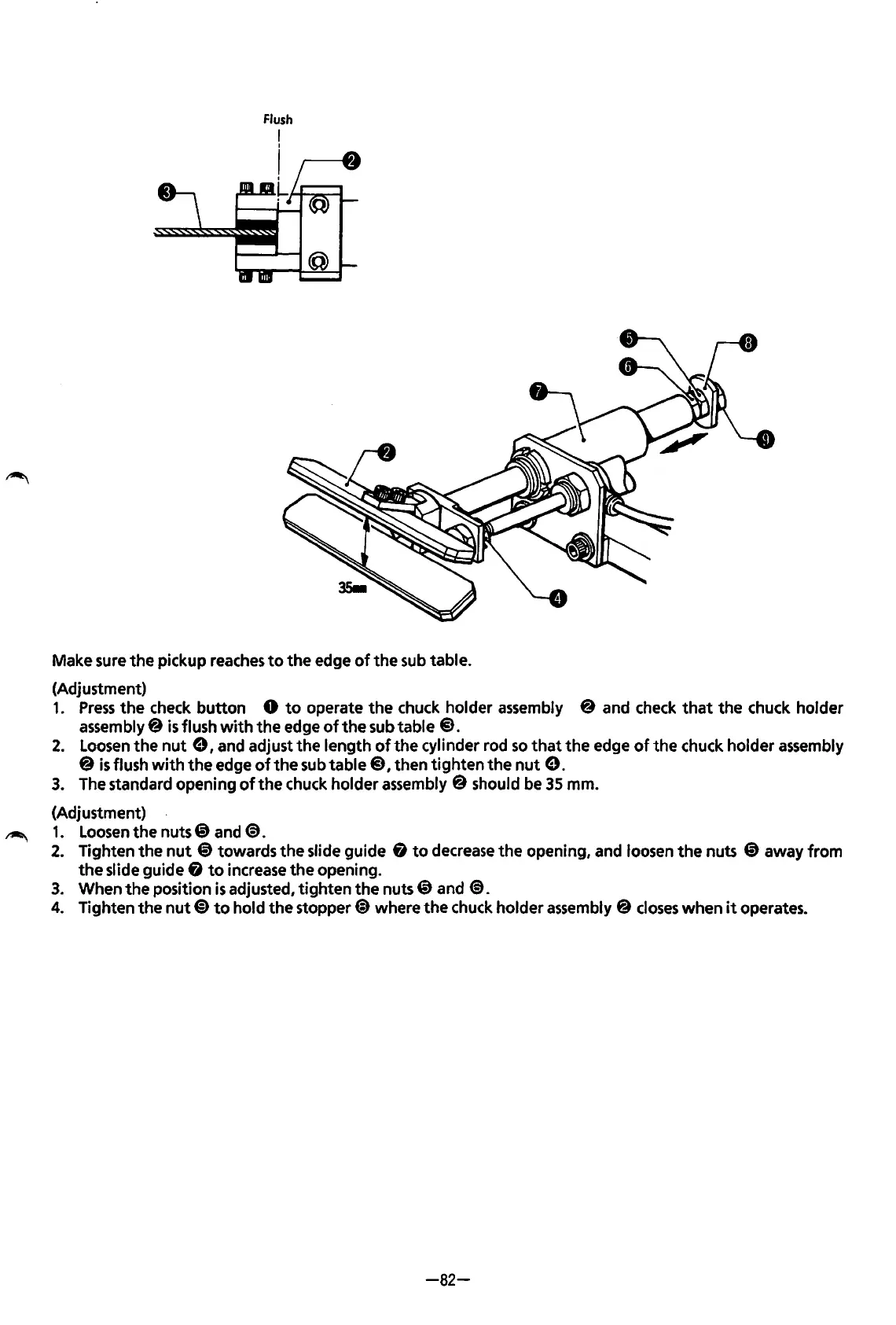

Make sure
the
pickup reaches
to
the
edge
of
the
sub
table.
(Adjustment)
1.
Press
the
check
button
0
to
operate
the
chuck holder assembly @ and check
that
the chuck holder
assembly@
is
flush
with
the
edge
of
the
sub table
@.
2.
Loosen
the
nut
e,
and adjust
the
length
of
the
cylinder rod
so
that
the
edge
of
the
chuck holder assembly
@
is
flush
with
the
edge
of
the
sub
table@) 1 then
tighten
the
nut
e •
3.
The standard opening
of
the
chuck holder assembly @ should be 35 mm.
(Adjustment)
1.
Loosen
the
nuts@ and
@.
2.
Tighten
the
nut
4i towards
the
slide guide 8
to
decrease
the
opening, and loosen
the
nuts
t9
away from
the
slide guide &
to
increase
the
opening.
3.
When
the
position
is
adjusted,
tighten
the
nuts
€)
and
<9.
4. Tighten
the
nut@)
to
hold
the
stopper@ where
the
chuck holder assembly 8 doses when
it
operates.
-82-
