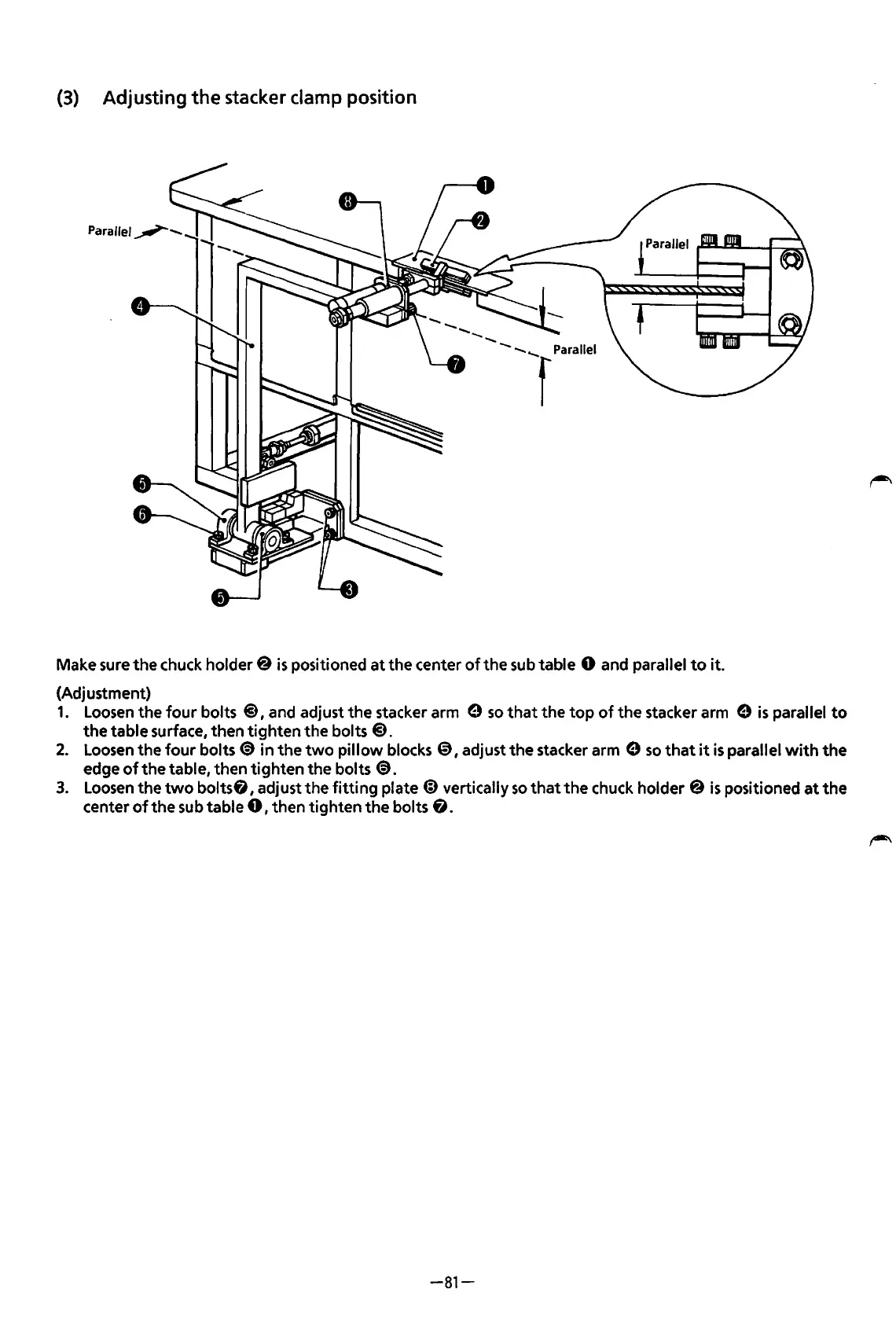

(3)
Adjusting
the
stacker clamp position
Make sure
the
chuck
holder@
is
positioned
at
the center
of
the
sub
table 0 and parallel
to
it.
(Adjustment)
1.
Loosen
the
four
bolts
@I
and adjust
the
stacker arm e
so
that
the
top
of
the
stacker arm e
is
parallel
to
the
table surface, then
tighten
the bolts
@.
2.
Loosen
the
four
bolts
€)
in
the
two
pillow
blocks@ I adjust
the
stacker arm e
so
that
it
is
parallel
with
the
edge
of
the table, then
tighten
the
bolts
@.
3.
Loosen
the
two
bolts&
I adjust the
fitting
plate @ vertically
so
that
the
chuck
holder@
is
positioned
at
the
center
of
the
sub
table 0 I then tighten
the
bolts fJ.
-81-
