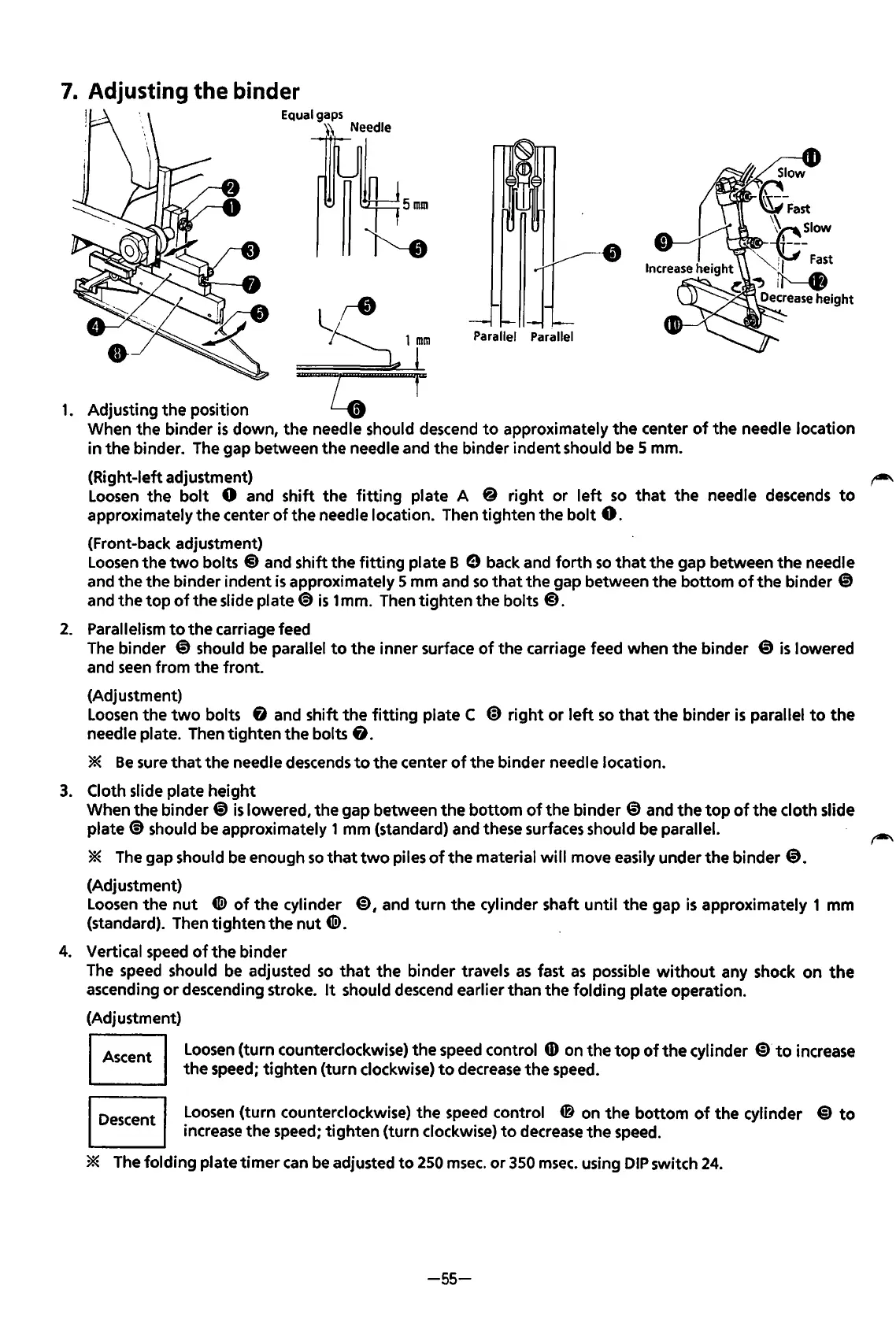

7. Adjusting
the
binder
! Equalgaps
\\
Needle
l;-0
~
lmm
? !
1.
Adjusting
the
position
Z:O
r
When
the
binder
is
down,
the
needle should descend
to
approximately
the
center
of
the
needle location
in
the
binder. The gap between
the
needle and the binder indent should be 5 mm.
(Right-left adjustment)
Loosen
the
bolt
0 and shift
the
fitting
plate A @
right
or
left
so
that
the
needle
descends
to
approximately
the
center
of
the
needle location. Then tighten
the
bolt
0.
(Front-back adjustment)
Loosen
the
two
bolts
@)
and shift
the
fitting
plate B 9 back and
forth
so
that
the
gap between
the
needle
and
the
the binder indent
is
approximately 5 mm and
so
that
the
gap between
the
bottom
of
the
binder
@)
and
the
top
of
the
slide plate
€)
is
1 mm. Then
tighten
the bolts
@).
2.
Parallelism
to
the
carriage feed
The binder
@}should be parallel
to
the
inner surface
of
the
carriage feed when
the
binder @)is lowered
and
seen
from
the
front.
(Adjustment)
Loosen
the
two
bolts & and shift
the
fitting
plate C
@)
right
or
left
so
that
the
binder
is
parallel
to
the
needle plate. Then
tighten
the
bolts & .
*
Be
sure
that
the
needle descends
to
the
center
of
the
binder needle location.
3.
Cloth slide plate height
When
the
binder@
is
lowered, the gap between
the
bottom
of
the binder @ and
the
top
of
the
cloth slide
plate
€)
should be approximately 1 mm (standard) and these surfaces should be parallel.
* The gap should
be
enough
so
that
two
piles
of
the
material
will
move easily under
the
binder
@).
(Adjustment)
Loosen
the
nut
CID
of
the
cylinder
@),
and
turn
the
cylinder shaft until
the
gap
is
approximately 1 mm
(standard). Then
tighten
the
nut
CID.
4.
Vertical
speed
of
the
binder
The
speed
should
be
adjusted
so
that
the
binder travels
as
fast
as
possible
without
any shock on
the
ascending
or
descending stroke.
It
should descend earlier than the folding plate operation.
(Adjustment)
I Ascent I loosen (turn counterclockwise)
the
speed control
G)
on
the
top
of
the
cylinder @)to increase
the
speed;
tighten
(turn clockwise)
to
decrease
the
speed.
~
Loosen
(turn counterclockwise)
the
speed
control 0 on
the
bottom
of
the
cylinder
@)to
l==.J increase
the
speed;
tighten
(turn clockwise)
to
decrease
the
speed.
* The folding plate
timer
can
be
adjusted
to
250
msec.
or
350
msec.
using
DIP
switch
24.
-55-
