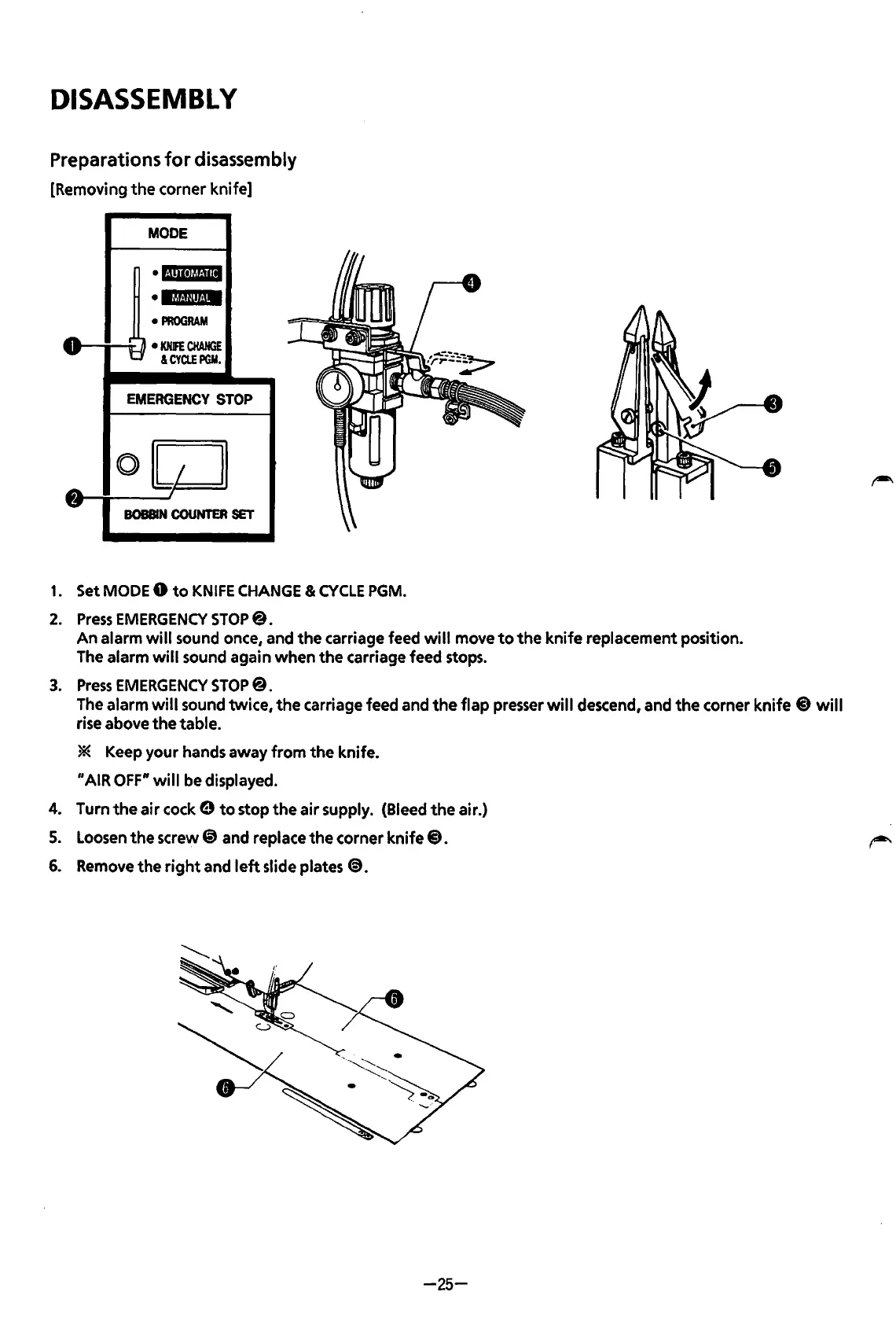

DISASSEMBLY
Preparations for disassembly
[Removing the corner knife]
MODE
•1·!111·1~!·111
• ltl!·llll!·l·
• PROGRAM
..
· 9 • KNIFE CHANGE
v
&CYa.EPGM.
EMERGENCY STOP
0
I I
~ I
""
BOBBIN COUNTER SET
1. Set MODE 0 to KNIFE CHANGE & CYCLE PGM.
2. Press EMERGENCY STOP@.
An alarm will sound once, and the carriage feed will move to the knife replacement position.
The alarm
will sound again when the carriage feed stops.
3. Press EMERGENCY STOP@.
The alarm will sound twice, the carriage feed and the flap presser will descend, and the corner knife @ will
rise above the table.
* Keep your hands away from the knife.
"AIR OFF" will be displayed.
4. Turn
the air cock 9 to stop the air supply. (Bleed the air.)
5. Loosen the screw@) and replace the corner knife 8.
6. Remove the right and left slide plates 8.
