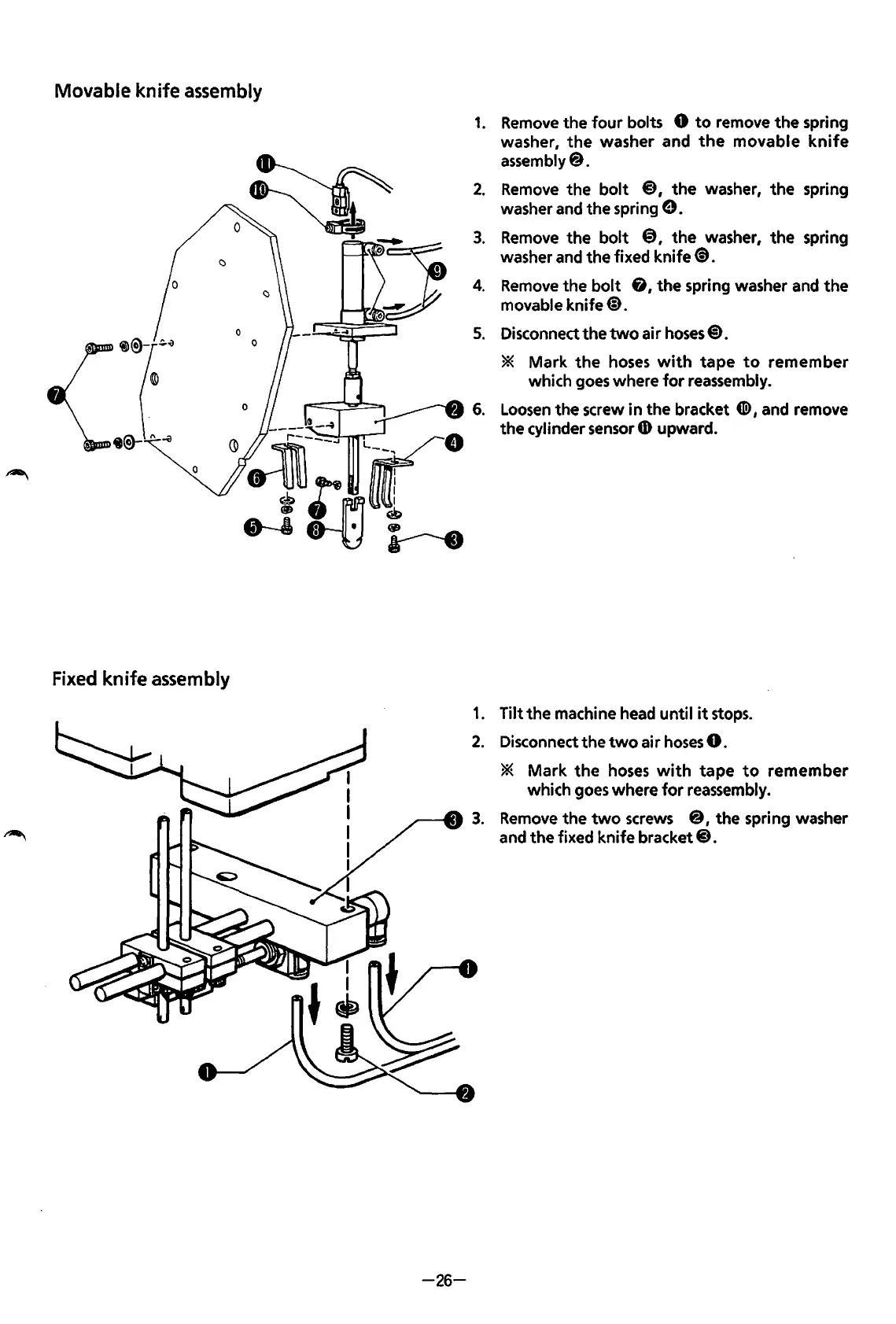

Movable knife assembly
Fixed
knife assembly
-26-
1. Remove the four bolts 8 to remove the spring
washer,
the washer and the movable knife
assembly@.
2. Remove the bolt @, the washer, the spring
washer
and the spring e.
3. Remove the bolt @, the washer, the spring
washer
and the fixed knife(!).
4. Remove the bolt &, the spring washer and the
movable knife@.
5. Disconnect the two air hoses@).
* Mark the hoses with tape to remember
which
goes where for reassembly.
6. Loosen the screw in the bracket 4D>, and remove
the
cylinder sensor 4D upward.
1. Tilt the machine head until it stops.
Disconnect the two air hoses 8.
* Mark the hoses with tape to remember
which
goes where for reassembly.
Remove the two screws @,the spring washer
and the fixed knife
bracket@.
