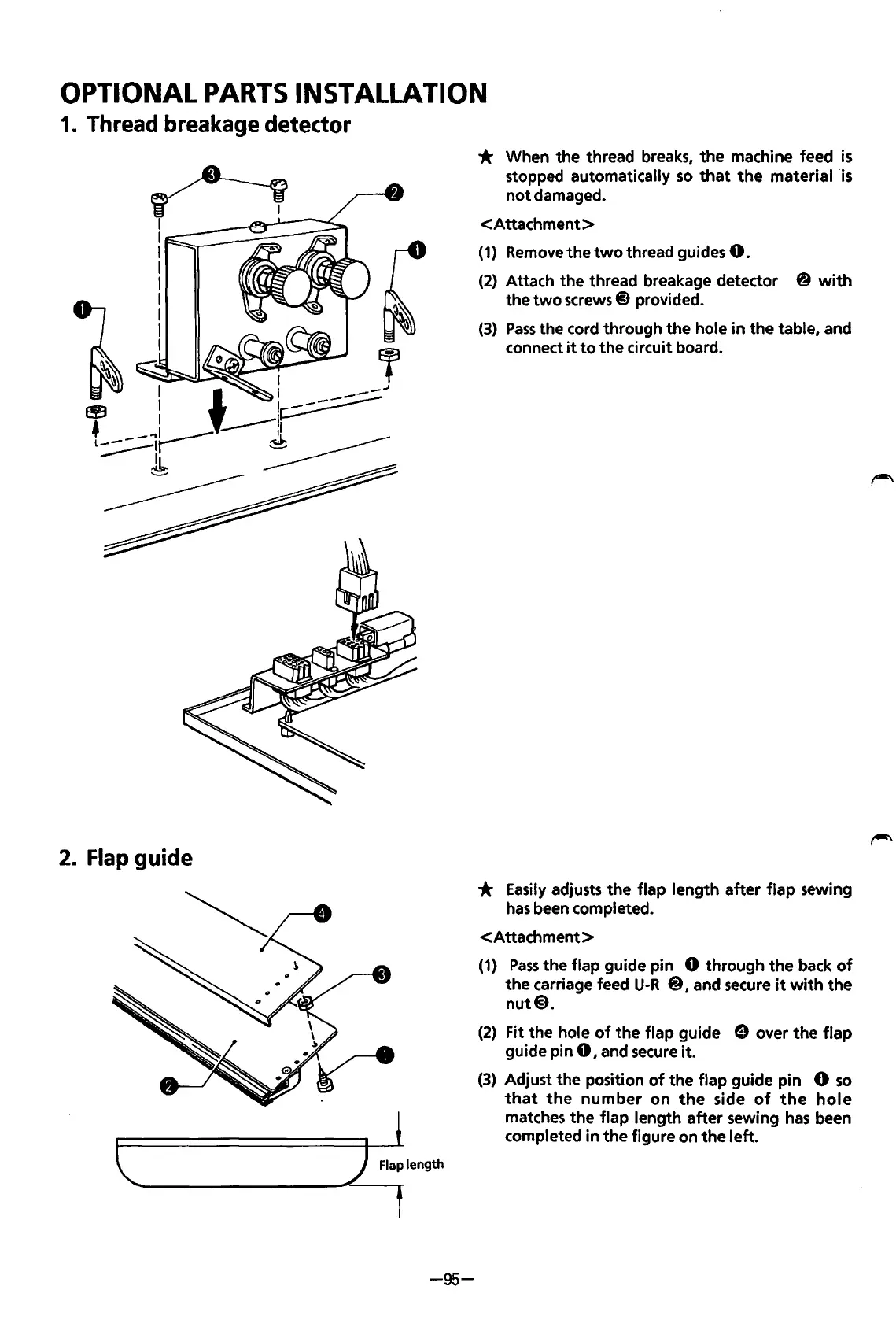

OPTIONAL
PARTS
INSTALLATION
1.
Thread
breakage
detector
~
I
-..~----~
I
1•---..::::--
1
I
I
I
I
I
2.
Flap
guide
C )
Flap
length
....___
____
f
-95-
* When the thread
breaks,
the machine feed
is
stopped automatically
so
that
the material
is
not damaged.
<Attachment>
(1)
Removethetwothread guides
0.
(2)
Attach the thread breakage detector @
with
the
two
screws@
provided.
(3)
Pass
the cord through the hole in the table, and
connect
it
to
the circuit board.
*
Easily
adjusts the flap length after flap sewing
has
been
completed.
<Attachment>
(1)
Pass
the flap guide pin 0 through the
back
of
the carriage feed
U-R
@,
and
secure
it
with
the
nut@.
(2)
Fit the hole
of
the flap guide 8 over the flap
guide pin
0,
and
secure
it.
(3)
Adjust the position
of
the flap guide pin 0
so
that
the
number
on
the
side
of
the
hole
matches the flap length after sewing
has
been
completed in the figure on the left.
