ADJUSTMENT

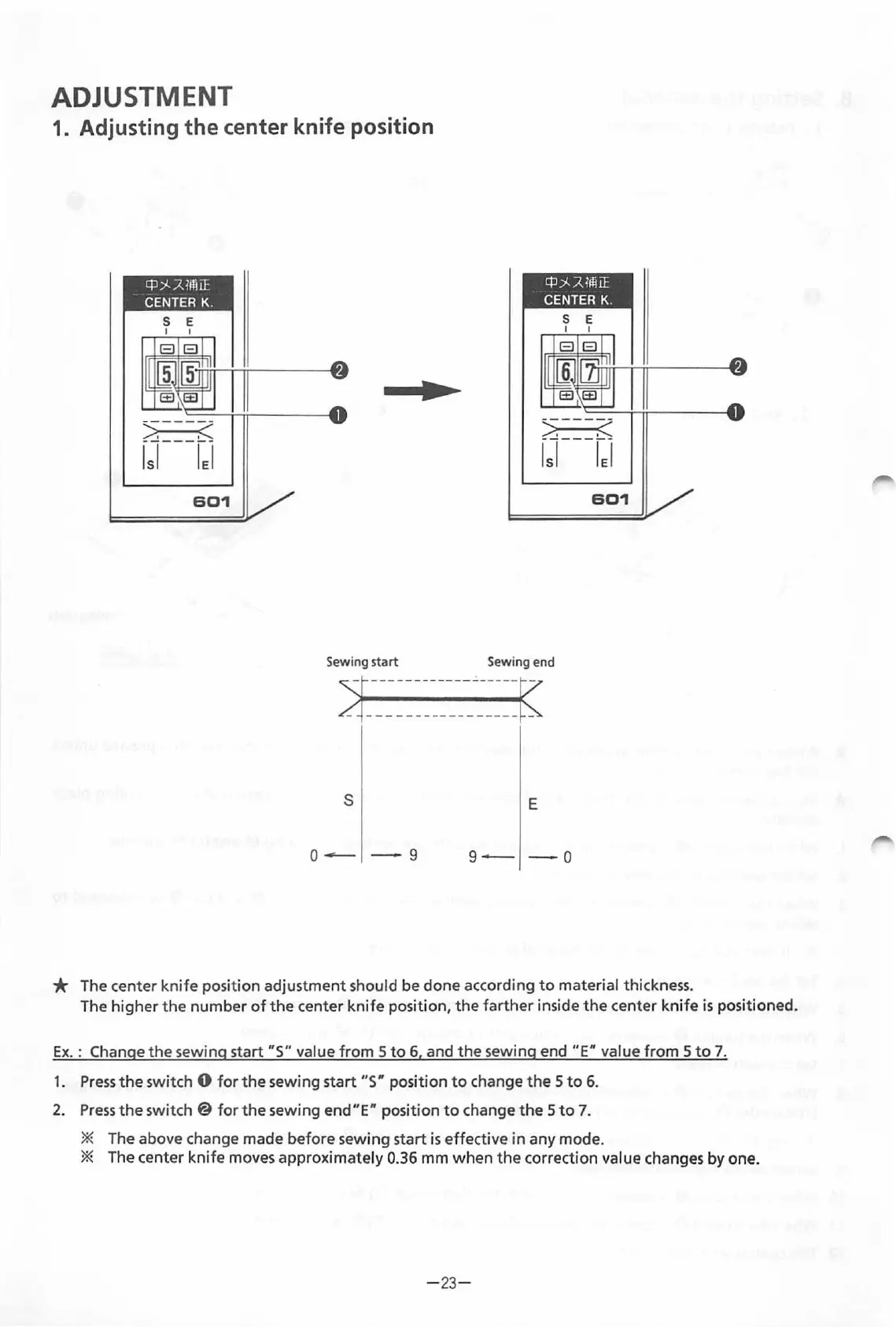

1. Adjusting the center knife position
cp ;>(. .:;z Uli iE
CENTER K.
601
..
Sewing sta rt
cp )I. :;z 1fli iE
CENTER K.
601
Sewing end
~------------~- -- --~
- ------- -- -- -- -- -- -
s
E
o --- -9
9- -o
* The center knife position adjustment should be done according to material thickness.
The
high er the number of the center knife position, the farther inside the center knife is positioned.
Ex. : Change the sewing start "5" value from 5 to 6, and the sewing end "E" value from 5 to 7.
1. Press the switch 0 for the sewing start "5" position to change the 5 to 6.
2. Press the switch@ for the sewing end"E" position to change the 5 to 7.
* The above change made before sewing start is effective in any mode.
* The center knife moves approximately 0.36 mm when the correct ion value changes by one.
- 23-
