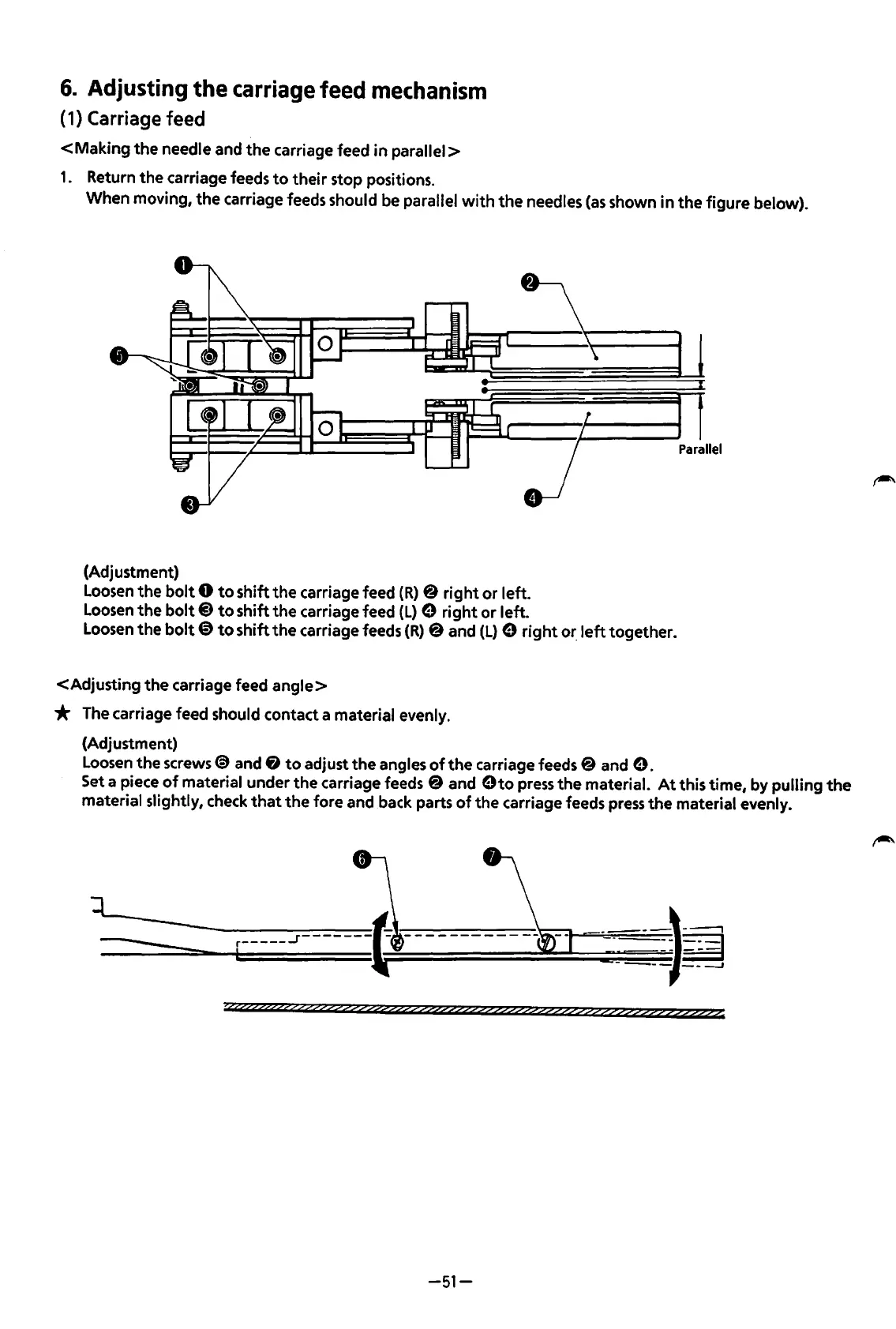

6.
Adjusting
the
carriage
feed
mechanism
(1) Carriage feed
<Making
the
needle and
the
carriage feed in parallel>
1.
Return
the
carriage feeds
to
their stop positions.
When moving,
the
carriage feeds should be parallel with
the
needles (as shown in
the
figure below).
(Adjustment)
Loosen
the
bolt 0
to
shift
the
carriage feed (R)@ right or left.
Loosen
the
bolt@
to
shift
the
carriage feed
(L)
$ right or left.
Loosen
the
bolt@)
to
shift
the
carriage feeds
(R)
@ and
(L)
8 right
or.
left together.
<Adjusting
the
carriage feed
angle>
* The carriage feed should contact a material evenly.
(Adjustment)
Loosen
the
screws@ and 8
to
adjust
the
angles of
the
carriage feeds@ and
e.
Parallel
Set a piece
of
material under
the
carriage feeds @ and
$to
press
the
material. At this time, by pulling
the
material slightly, check
that
the
fore and back parts of
the
carriage feeds press
the
material evenly.
>zpzzypzppzzzpzzz??&?&????&azzzz&&&???&Z????Z&???Z&&??
-51-
