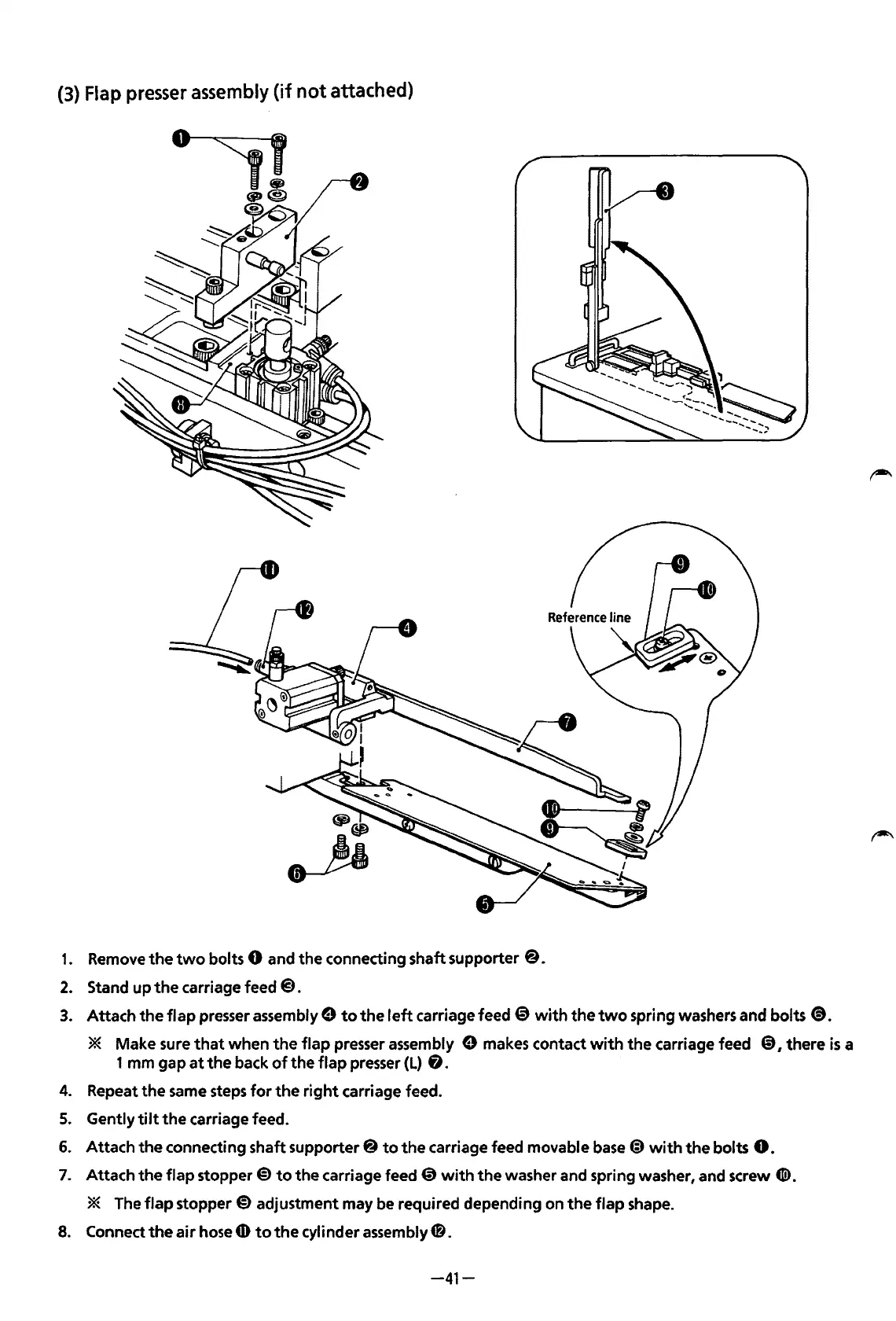

(3) Flap presser assembly
(if
not
attached)
1.
Remove
the
two
bolts 0 and
the
connecting shaft supporter
@.
2.
Stand up
the
carriage feed
@.
3. Attach
the
flap presser assembly e
to
the
left carriage feed @ with
the
two
spring washers and bolts
<D.
* Make sure
that
when
the
flap presser assembly e makes contact with
the
carriage feed
@),
there
is
a
1
mm
gap
at
the
back
of
the
flap presser
(L)
fJ.
4.
Repeat
the
same steps for
the
right carriage feed.
5.
Gently tilt
the
carriage feed.
6.
Attach
the
connecting shaft supporter@
to
the
carriage feed movable base@) with
the
bolts
0.
7.
Attach
the
flap stopper
€>
to
the
carriage feed @ with
the
washer and spring washer, and screw
CID.
* The flap stopper@) adjustment may be required depending on
the
flap shape.
8.
Connect
the
air hose
CD
to
the
cylinder assembly
CfJ.
-41-
