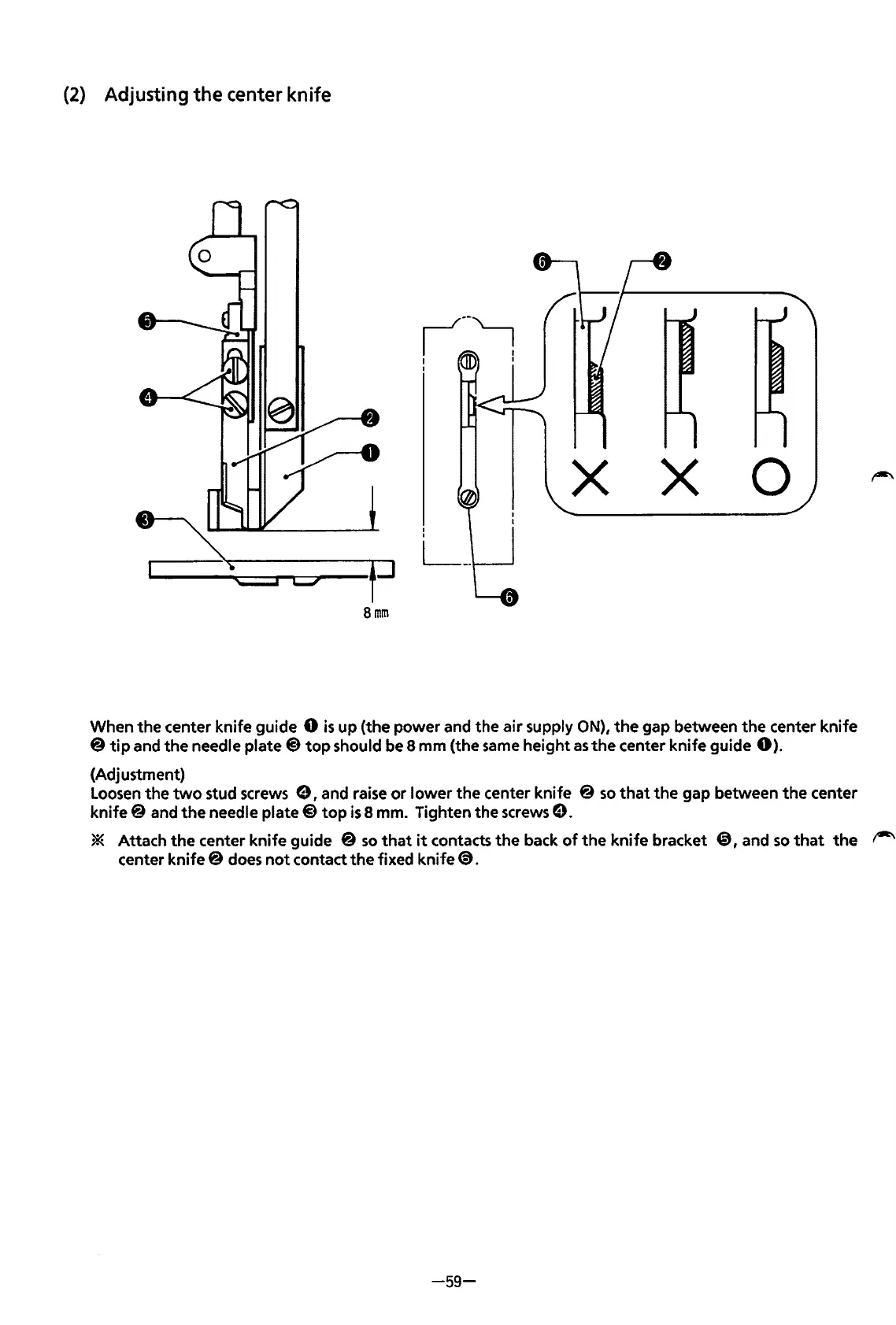

(2) Adjusting the center knife
X 0
LOJ t:::J
Smm
When the center knife guide 0 is up (the power and the air supply ON), the gap between the center knife
@tip and the needle plate@ top should be 8 mm (the same height as the center knife guide 0).
(Adjustment)
Loosen
the two stud screws e, and raise or lower the center knife @ so that the gap between the center
knife@ and the needle plate@ top is 8 mm. Tighten the screws e.
* Attach the center knife guide @ so that it contacts the back of the knife bracket @, and so that the r-"
center knife@ does not contact the fixed knife~.
