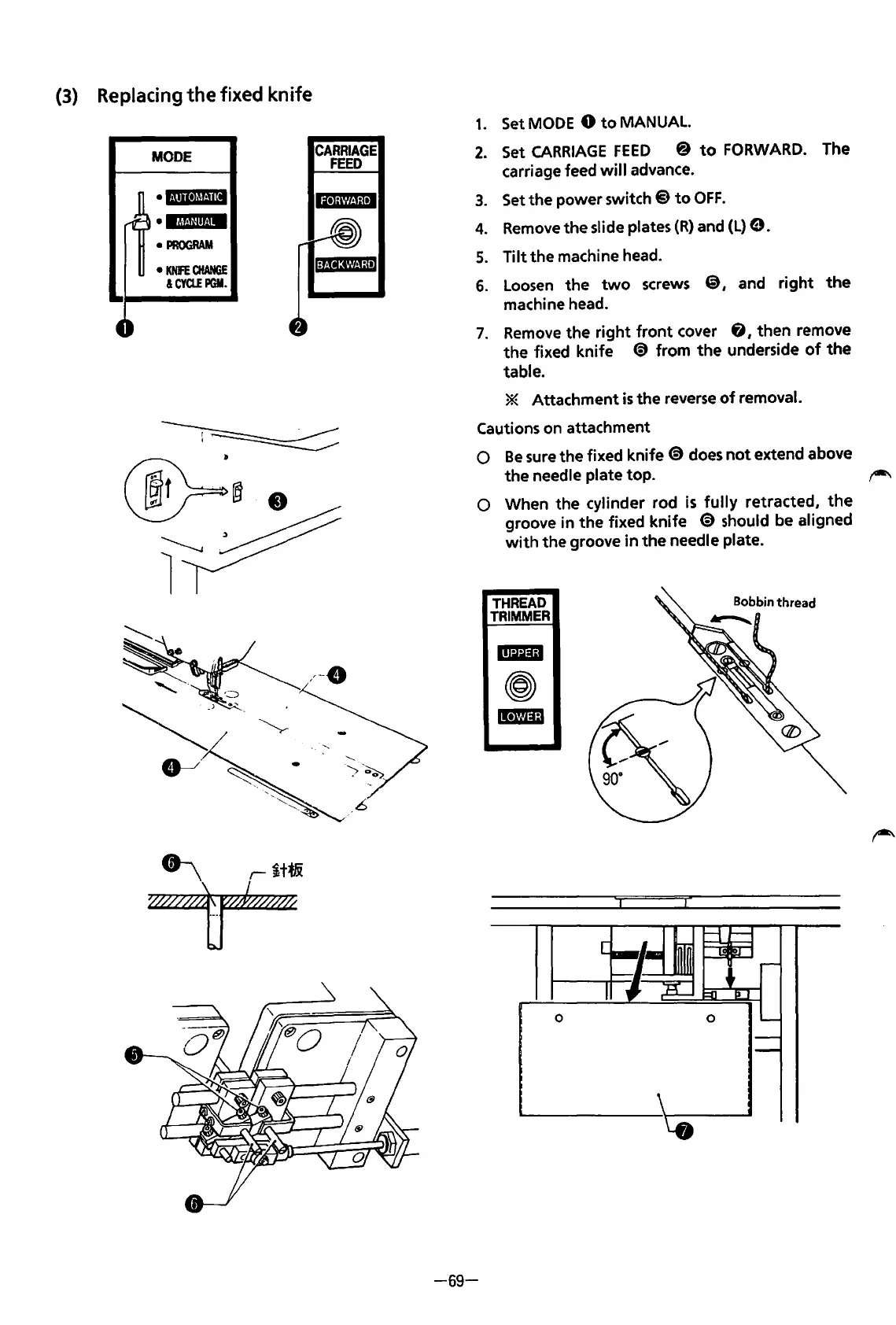

(3) Replacing the fixed knife
MODE
•1·!111•1~1!·!111
r1
• ltll!·!lll!·!·
• PROGRAM
• KNfE CHANGE
&CYQ.EPGM.
tt
CARRIAGE
FEED
1. Set MODE 0 to MANUAL.
2. Set CARRIAGE FEED @ to FORWARD. The
carriage feed
will advance.
3. Set the power switch@ to OFF.
4. Remove the slide plates (R) and (L) 8.
5. Tilt the machine head.
6. Loosen the two screws C9, and right the
machine head.
7. Remove the right front cover f), then remove
the fixed knife
<D from the underside of the
table.
* Attachment is the reverse of removal.
Cautions on attachment
0 Be sure the fixed knife <D does not extend above
the needle plate top.
~
0 When the cylinder rod is fully retracted, the
groove in the fixed knife <D should be aligned
-69-
with the groove in the needle plate.
