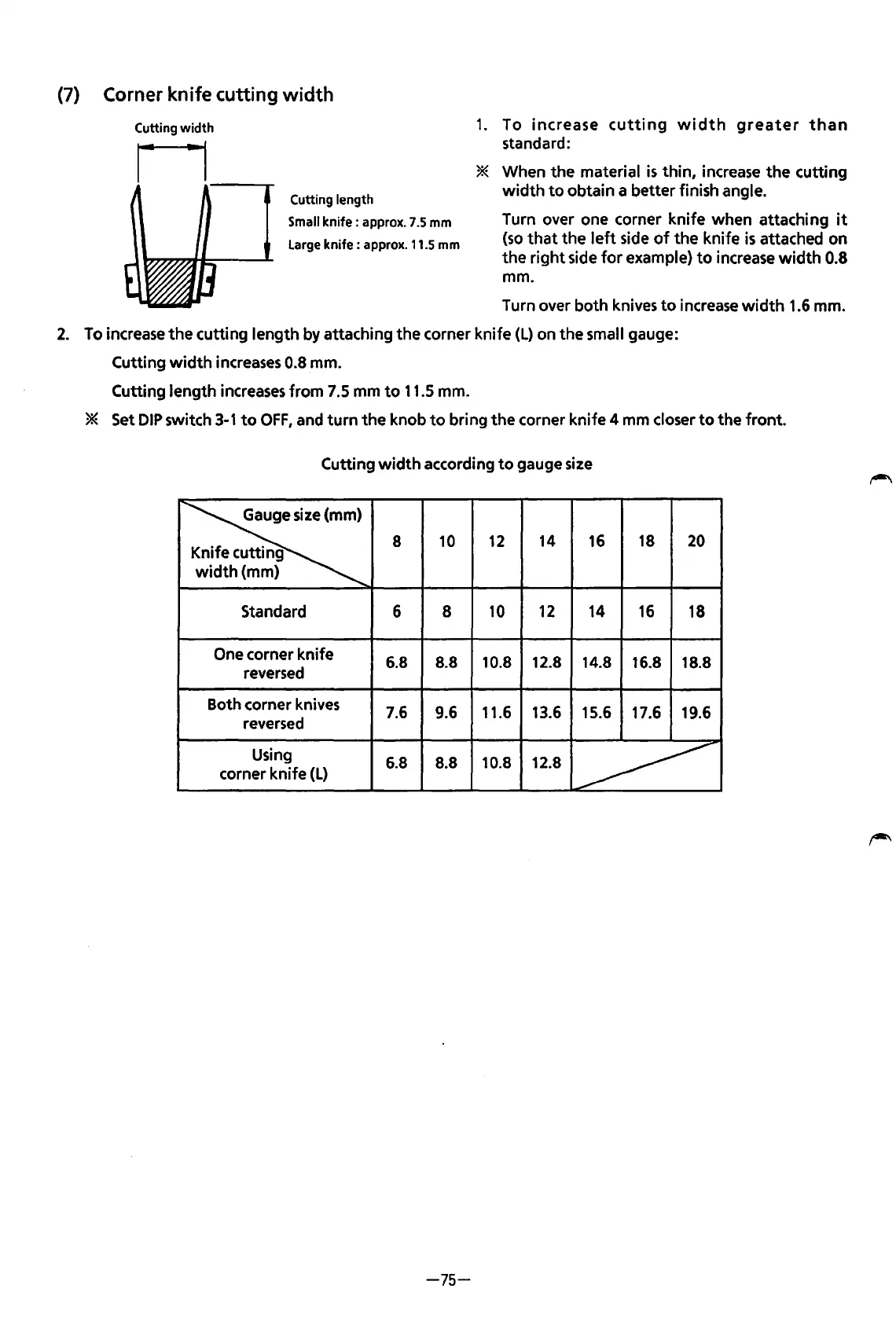

(7) Corner knife cutting width
Cutting width
M .. ~
Cutting length
Small
knife: approx. 7.5 mm
Large knife : approx. 11.5 mm
1. To increase cutting width greater than
standard:
* When the material is thin, increase the cutting
width to obtain a better finish angle.
Turn over one corner knife when attaching it
(so that the left side of the knife is attached on
the right side for example) to increase width 0.8
mm.
Turn over
both knives to increase width 1.6 mm.
2. To increase the cutting length by attaching the corner knife (L) on the small gauge:
Cutting width increases 0.8 mm.
Cutting length increases from 7.5 mm to 11.5 mm.
* Set DIP switch 3-1 to OFF, and turn the knob to bring the corner knife 4 mm closer to the front.
Cutting width according to gauge size
~
8 10
12
14
16
18
20
Standard
6
8 10
12 14
16
18
One corner knife
6.8
8.8
10.8
12.8 14.8
16.8 18.8
reversed
Both corner knives
7.6 9.6 11.6 13.6 15.6
17.6 19.6
reversed
Using
6.8 8.8
10.8 12.8
------
corner knife (L)
-75-
