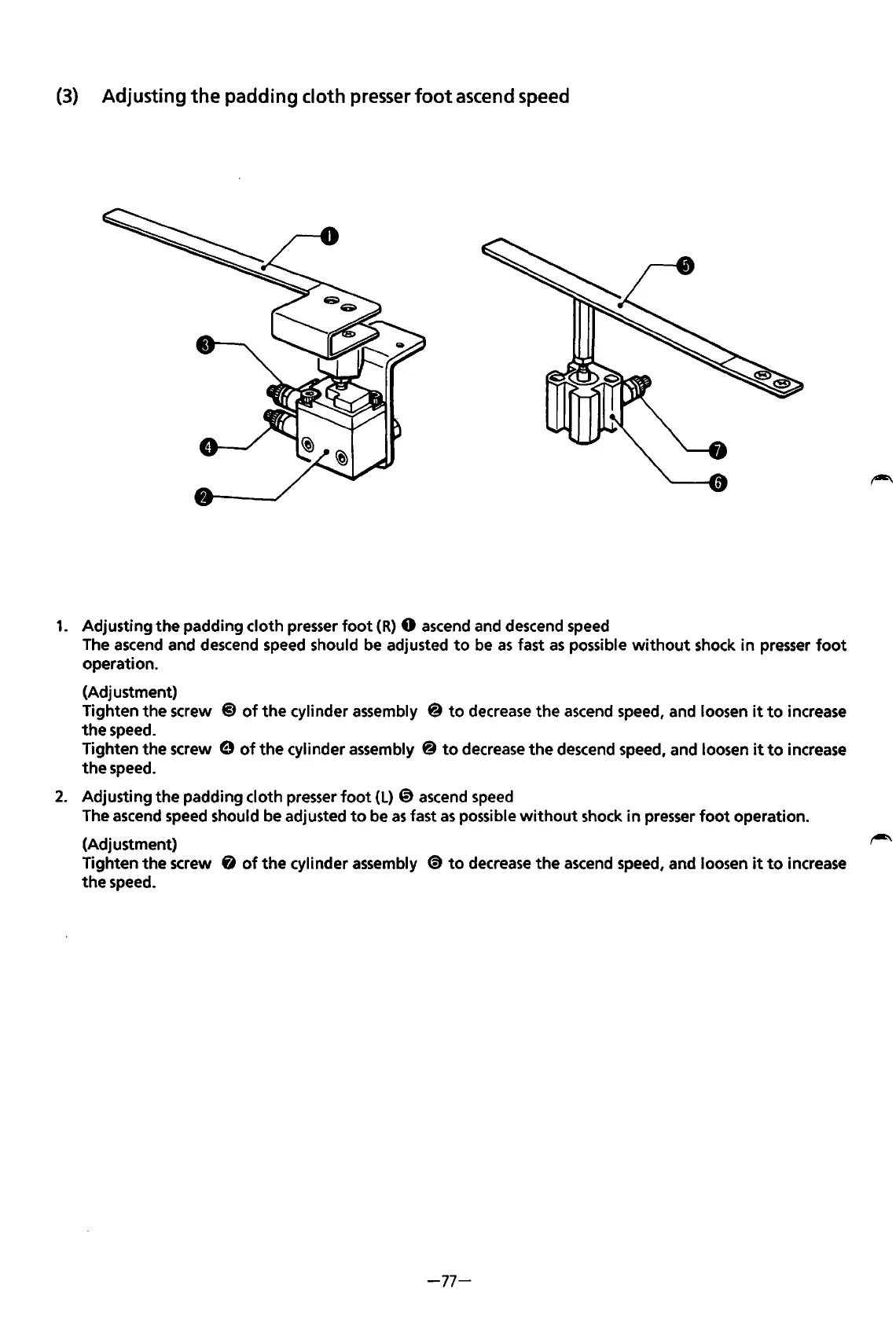

(3) Adjusting the padding cloth presser foot ascend speed
1. Adjusting the padding cloth presser foot (R) 0 ascend and descend speed
The ascend and descend speed should be adjusted to be as fast as possible without shock in presser foot
operation.
(Adjustment)
Tighten the screw @of the cylinder assembly @to decrease the ascend speed, and loosen it to increase
the speed.
Tighten the screw 9 of the cylinder assembly @ to decrease the descend speed, and loosen it to increase
the speed.
2. Adjusting the padding cloth presser foot (L)@ ascend speed
The ascend speed should be adjusted to be as fast as possible without shock in presser foot operation.
(Adjustment)
Tighten the screw f) of the cylinder assembly €} to decrease the ascend speed, and loosen it to increase
the speed.
