(2) Remove the two bind B M4x12 Taptite screws, and then remove the Plate.

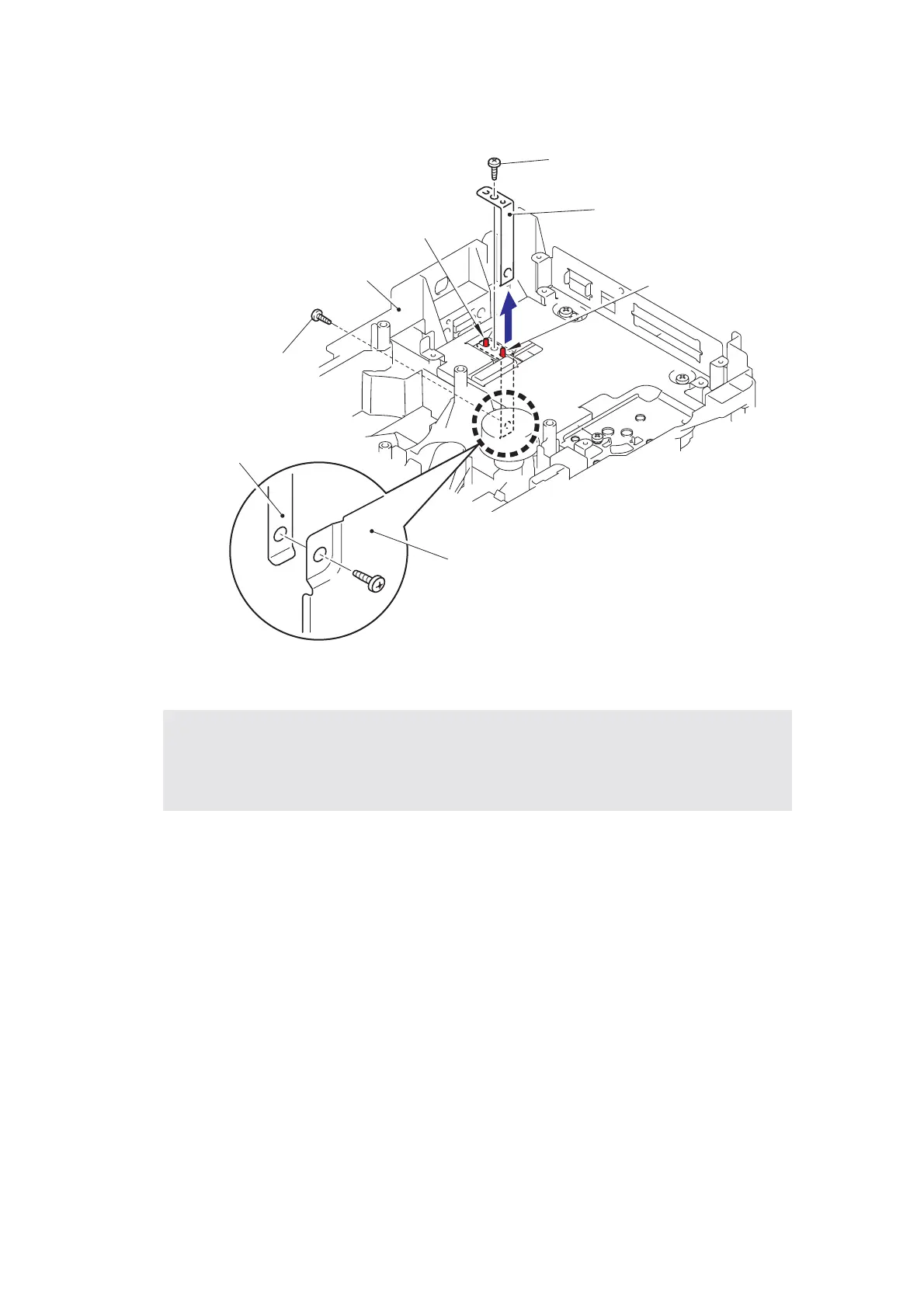

Fig. 5-64
Assembling Note:
• When assembling the Plate, ensure to put the Plate into the base plate LV.
• When assembling the Plate, secure the screw at the Frame L side first, then the screw
at the base plate LV side.
Taptite, bind B M4x12
Taptite, bind B M4x12
Frame L
Base plate LV
Plate
<Back side>
Plate
Pin
Pin
<Back side>
