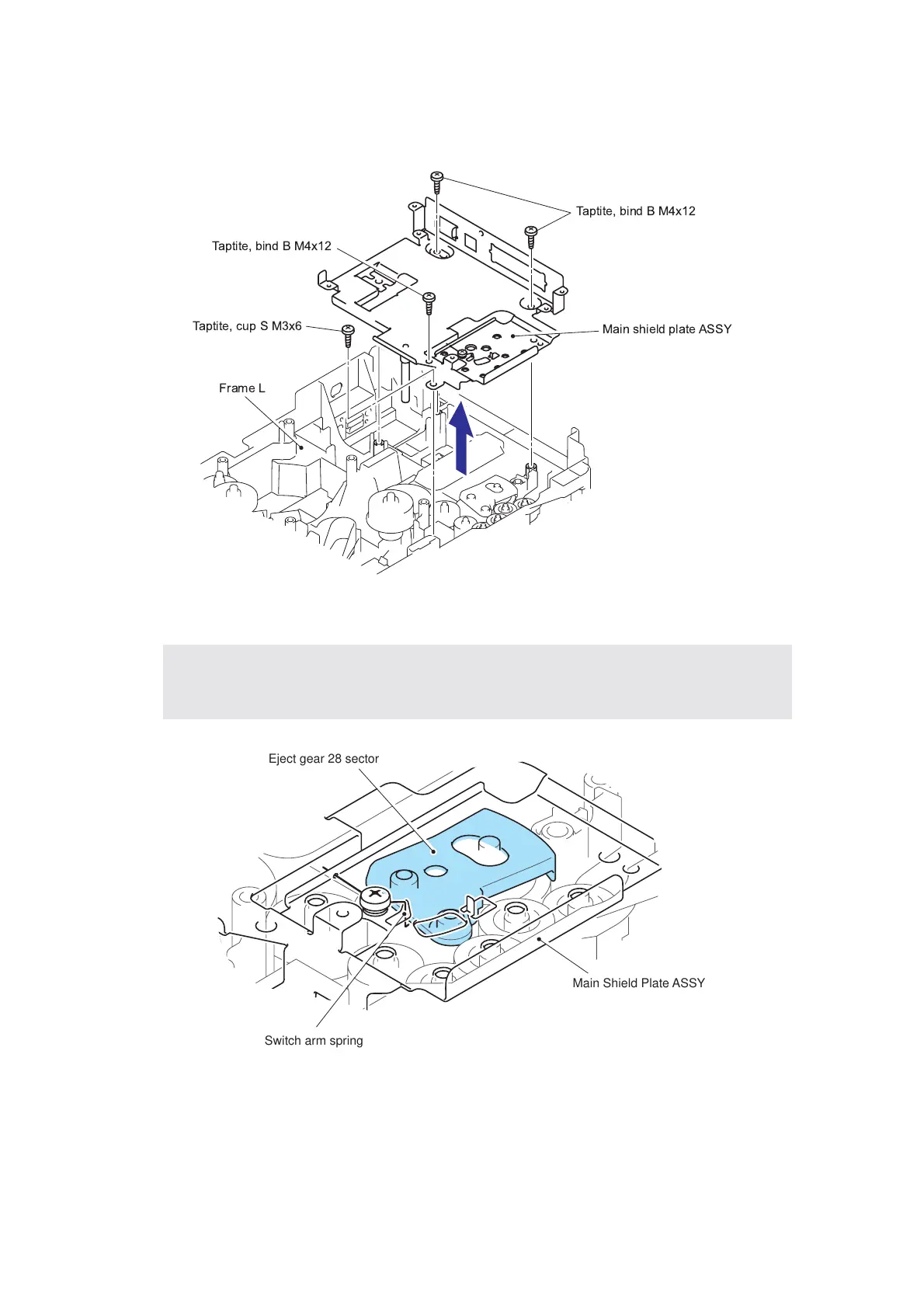

(3) Remove the three bind B M4x12 Taptite screws and cup S M3x6 Taptite screw, and then
remove the Main shield plate ASSY.
Fig. 5-65
Fig. 5-66
Assembling Note:
• Hang the Tip of the Switch arm spring of the Main shield plate on the Eject gear 28
sector.
   
   
   
   
 
Main Shield Plate ASSY
Eject gear 28 sector
Switch arm spring
