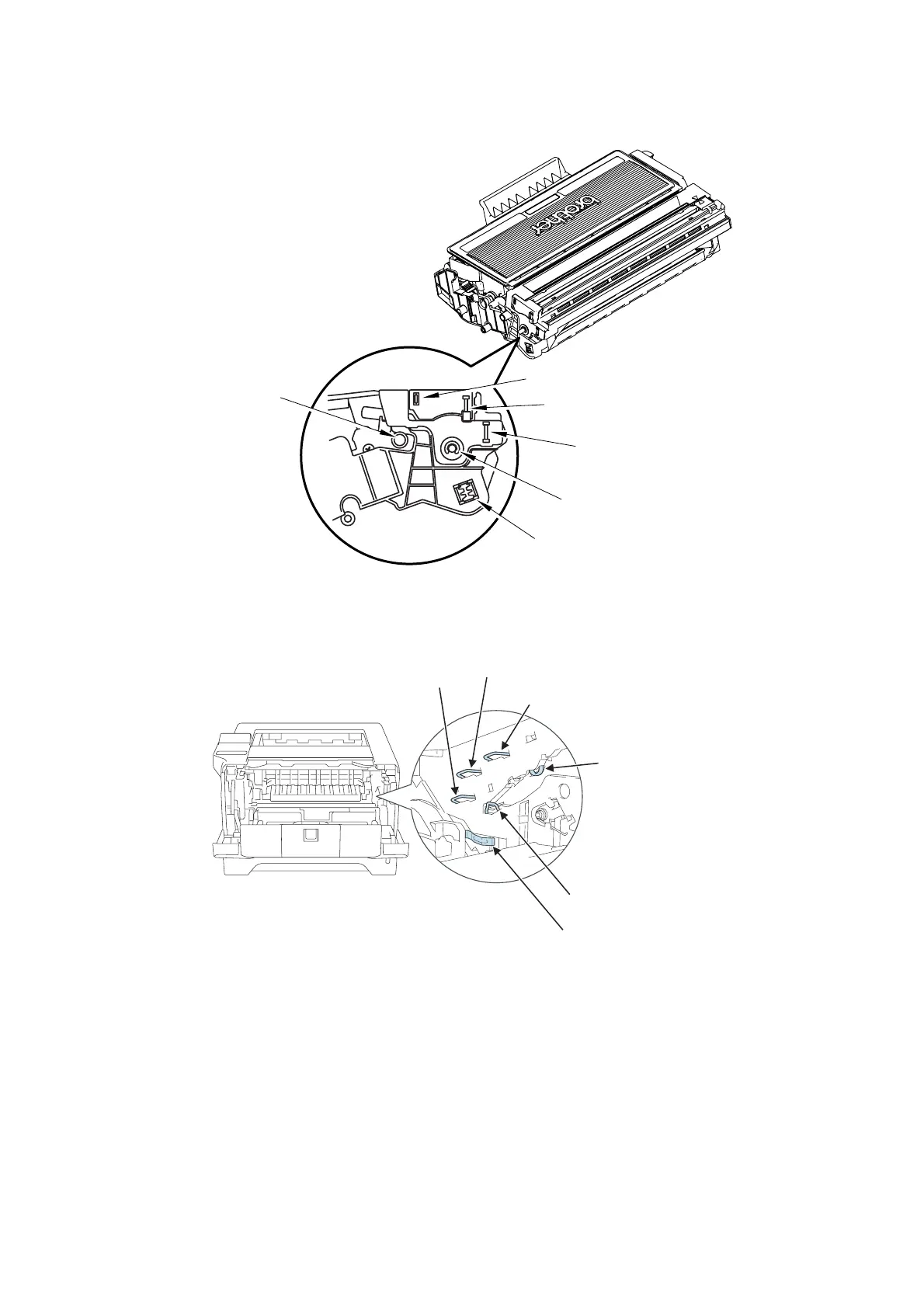

■ Electrodes location of the toner/drum unit
Fig. 3-2
■ Electrodes location of the machine
Fig. 3-3
<How to clean the electrodes>
Turn off the power switch. Unplug the machine from the AC power outlet, and leave the machine
for a few minutes. Then, wipe the electrodes above carefully with a dry lint-free cloth. Be
careful not to change the shapes of the electrodes.
Toner/Drum Unit
(5) Grid
(7) Cleaner
(3) Charge
(4) Developer roller
(6) Transfer roller
(1) Exposure drum
Developer roller
Charge
Grid
Cleaner
Transfer roller
Exposure drum
