Brother MFC-J2330DW Service Manual

Confidential
2-72

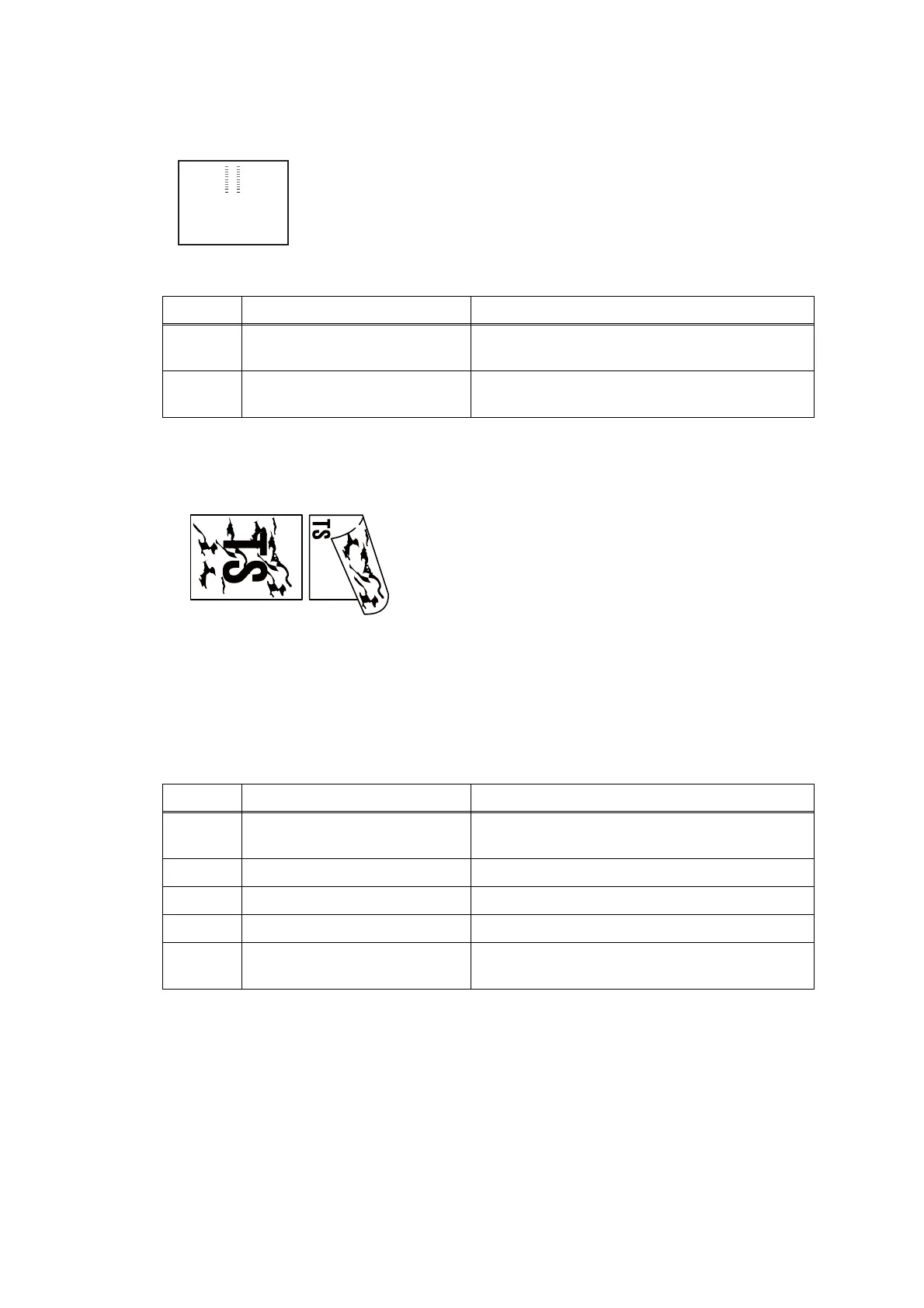

■ Traces of paper pull-in roller
■ Dirt on the paper
< User Check >
- Check whether the recording paper being used is within
the specification.
- Clean the paper pull-in roller.
- Clean the MP paper pull-in roller.
Step Cause Solution
1 Paper pull-in roller defective Replace the paper feed arm frame ASSY or LT
frame ASSY.
2 MP paper pull-in roller
defective
Replace the MP tray ASSY.
< User Check >
- Check whether the recording paper being used is not folded.
- Check whether the recording paper being used is within the specification.
- Clean the related rollers by printing blank paper.
-
Clean the platen.
Step Cause Solution
1 Maintenance unit stained Clean the maintenance unit.
(refer to Fig. 2-11 (2-64))
2 Paper feed roller stained Replace the paper feed roller.
3 Paper ejection roller stained Replace the paper ejection roller.
4 Switchback roller stained Replace the switchback roller.
5 Foreign materials in the
reverse side of the head
Remove foreign materials.

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
