Brother MFC-J2330DW Service Manual

3-9
Confidential

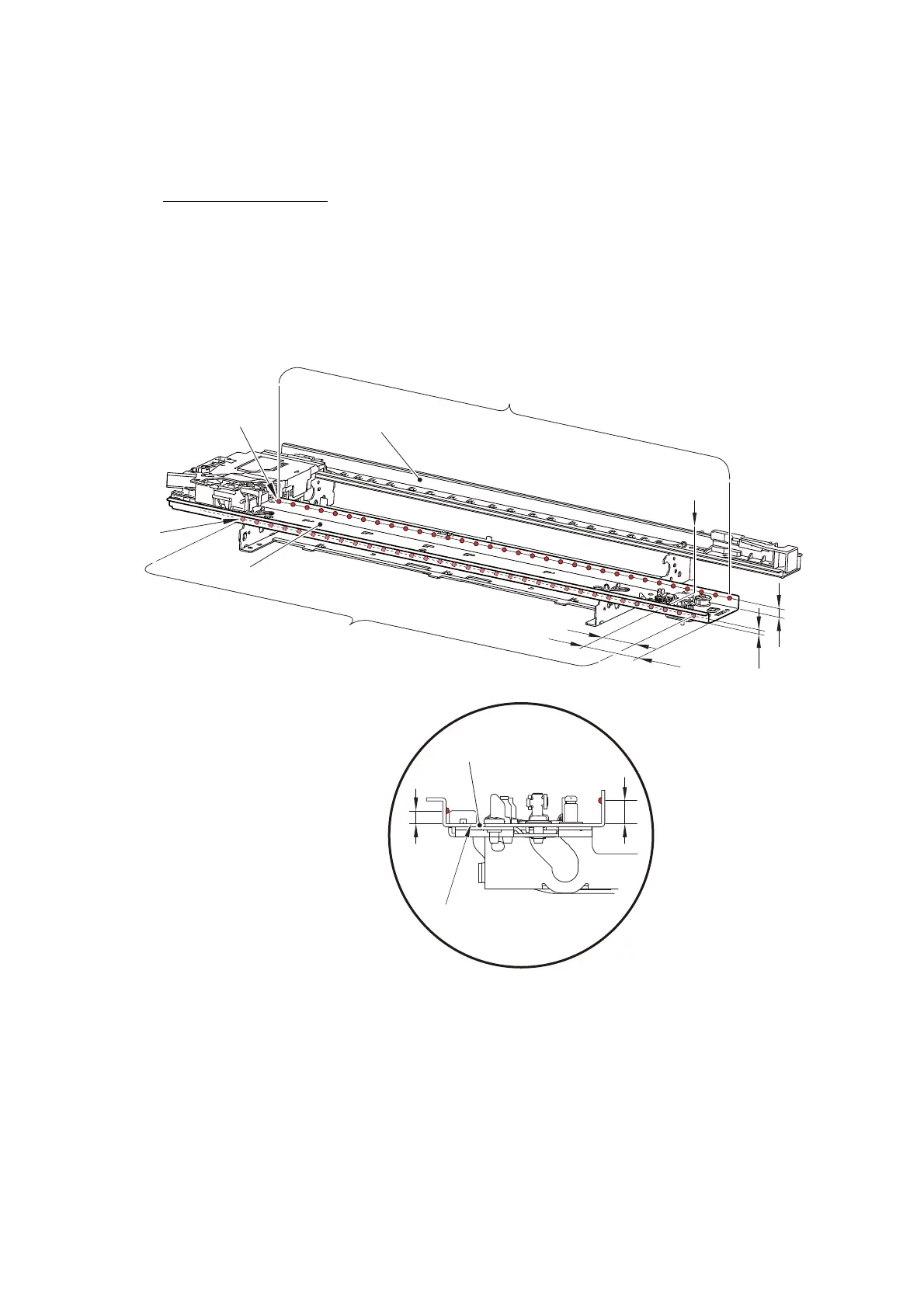

 CR frame (inner sides of the front and rear upright edges)
Apply a 2 mm diameter ball of grease (FLOIL BG-14NSU) to each of the 66 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol
soaked cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the
applied grease on the CR guide rail and CR frame.
14.14 interval x 32
14.14 interval x 32
Home position of
CR frame
Apply grease here.
CR frame
CR guide rail
A: 4.2±0.5
B: 7.15±0.5
(mm)
45.35
30.5
head/carriage unit
Apply
Reference on the sliding surface Z
A
B
grease
here.

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
