Brother MFC-J2330DW

3-10
Confidential

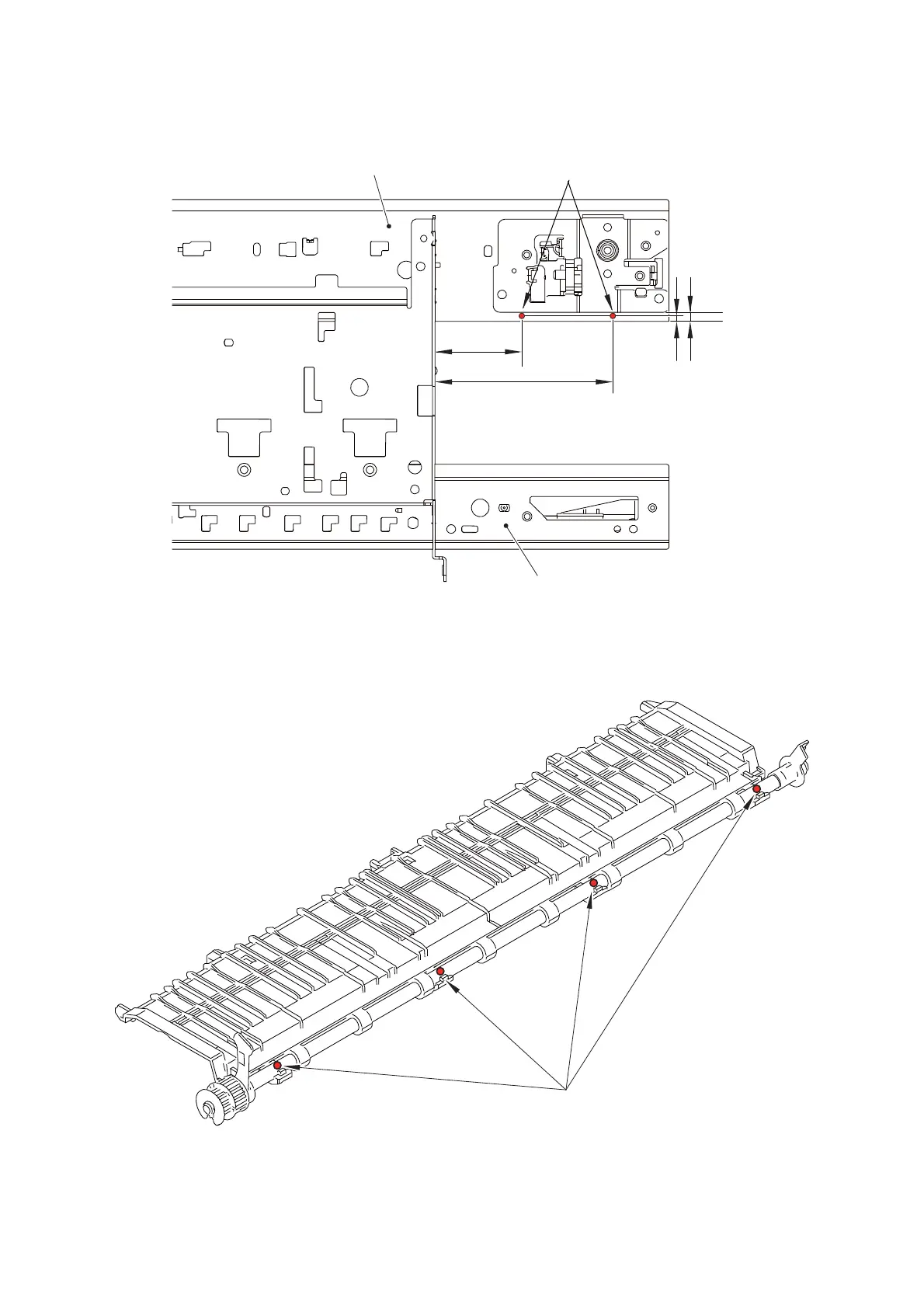

 CR frame (bottom face)
 Paper ejection roller
Apply grease here.
CR frame
CR guide rail
● : Grease (1 mm diameter ball)
(mm)
(1.9)
2.1±0.5
89±1
40±1
Apply grease here.
