3-15
Confidential

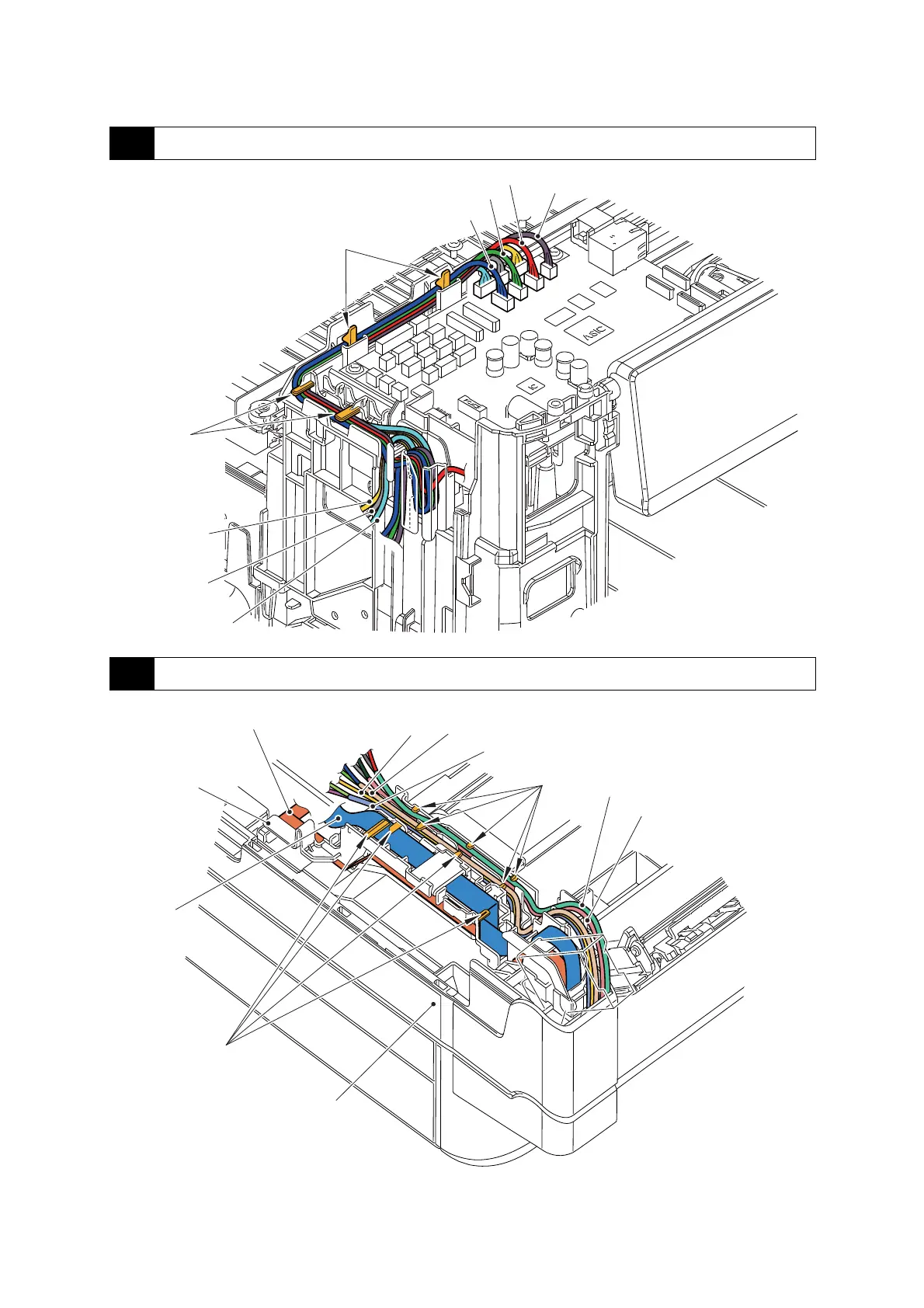

4 Main PCB
5 ADF unit/Document scanner unit
Cable guide
Cable guide
T1 detection sensor harness
Switchback sensor harness
Registration sensor harness
PF encoder sensor harness
T2 detection
sensor harness
T2 paper remaining
sensor harness
T1 paper remaining
sensor harness
Cable guide
FB motor harness ASSY
First side CIS flat cable
ADF motor harness
MP paper detection sensor harness
Cable guide
Document scanner unit
Harness holder
ADF sensor harness
ADF cover
sensor harness
Second
side CIS
flat cable
