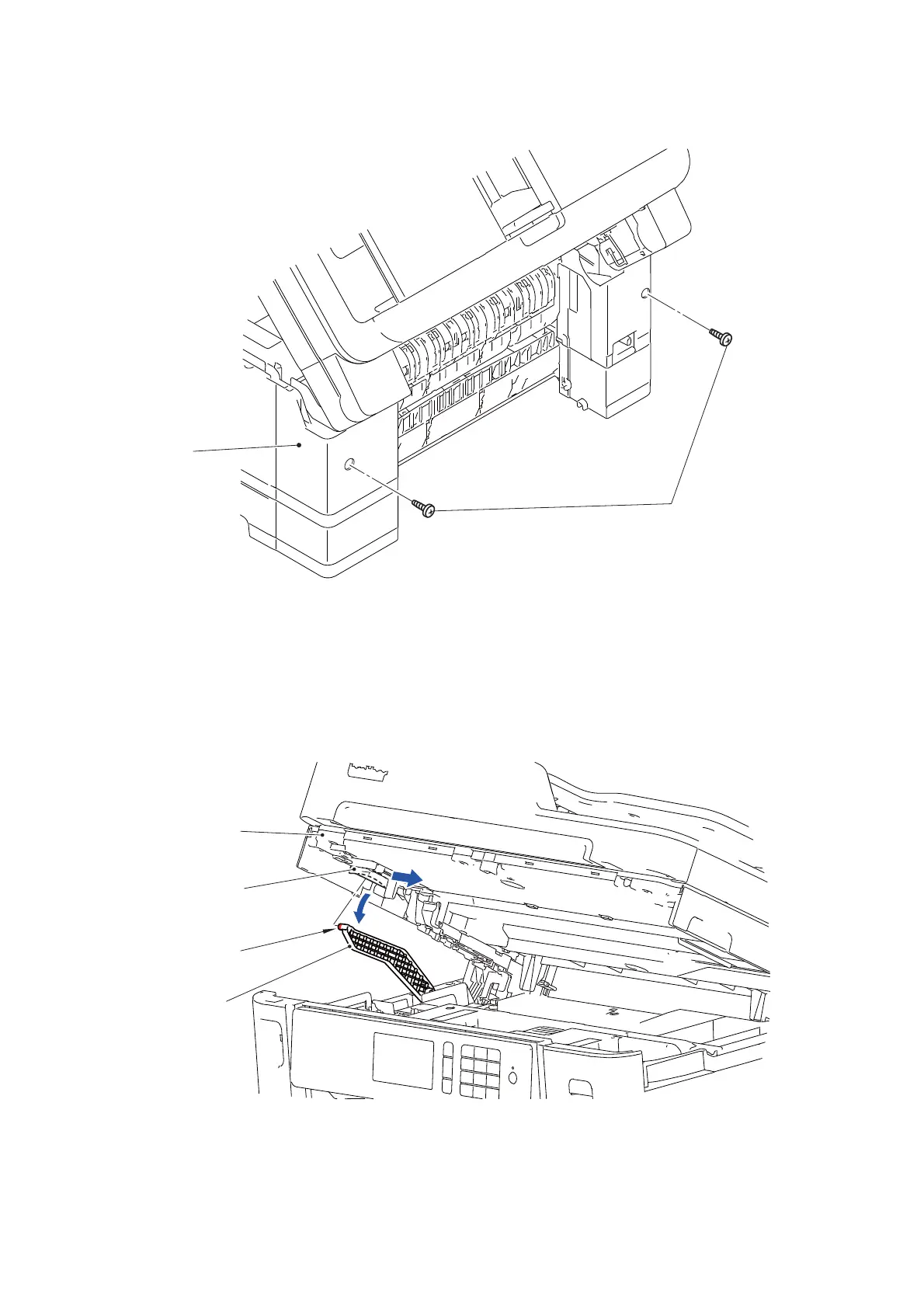

(7) Remove the two screws (TAPTITE BIND B M4x12) from the Main body.
Fig. 3-14
(8) Slightly close the Document scanner unit.
(9) Bend the section A of the Document scanner unit and remove the Pin of the FB
stopper from the Document scanner unit.
Fig. 3-15
TAPTITE BIND
Main body
B M4x12
FB stopper
Pin
“A”
Document
scanner unit
