(13)Release the two Hooks and remove the Document scanner side cover L from the
Document scanner unit.

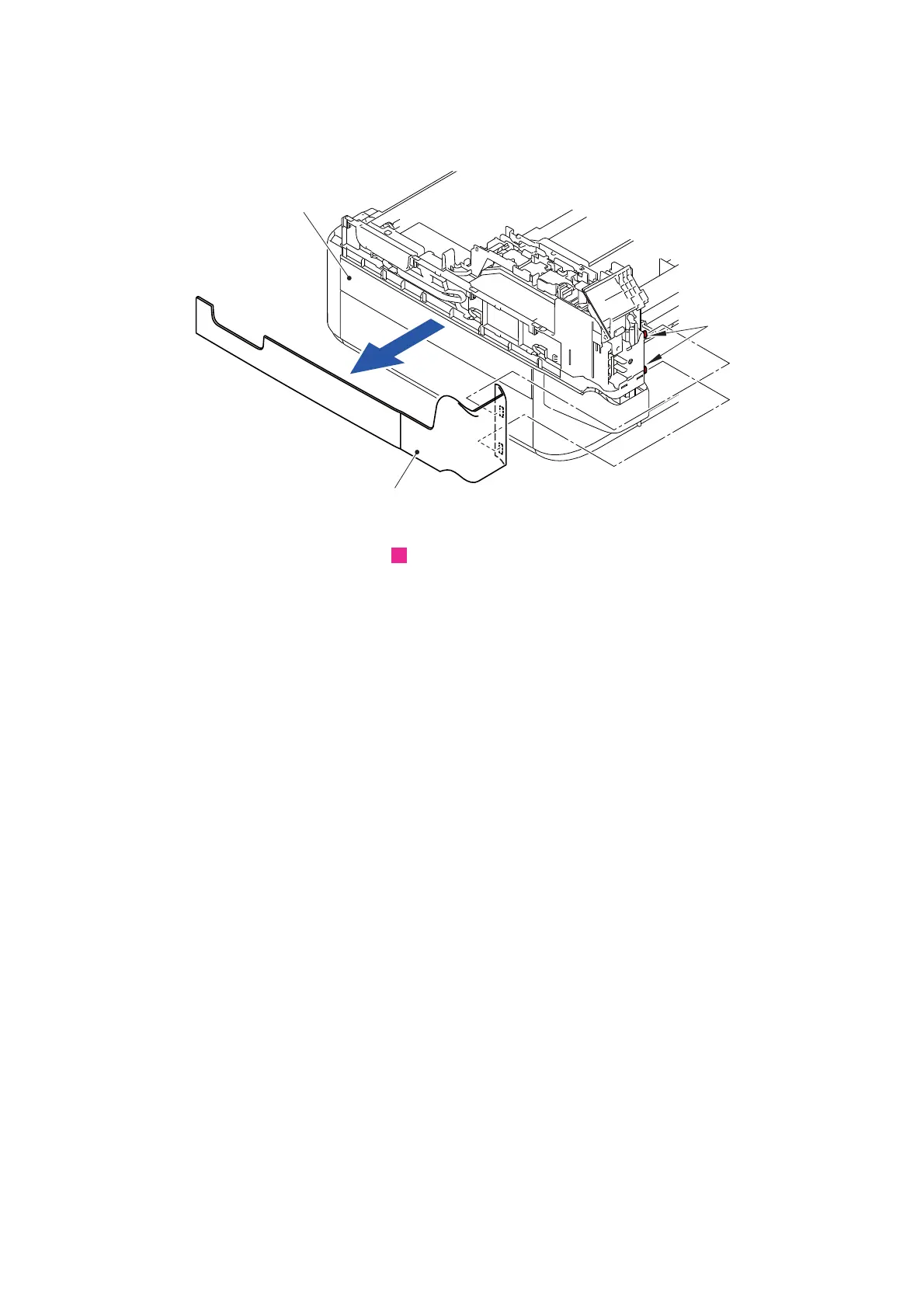

Fig. 3-18
Routing of harnesses: See “ ADF unit/Document scanner unit”.
Document scanner side cover L
Hooks
Document scanner unit
