Brother MFC-J2330DW Service Manual

3-53
Confidential

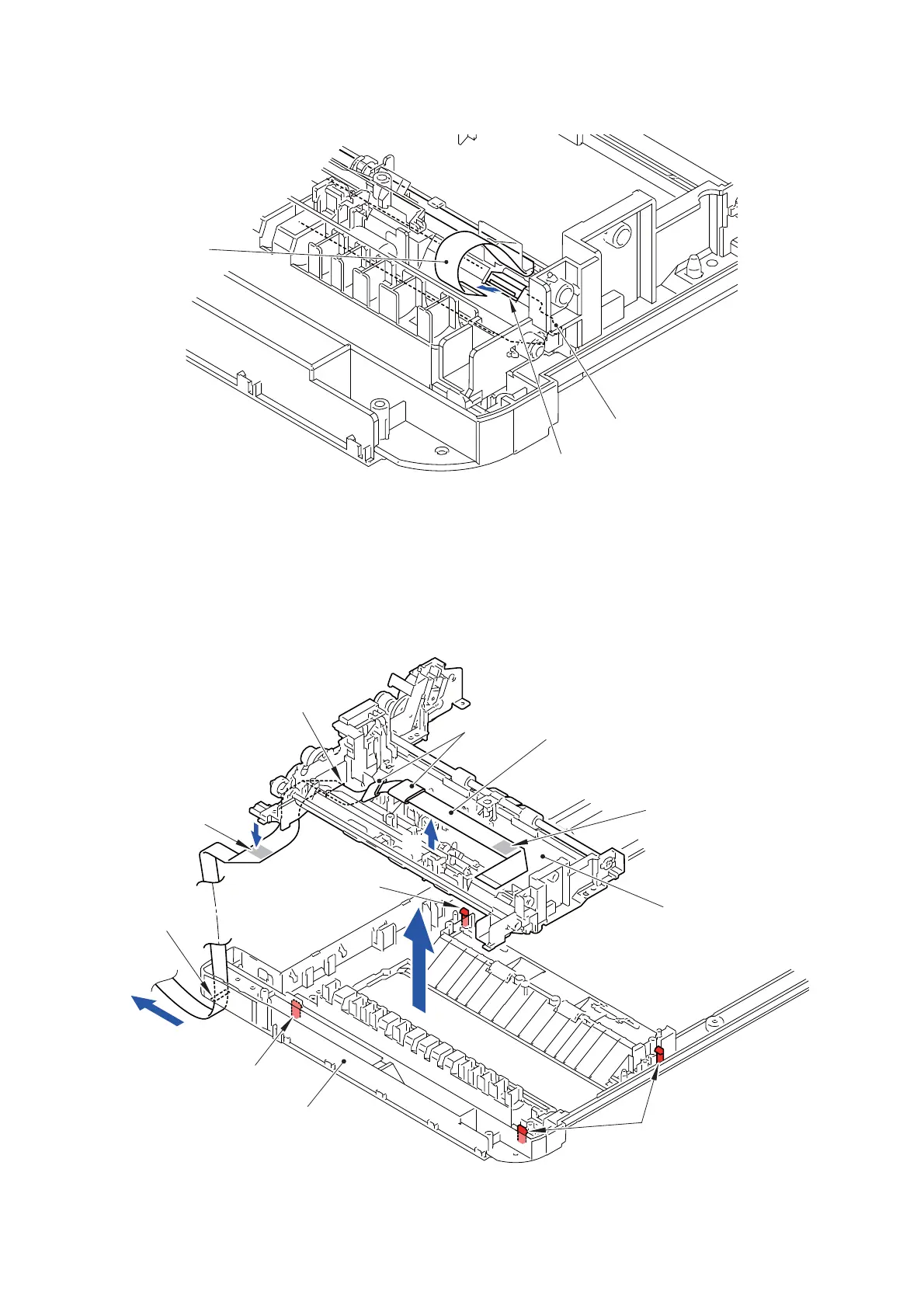

(6) Disconnect the Second side CIS flat cable from the Second side CIS unit.
Fig. 3-40
(7) Release the four Hooks and lift the Lower doc chute ASSY slightly.
(8) Remove the two Double-sided adhesive tapes and pull out the Second side CIS
flat cable from two Flat cores, the Lower doc chute ASSY and Document cover
base ASSY.
Note: Skip this step when you replace the Second side CIS unit only without replacing
the Second side CIS flat cable.
Fig. 3-41
Second side
Second side CIS unit
Connector
CIS flat cable
Lower doc chute ASSY
Second side CIS flat cable
Document cover base ASSY
Hole
Double-sided
Double-sided
7
8a
8b
Hooks
adhesive tape
Hole
Hook
adhesive tape
Hook
Flat cores

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
